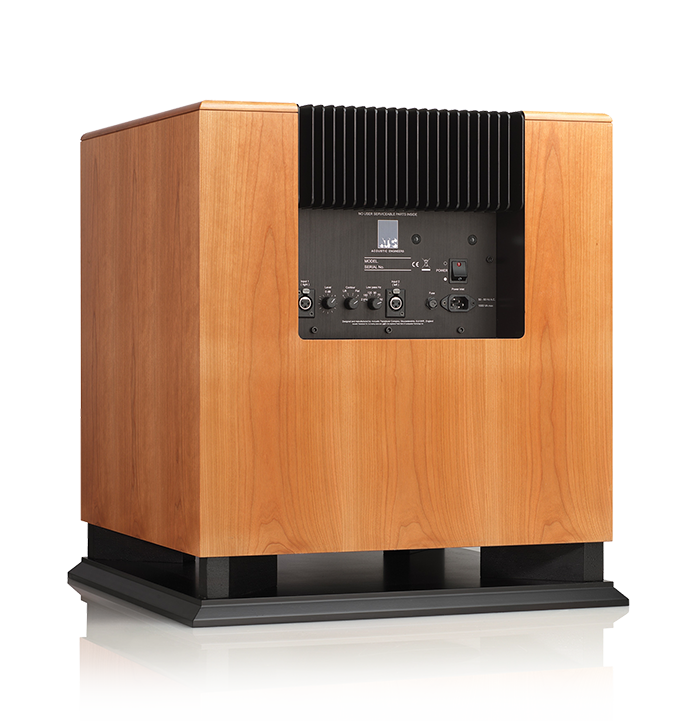

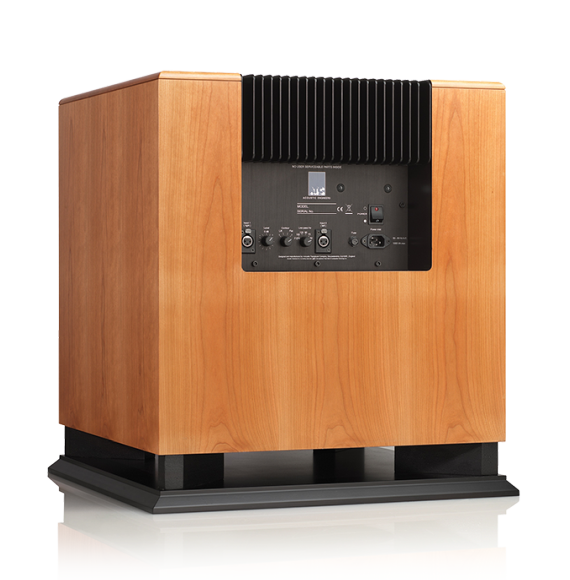

ATC C6 Sub


ATC C6 Sub Features:

  • ATC 15″/ 375mm Super Linear bass driver
  • Massive motor assembly
  • In-house, hand wound precision flat wire coils
  • ATC 650 Watt Class A (to 2/3 max power) amplifier
  • Active filters and overload
  • 6 Year warranty
  • Any veneer to order. Featured veneer:Yew
ATC 375mm SL Super Linear Bass
ATC 15″/ 375mm Super Linear bass driver


Driver: LF 15″/ 375mm SL bass driver
Frequency Response (-6dB): 18Hz–250Hz
Max SPL: 115dB
Input Connectors: 2 x Male XLR
Input Sensitivity: 1V Balanced
Input Impedance: >10k Ohms
Amplifier Output: LF 650 Watts RMS
Dynamic: 1000 Watts
Overload Protection: Active FET momentary gain reduction
Gain Control Range: ±6dB
Contour Equaliser: 6dB lift @ 40 – 60Hz
Filter Characteristics: 50Hz, 60Hz, 70Hz, 80Hz, 90Hz low pass second order critically damped
Power Requirements: 100, 115, 230V (factory set for territory), 50/60Hz
Dimensions (HxWxD): 624 x 580 x 580mm
Weight: 63.6kg
Veneer: Any veneer to order

ATC Subwoofers:
ATC C6 Sub ATC C4 Sub ATC C1 Sub
