ATC SCA2

AudioStereo logo

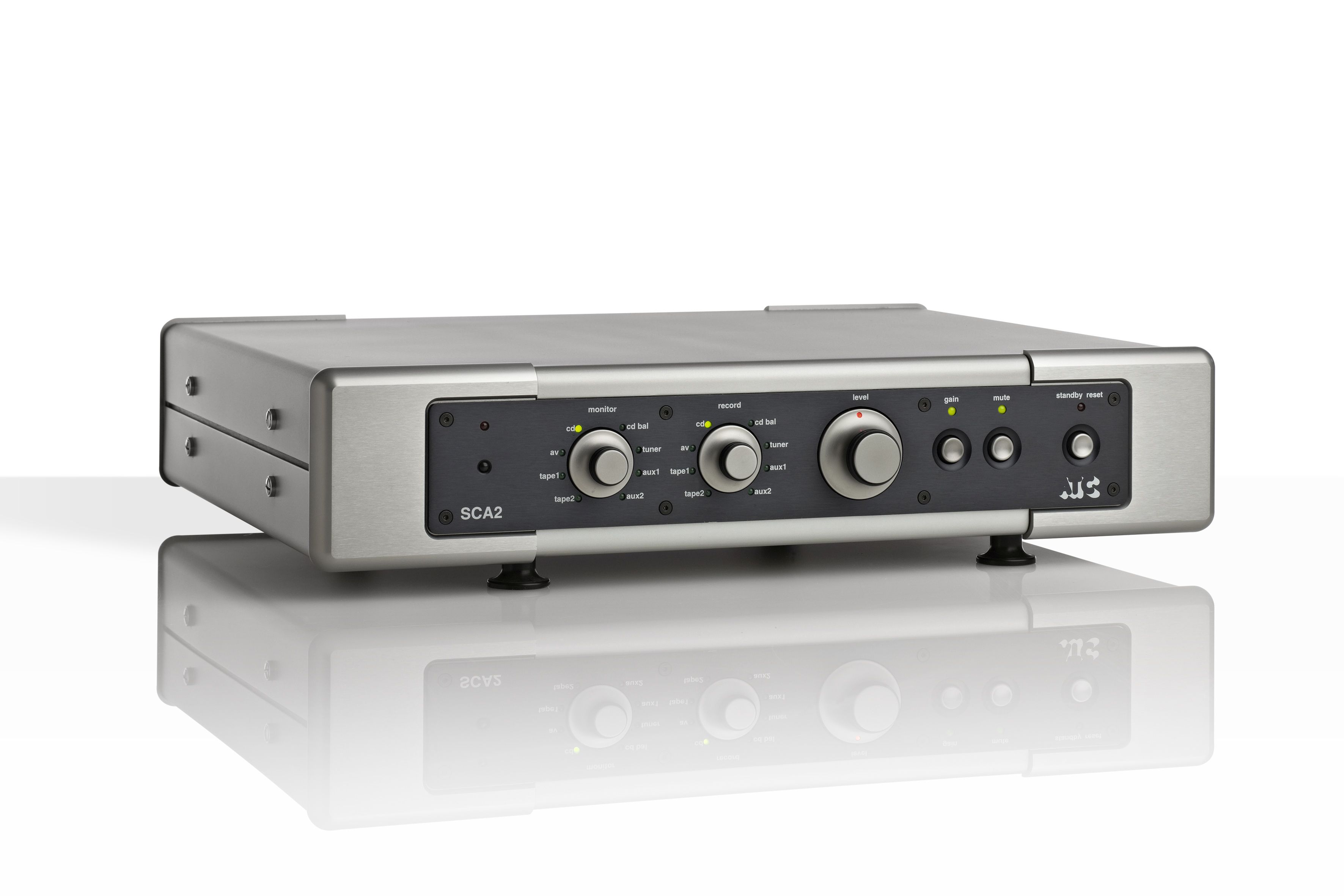

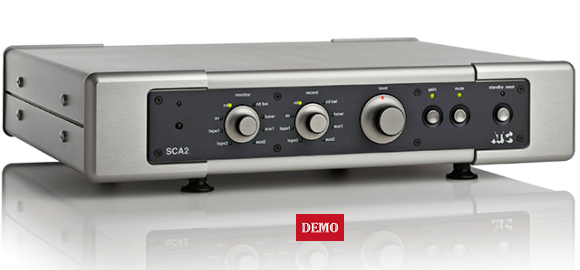

ATC SCA2 stereo preamplifier hi-end

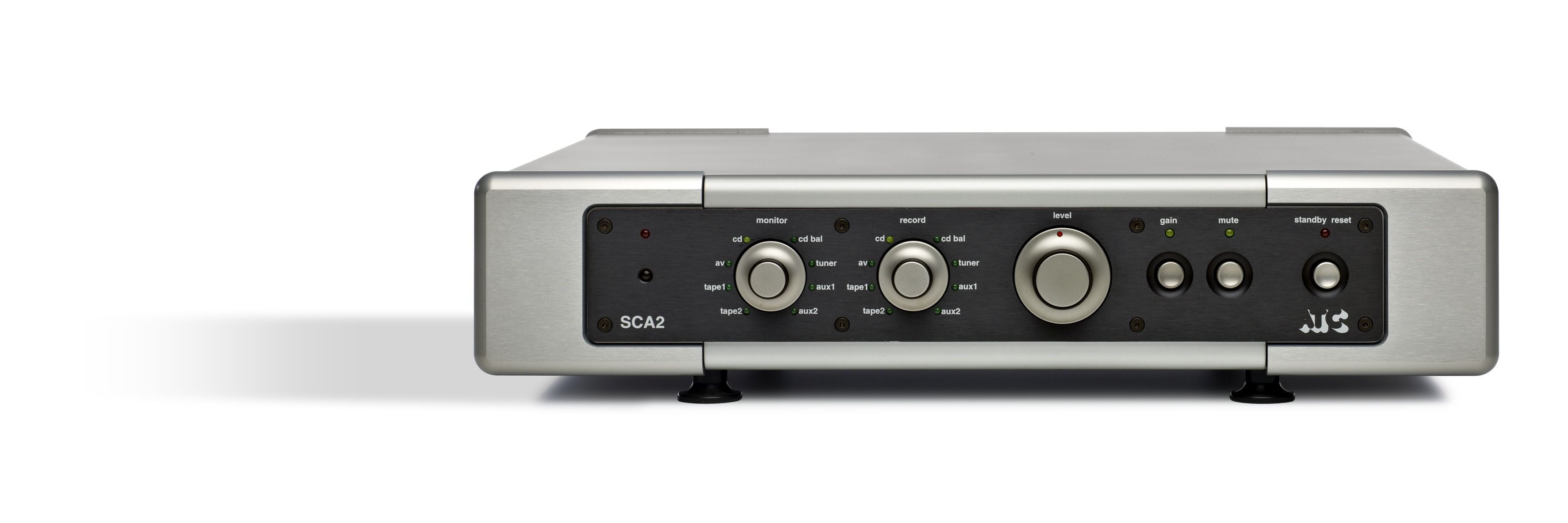

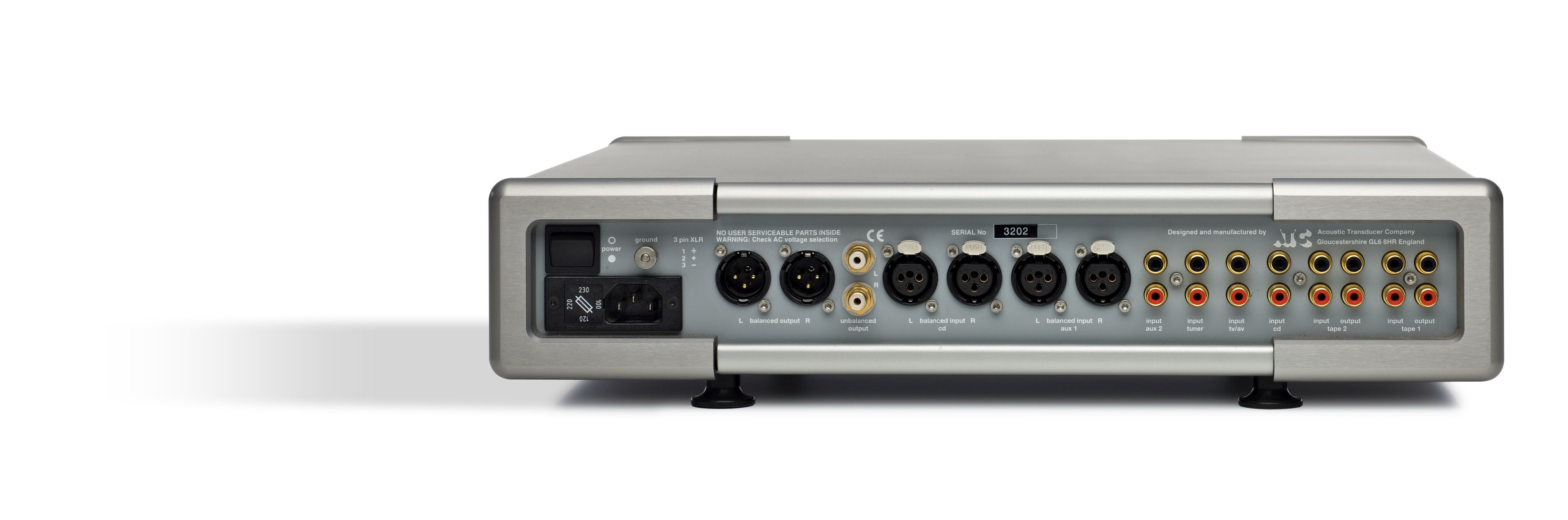

ATC SCA2 front ATC SCA2 back

£7300

ATC SCA2 Features:

  • Fully discrete Ultra-Low noise circuitry throughout
  • Optional Ultra-Low Noise discrete RIAA phono stage
  • Output:
    • Balanced main left and right output
    • Unbalanced main left and right output
    • Two unbalanced tape record outputs
  • Input:
    • Two balanced XLR inputs
    • Six unbalanced RCA phono style inputs (2 as part of tape record/listen sets)
  • Hand built in the UK
  • 6 year warranty



Specifications

Pre-amplifier
Frequency Response (-3dB) : DC - 500 kHz
Distortion (1kHz) : <0.0005% / 106dB, 1V into 600 Ohms
Line Input sensitivity for 1V Output : 230mV Balanced, 115mV Unbalanced
Maximum Output Level : XLR 17.5V r.m.s., RCA 8.5V r.m.s.
Input Impedance : RCA (Unbalanced) 20k Ohms, XLR (Balanced) 2k7 Ohms per leg
Output Impedance : 10 Ohms
S+N/N Ratio : IEC “A” >108dB, DIN >104dB, Wide Band >95dB
Absolute Phase : Phono Zero Degrees, XLR Zero Degrees, Pin 2 Hot
Physical
Dimensions (HxWxD) : 100 x 440 x 360mm
Weight : 9.5kg



ATC SCA2 manual
Manual
