ATC SCM 12 Pro

AudioStereo logo
ATC SCM 12 Pro
ATC SCM 12 Pro side ATC SCM 12 Pro front ATC SCM 12 Pro front

£1685

ATC SCM 12 Pro - BBC engineer, Alistair McGhee for Audio Media International magazine review

ATC SCM 12 Pro

ATC SCM 12 Pro - BBC engineer, Alistair McGhee for Audio Media International magazine review
  • So what do the ATC SCM 12 Pros sound like? Very, very good. They excel in dynamic stability – loud things go loud without treading all over quiet things, and if your percussionist likes sly effects and cheeky delicacies, you will hear them. If your drummer mixes rock thunder with jazz accents you will smile – and if she makes it swing you will hear it swing. The beat tightens and rhythmic intentions become clear. Layers in EDM will be laid bare, synth tones revealed, backing vocals resolve out of the soup of lesser systems.
  • The bottom-end is a lesson in control – less is more when bass has actual notes, and the notes have actual character! But it is the mid-band clarity that stands out for me – vocals just sound more ... more like the singer, and everywhere a clarity that makes much of the competition sound veiled.
  • “I have been massively impressed by the SCM 12 Pro – defying mere fashion it’s an evolutionary product from a firm that refuses to compromise engineering decisions for marketing acceptability. They are professional tools designed for a working studio environment. The finish is utilitarian but the sound extraordinary, and if you need compact monitors that tell the unvarnished truth about your audio, start here.” BBC engineer, Alistair McGhee for Audio Media International magazine


ATC SCM 12 Pro & ATC P1 Pro - Phil Ward, Sound on Sound ATC SCM 12 Pro & ATC P1 Pro - Phil Ward, Sound on Sound Magazine reviewATC SCM 12 Pro & ATC P1 Pro - Phil Ward, Sound on Sound Magazine review

ATC SCM 12 Pro & P1 Pro

ATC SCM 12 Pro & ATC P1 Pro - Phil Ward, Sound on Sound
  • Finding a path through all the conflicting constraints when designing a monitor is akin to making the pieces of a jigsaw fit together, and when you get it right, everything snaps into focus. The SCM12 Pro had that from the very start.
  • The foundation of the SCM12 Pro is its low-frequency performance: typically closed-box with its lack of overhang and reassuring security of pitch, whatever the volume level, but with the added quality that comes from driver engineering that’s a level or two above run-of-the-mill and can play surprisingly loud.
  • But it’s not just at the bass end where the SCM12 Pro excels. It has a natural, uncoloured, ‘hear-through’ mid-range quality and unforced detail in the way it presents high-frequency information, which means audio is reproduced with the minimum of speaker artifacts imprinted upon it.
  • Stereo imaging was well focussed with good depth, and there were no embellishments or attention-drawing emphases anywhere, just accuracy and consistency. It’s exactly what’s needed from a mix tool.
  • The P1 Pro passed the test very quickly. It is clearly an extremely high-performance power amplifier — perhaps slightly warmer in presentation than the Naim amp I’m used to, but certainly right up there in terms of bandwidth, detail, clarity, imaging and that sense one gets with a genuinely powerful amplifier that volume level is effectively unlimited.
  • The P1 Pro is ATC’s entry-level power amplifier and is specified at 150 Watts per channel into 8Ω. The amplifier is configured as a dual-mono unit with completely separate power supply and amplification modules for each channel.
  • “As you can probably tell, I really like the SCM12 Pro. I think it’s a genuinely fine nearfield monitor, and given the relatively low price for the level of engineering involved, it is something of a bargain.” Phil Ward, Sound on Sound Magazine

* * *

ATC SCM 12 Pro: compact high performance passive 2-way studio monitor

As an all-new design, the SCM 12 Pro proffers ATC’s acclaimed performance at a lower price point without compromising component quality and achieves this in a more compact, installation-friendly footprint ideally suited to nearfield monitoring as well as multichannel music and post-production applications.

“Anyone who has been waiting for an ATC nearfield with a smaller footprint, that is more easily installed, or that is more affordable, yet still delivers undiminished ATC performance, then the SCM12 Pro could be for them.” So says ATC Technical Sales Manager Ben Lilly, before adding: “ATC R&D Manager Richard Newman has poured the same knowhow, time, and passion into this new model that has made the rest of the professional product line so successful. Users will find that productions completed using the SCM12 Pro will translate beautifully to other systems and that their incredibly low distortion makes listening to them a pleasure — even after long hours in the studio.”

Though the SCM 12 Pro is the most affordable model in the professional range of loudspeakers, the monitor makes use of the ATC’s celebrated drive units for both the mid/bass and tweeter, both being meticulously hand built at the UK facility.

ATC was founded on a principle of engineering excellence, and that principle still defines our products today. Given the right opportunities, ATC products will deliver exceptional audio performance, but the opportunities will only arise from careful and thoughtful installation and use.

The premise on which ATC began is a simple one – and one that, in many respects, is still true today: hi-fi loudspeakers tend to be detailed and accurate, but of limited dynamic range, while professional monitor speakers tend to express the opposite character.

ATC products were designed from the outset to offer the best of both. It’s an easy concept to describe, but surprisingly difficult to engineer. The difficulty inherent in designing such loudspeakers is one of scale. Hi-fi levels of accuracy and detail call for lightweight moving parts and delicate engineering. Professional monitor levels of performance, however, demand far more robust components engineered to survive the rigours of high level use for extended periods.

The only way to combine the two is through precision engineering of a class and scale more often associated with aerospace or motorsport. But the results are worth the effort and the cost. ATC loudspeakers, with their unique in-house designed drivers, combine the best of hi-fi and professional to devastating effect.

By selecting ATC, you join a group of music lovers, professional audio engineers, studios and musicians across the world that understand and value the engineering that goes into an ATC product - and the sound that comes out.

ATC SCM 12 Pro & ATC SIA2-100 integrated

ATC SCM 12 Pro Features:

  • Compact high performance 2-way studio monitor
  • Ideally suited to:
    – critical near-field listening applications in all control rooms
    – LCR surround monitoring in small-to-medium control rooms
  • Proprietary ATC 195mm CLD midbass
  • Proprietary ATC 25mm Dual Suspension Dome tweeter
  • 6 year warranty
ATC SCM 12 Pro Dome tweeter ATC SCM 12 Pro CLD midbass
25mm Dual Suspension Dome Tweeter 195mm CLD Mid/Bass

Specifications

Drivers: LF ATC 195mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm), HF ATC 25mm dual suspension Soft Dome (SH25-76 6 Ohm)
Amplitude Linearity ±2dB:  80Hz – 16kHz
Cut-off Frequencies (-6dB freestanding, no room gain): 56Hz – 22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Maximum Continuous SPL: 108dB (per pair @ 1m)
Crossover Frequency: 2.2kHz
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 400 x 238 x 235mm
Weight: 11kg (per cabinet)

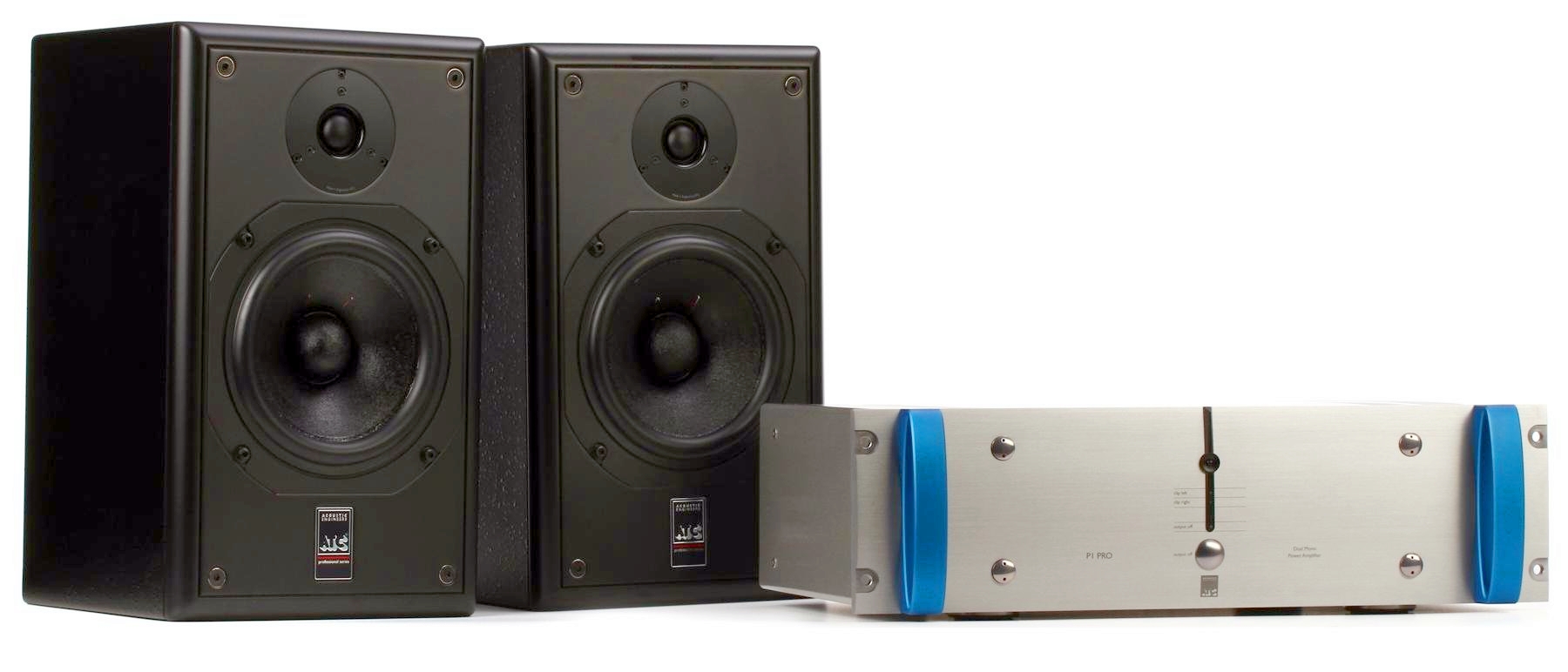

ATC SCM 12 Pro loudspeakers and ATC P1 pro power amplifier
ATC SCM 12 Pro loudspeakers and P1 pro power amplifier

ATC SCM 12 Pro datasheet ATC SCM 12 Pro user manual
Datasheet Manual
