ATC SCM 50 SE Features:

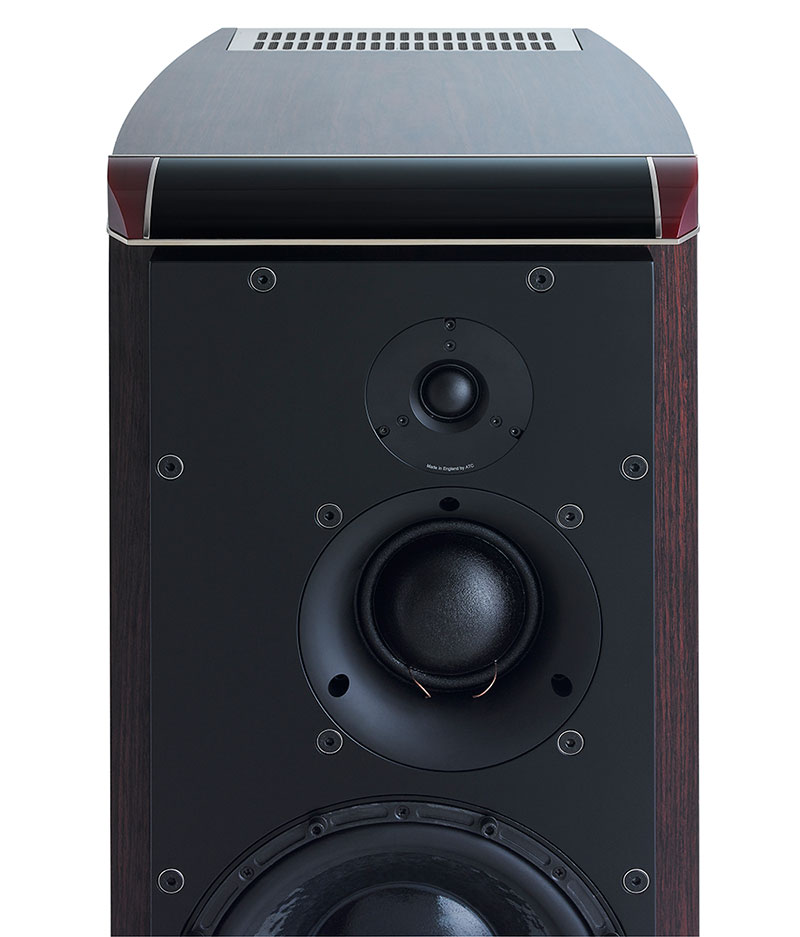

• New ATC designed and built 25mm Soft Dome tweeter model SH25-76S
• The unique ATC 75mm Soft Dome midrange model SM75-150S
• The latest 250mm short coil super linear magnet Bass Driver model SB75-234SL
• Fully discrete amplifier for each drive unit combined to create a Tri-amplifier of 350 watts with active crossover filters, phase correction and overload protection
• Accurate timbre, wide dispersion and perfect imaging
• Any veneer to order
• Choice of top brow finish and colour detail
• 6 year warranty

25mm Dual Suspension ‘S-Spec’ Tweeter	75mm Dual Suspension Super Dome Midrange

250mm SL Super Linear Bass

Specifications

Drivers:HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 250mm ATC Super Linear
Frequency Response (-2dB): 70Hz-17kHz
Frequency Response (-6dB): 38Hz-25kHz
Matched Response: +/- 0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz and 3.5kHz
Connectors: Male XLR
Filters: All active
Amplifier Output: 200w LF, 100w Mid, 50w HF
Suitable Preamps:  ATC SCA2, CDA2 Mk2, CA2 Mk2
Loudspeaker Dimensions (HxWxD): 1045 x 330 x 475 mm
Weight: 64.5kg

Passive version

Sensitivity: 87dB @ 1W @ 1m
Loudspeaker Dimensions (HxWxD): 1045 x 330 x 481 mm
Suitable Amps: 100 to 1500 Watts (see ATC P2)
Weight: 59.5kg
