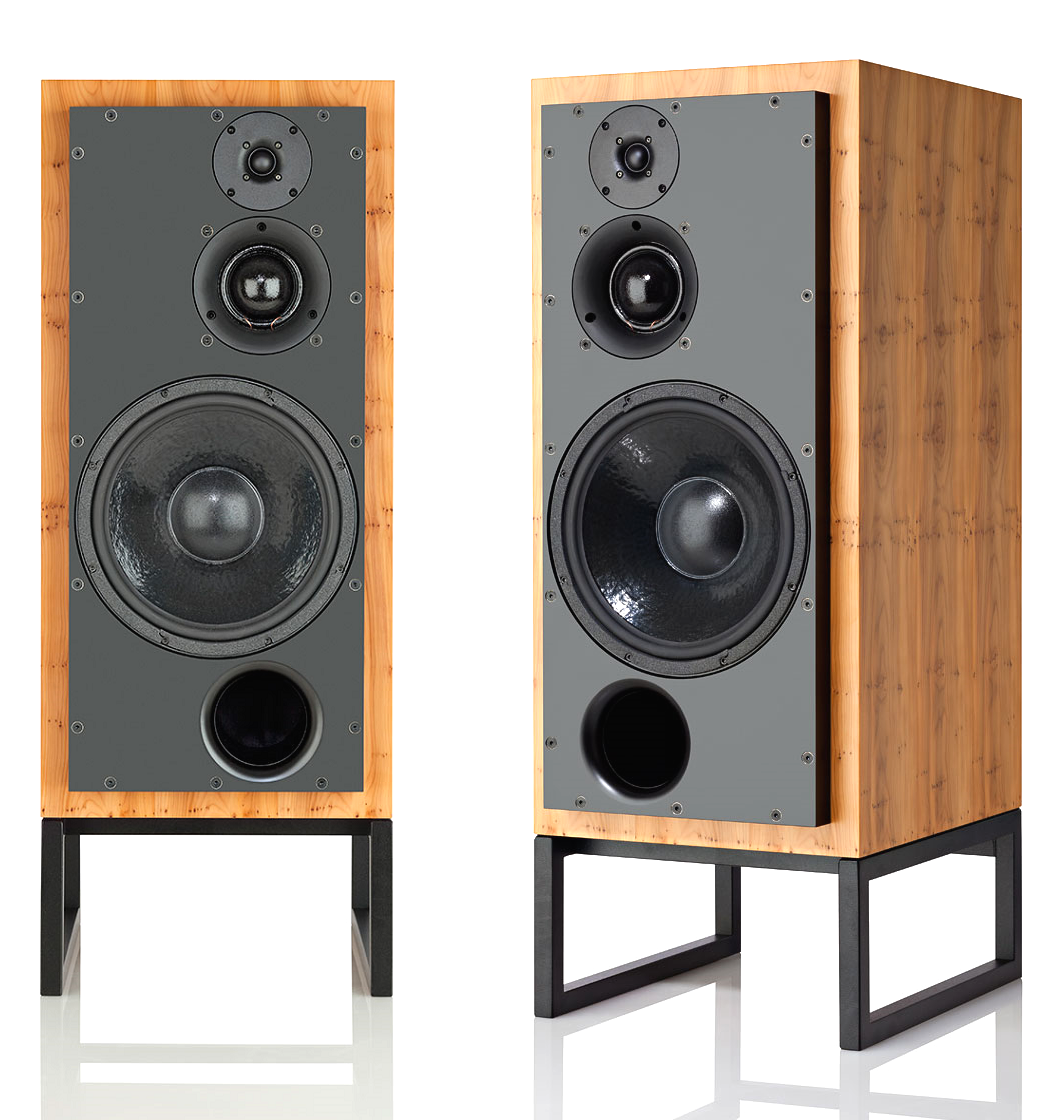

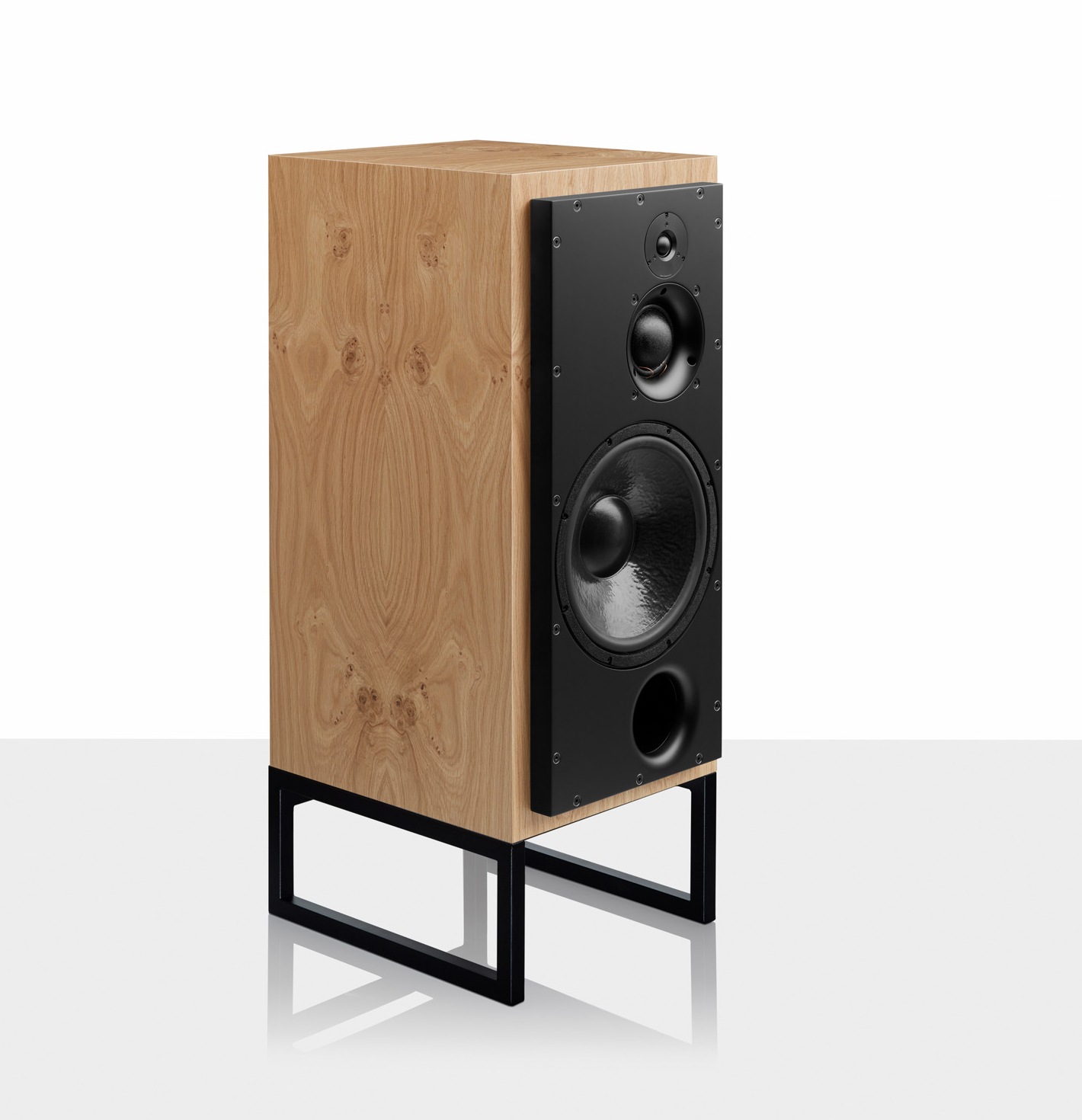

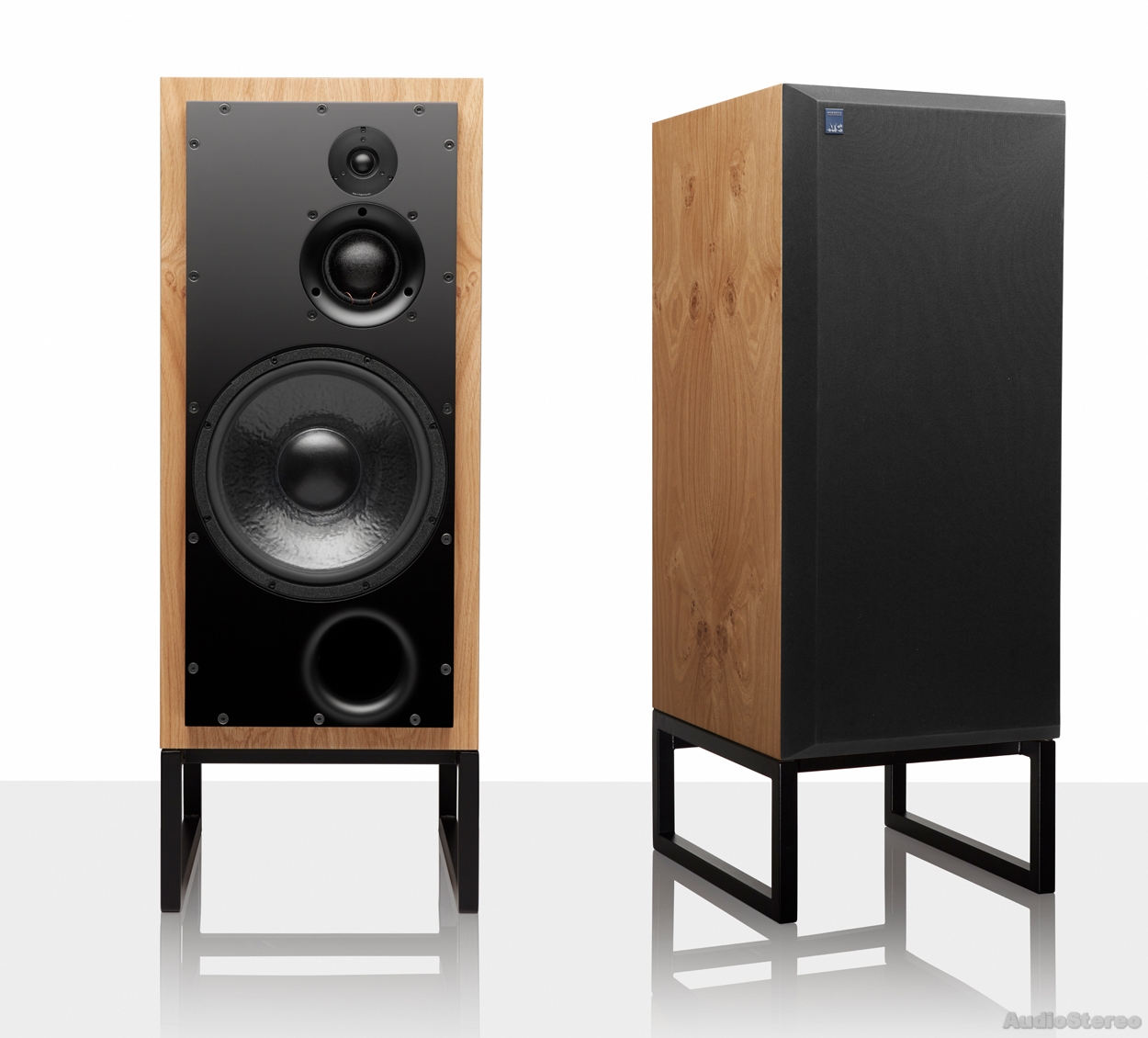

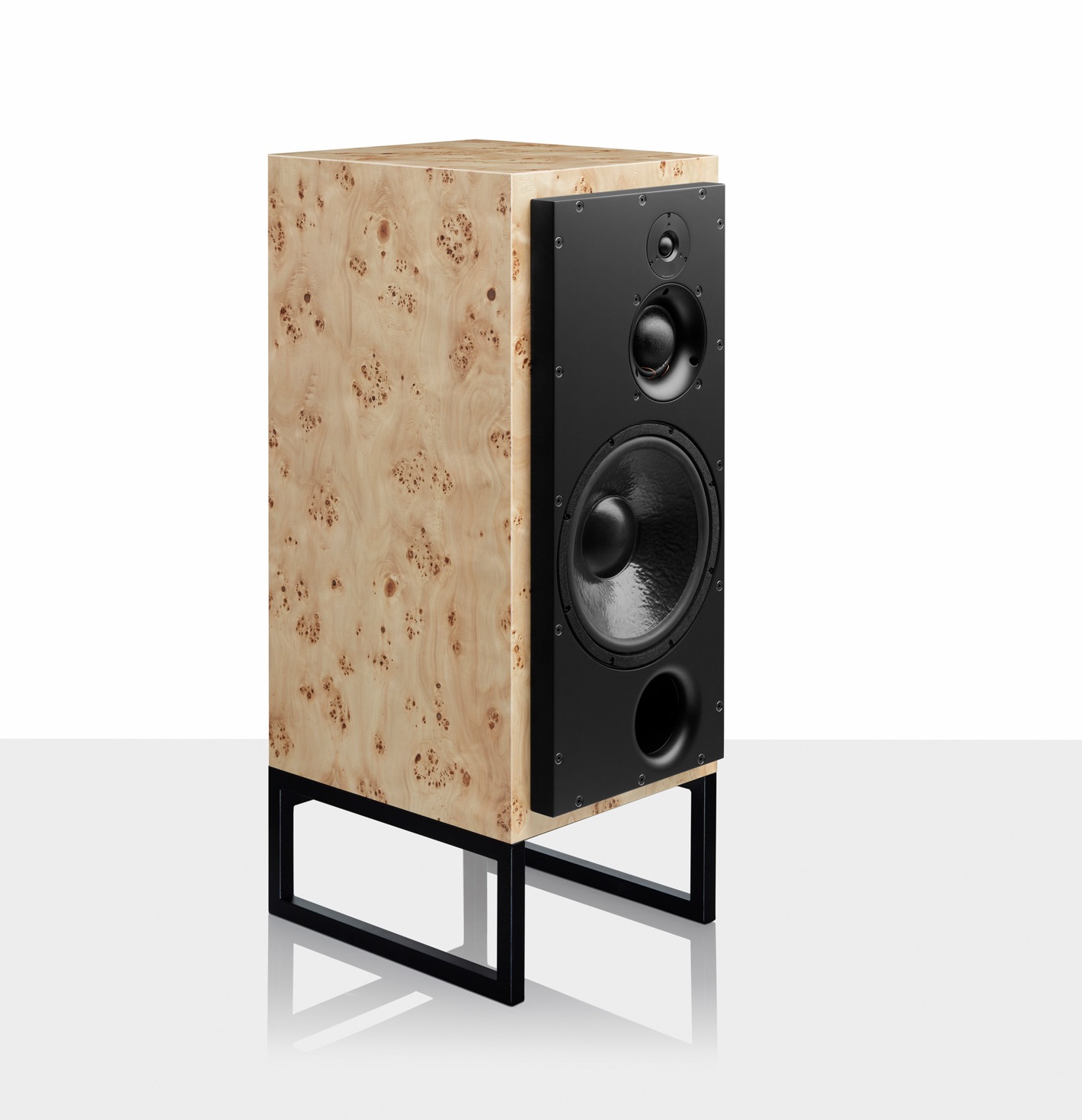

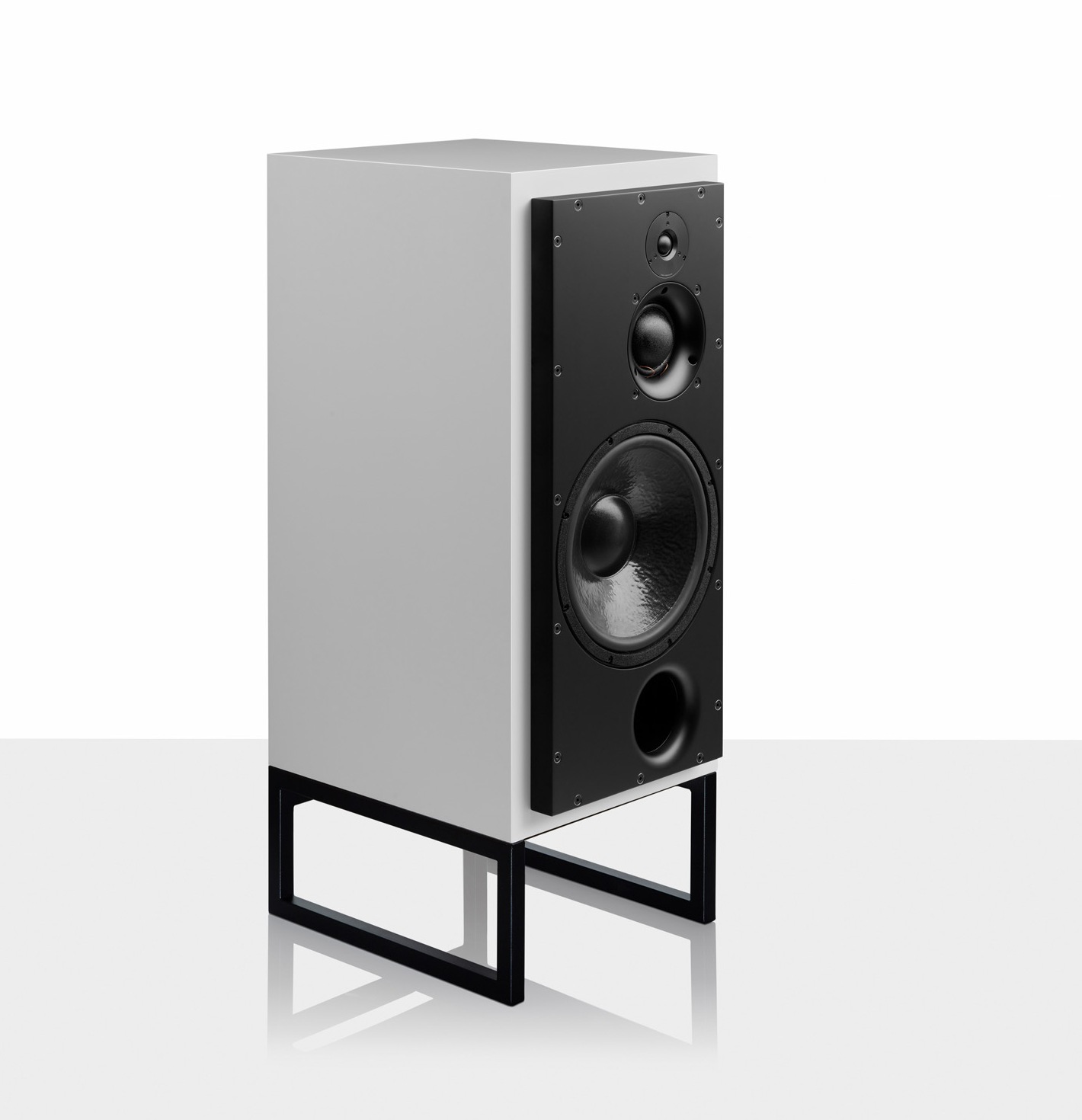

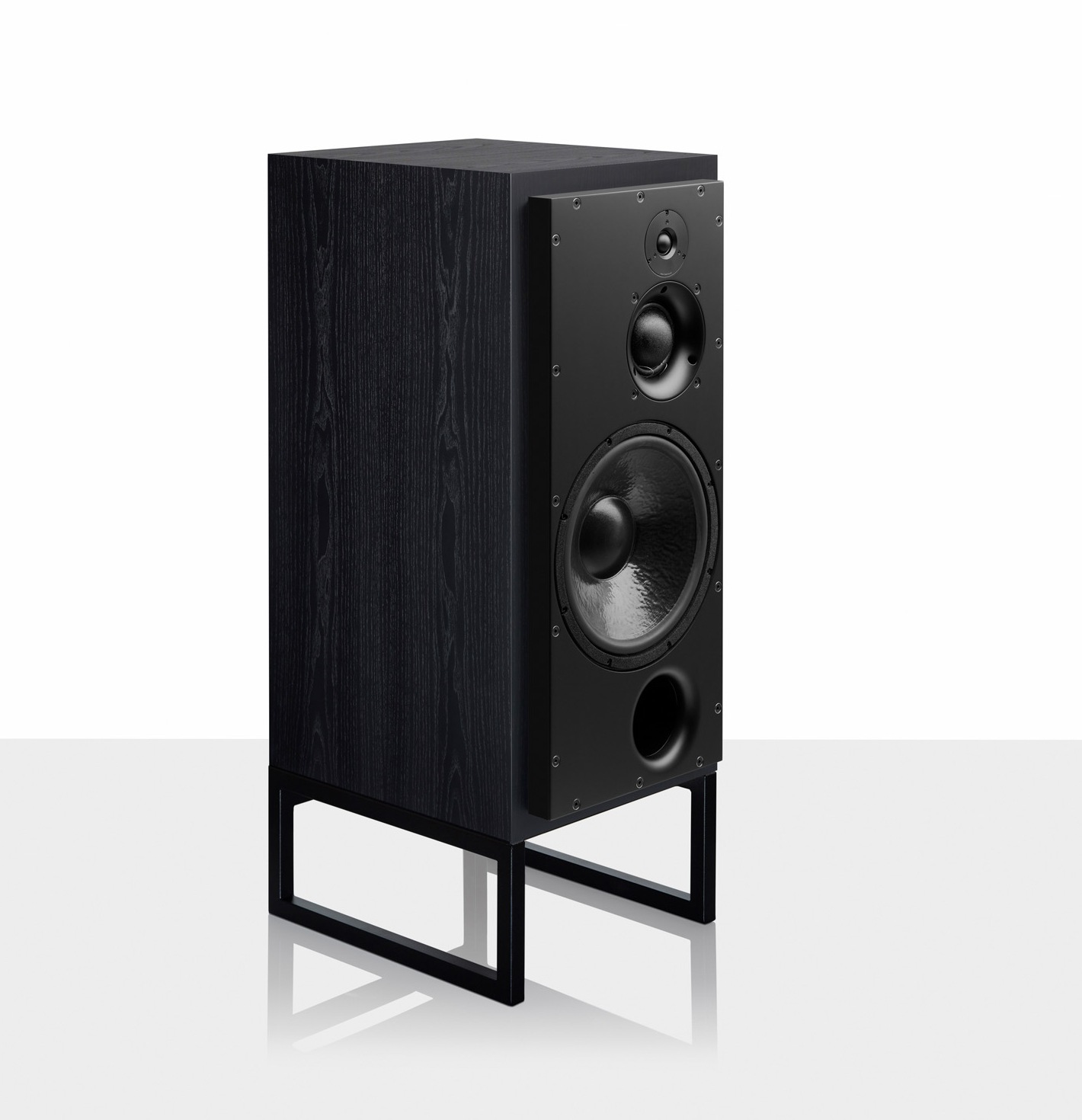

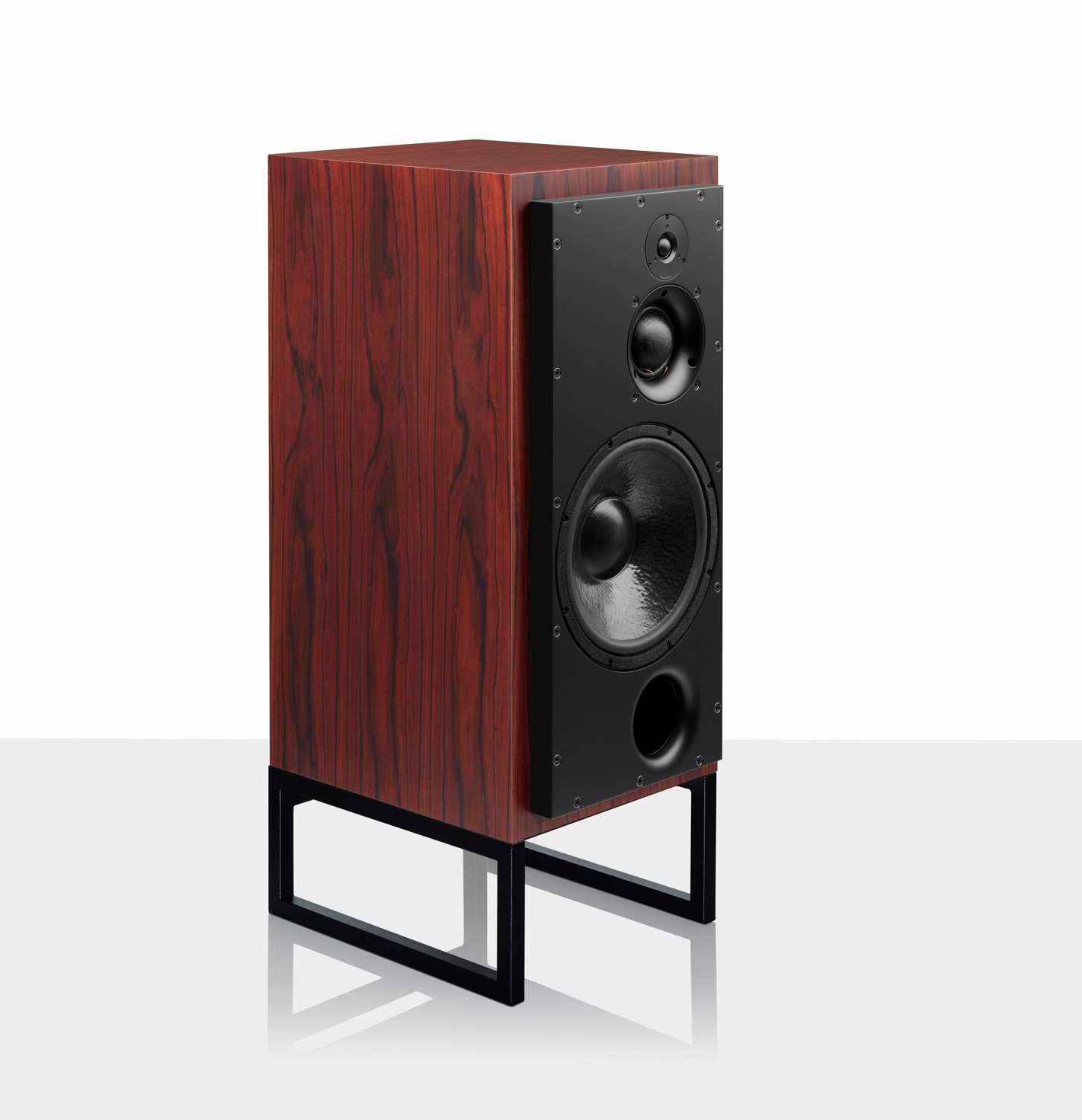

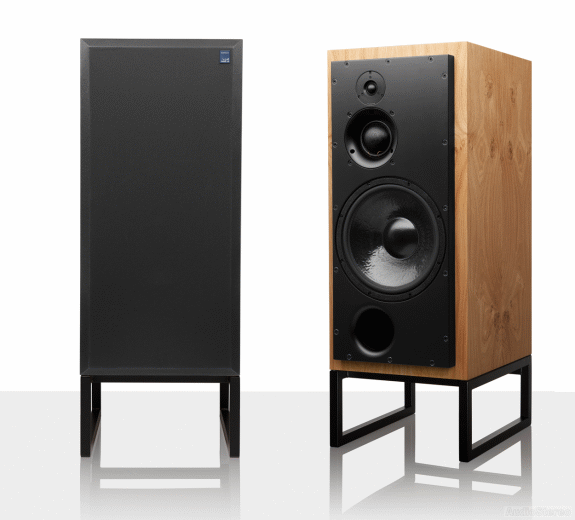

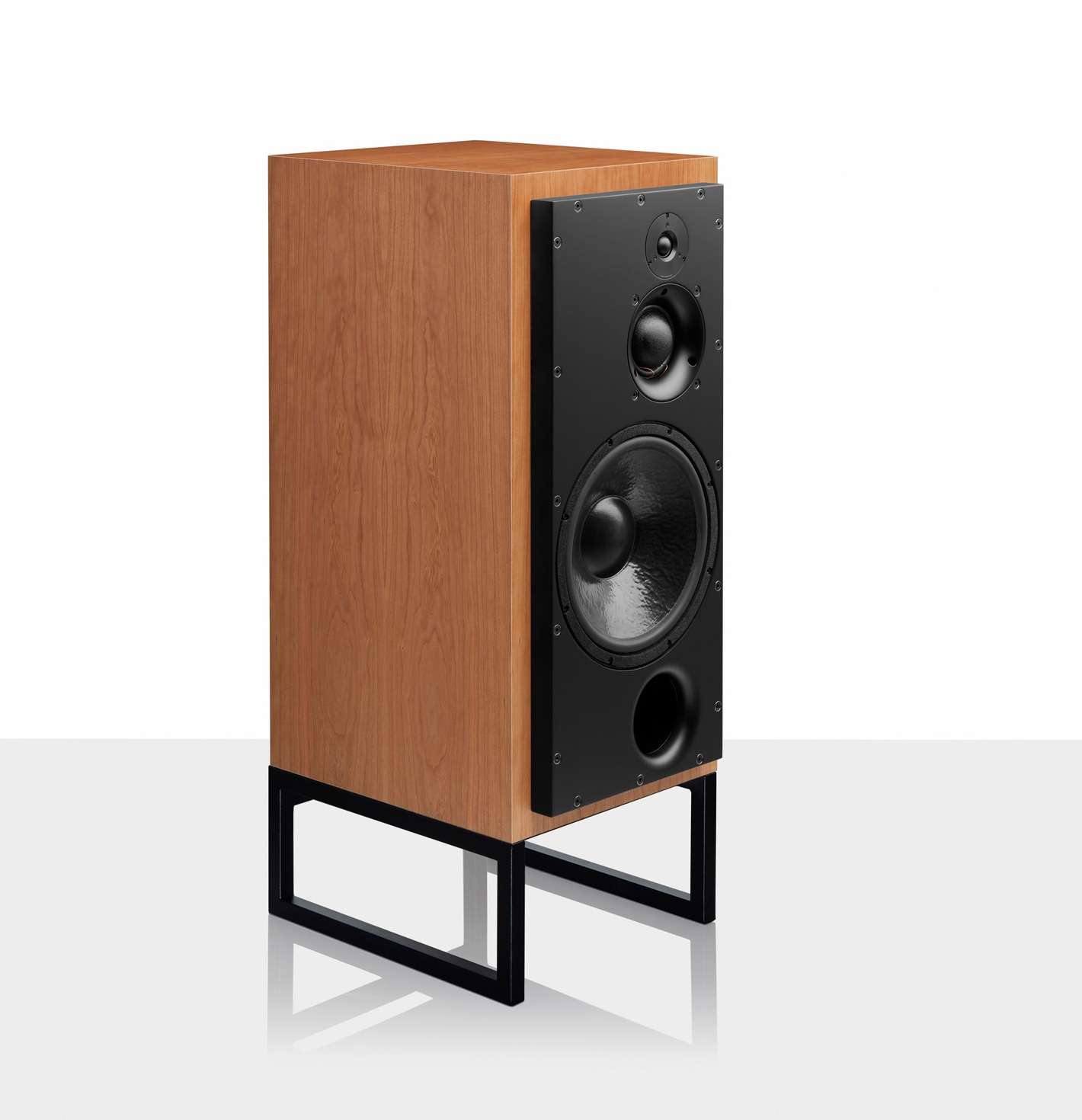

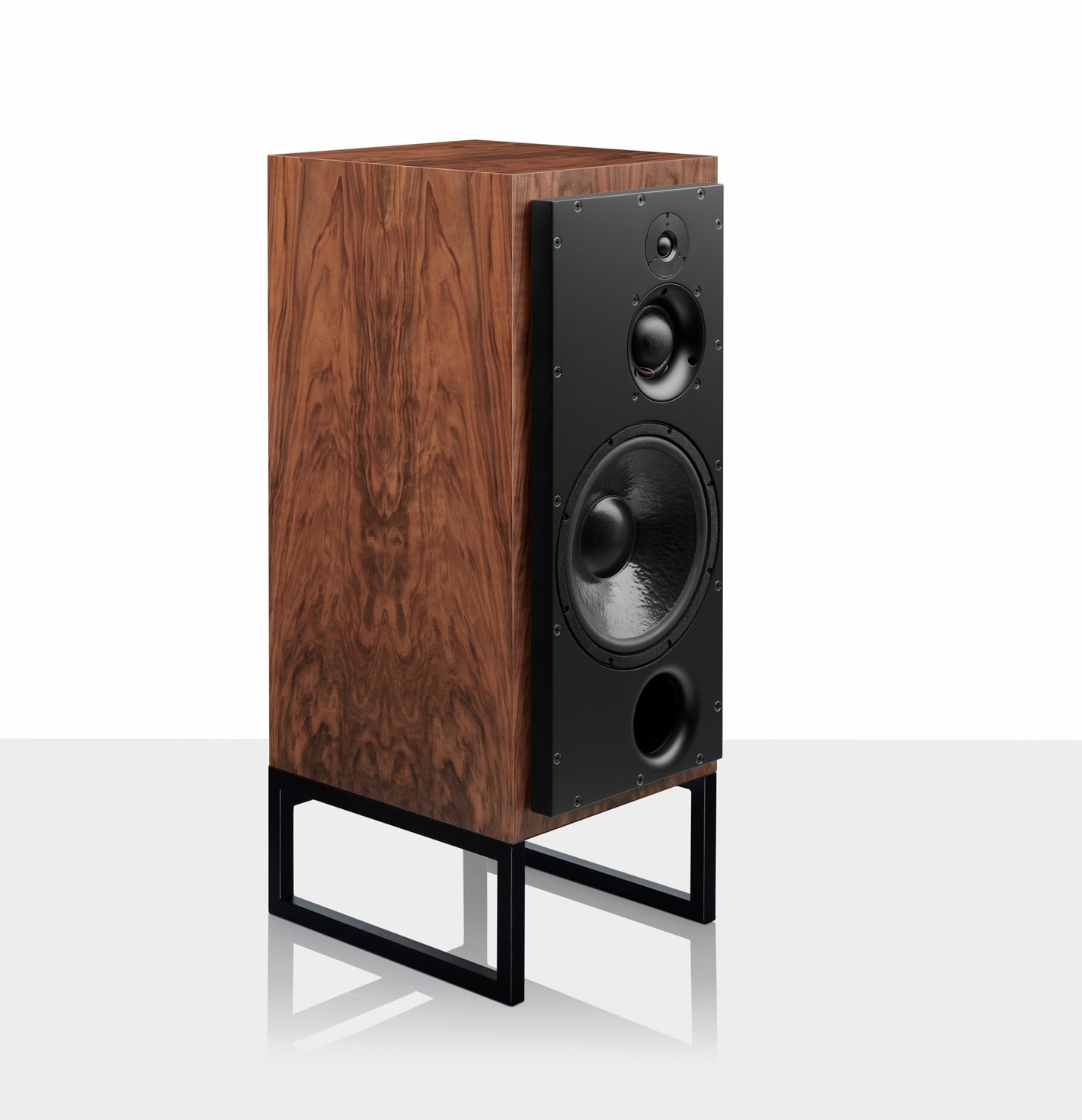

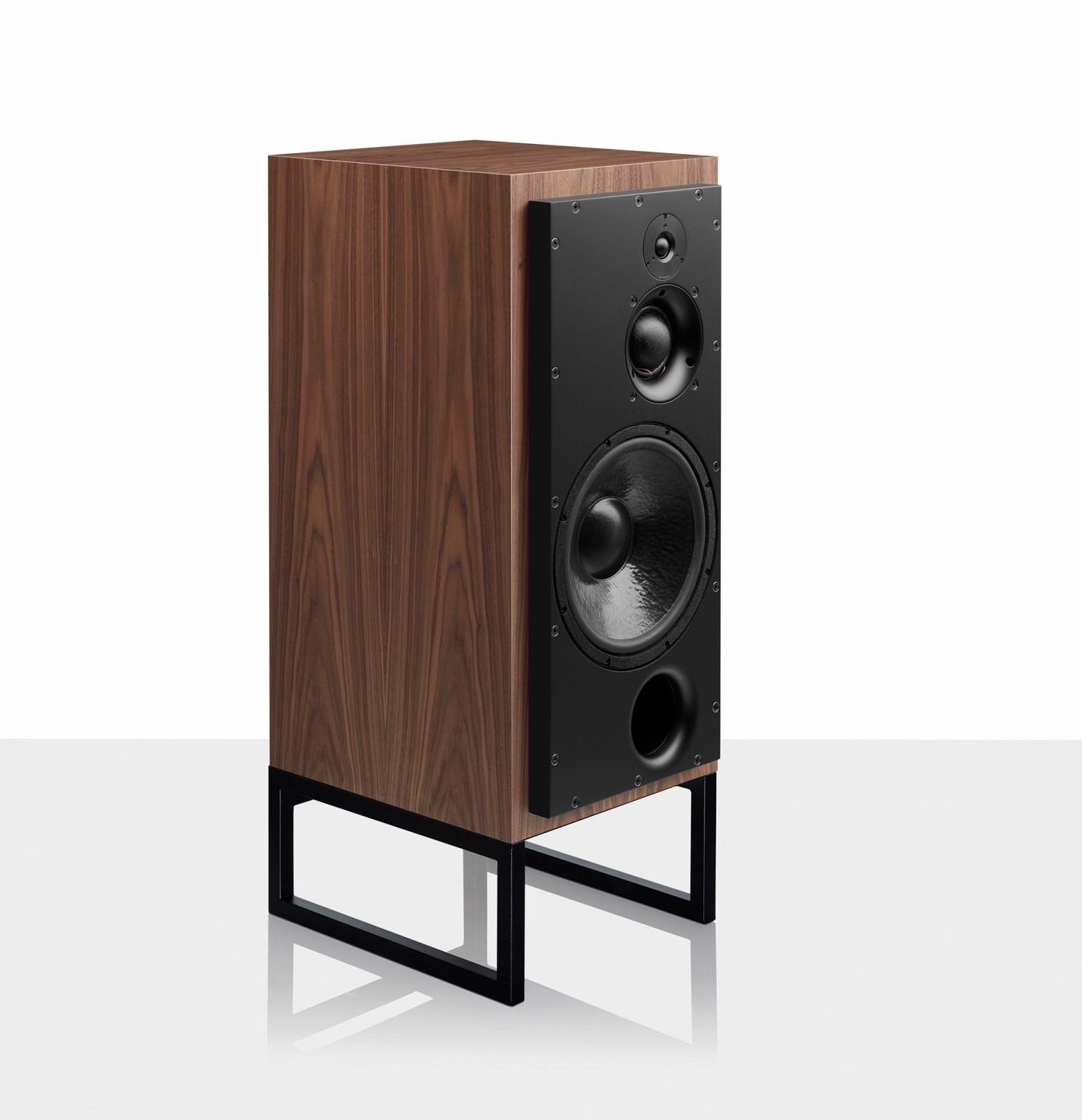

ATC SCM 100 SL - Classic Series
£3410
call
  << variante >>
ATC SCM 150 SL ELAC Spirit of Music CE ELAC FS 509 VX-JET Stereo Setup
SCM 150 SL Spirit Of Music CE FS 509 VX-JET

ATC SCM 100 SL Features:

  • ATC 314mm Super Linear bass driver
  • ATC 75mm Dual Suspension Super Dome midrange
  • ATC 25mm Dual Suspension ‘S-Spec’ tweeter
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The SCM 100 SL are designed to perform at their best with the finest quality hi-fi equipment.
  • Like their smaller brother, the SCM 50 SL, the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all perform-ance parameters.
  • Bass performance is equally impressive, thanks to ATC’s 12″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology
  • Stands included in delivery
ATC SCM 100 SL 25mm Dual Suspension ‘S-Spec’ Tweeter ATC SCM 100 SL 75mm Dual Suspension Super Dome Midrange
25mm Dual Suspension ‘S-Spec’ Tweeter 75mm Dual Suspension Super Dome Midrange
ATC SCM 100 SL 314mm SL Super Linear Bass
314mm SL Super Linear Bass

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 314mm ATC Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz – 22kHz (freestanding, no room gain)
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Power Amplifier: 100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 834 x 400 x 530 mm (1034mm height with included stand)
Weight: 57kg


ATC SCM 100 SL brochure
