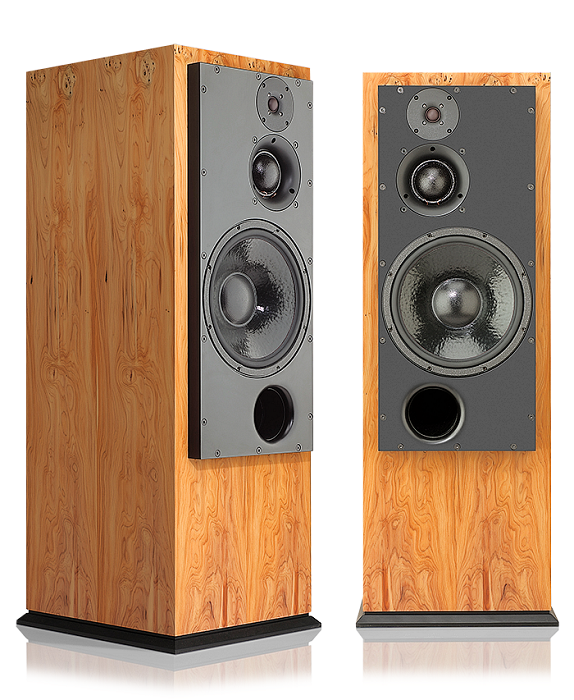

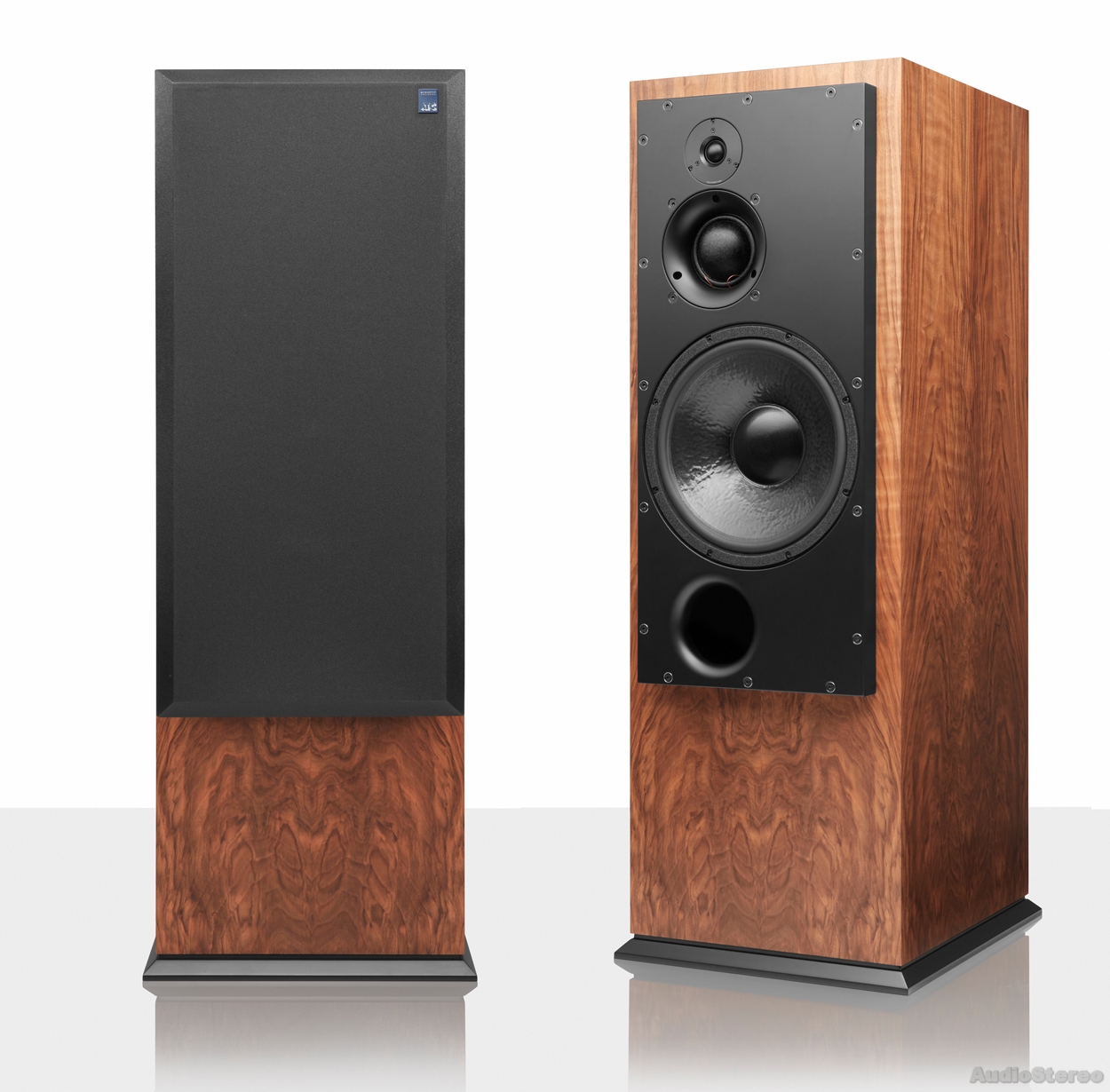

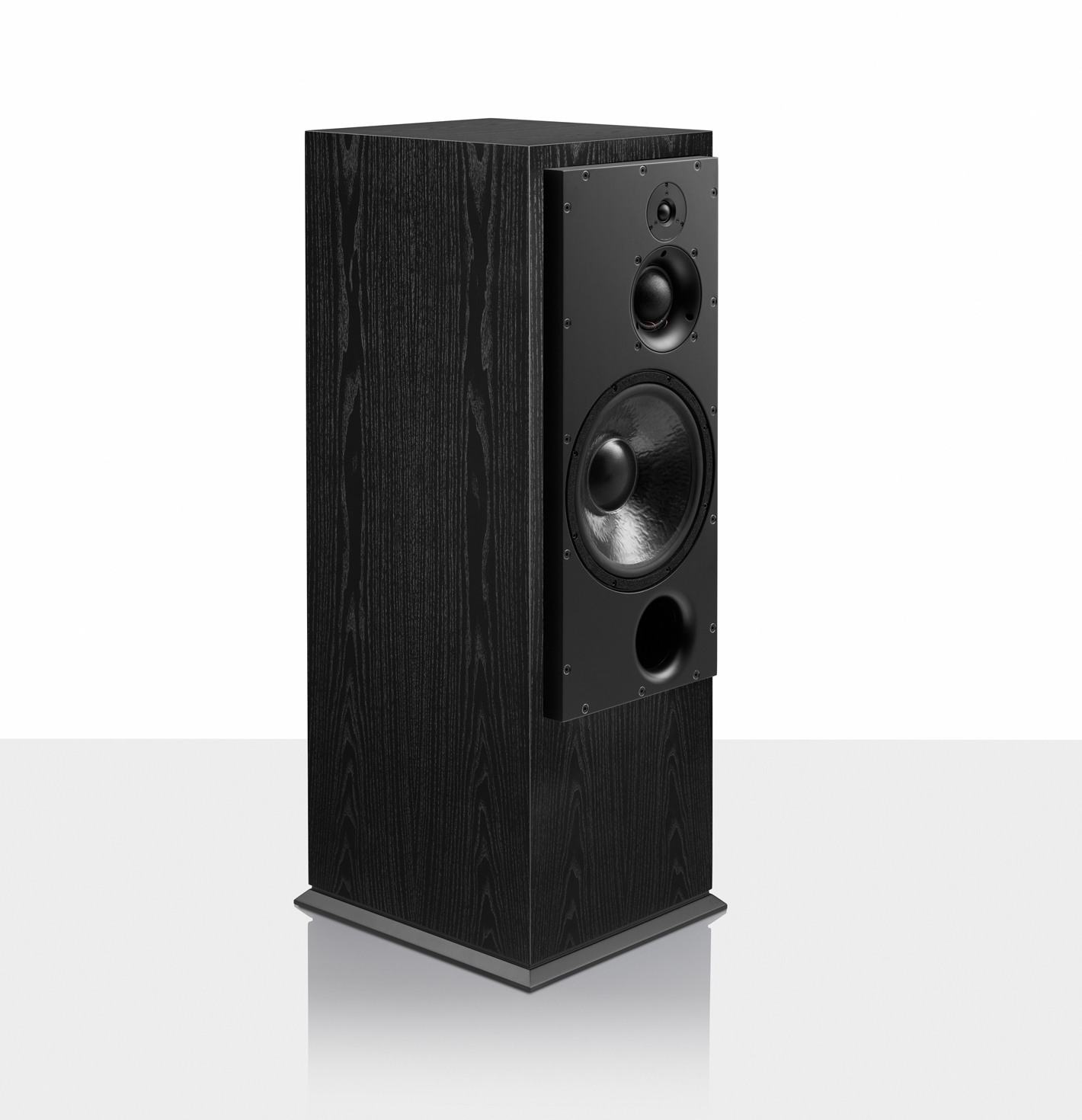

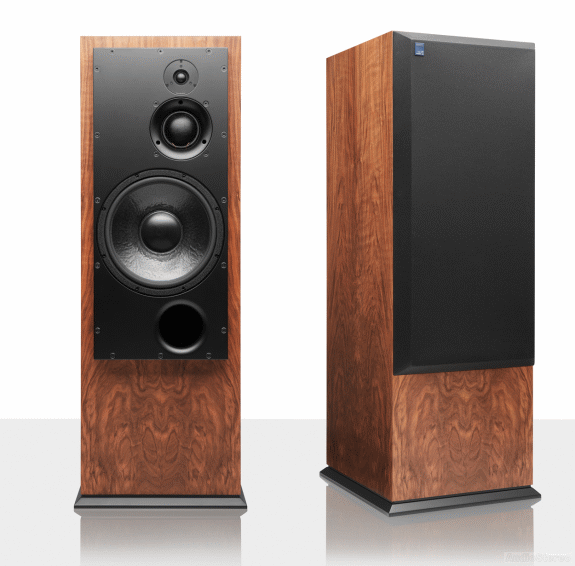

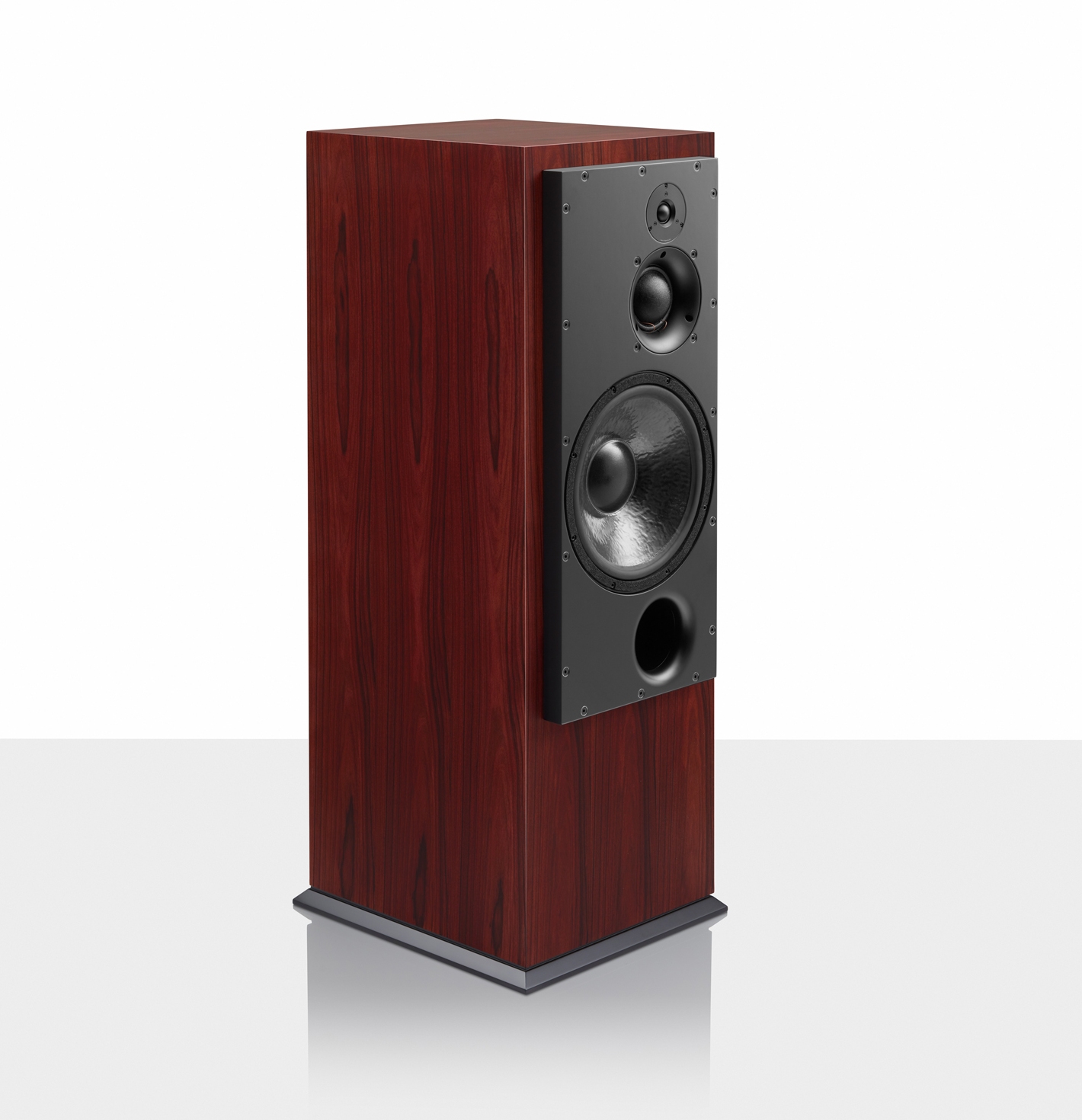

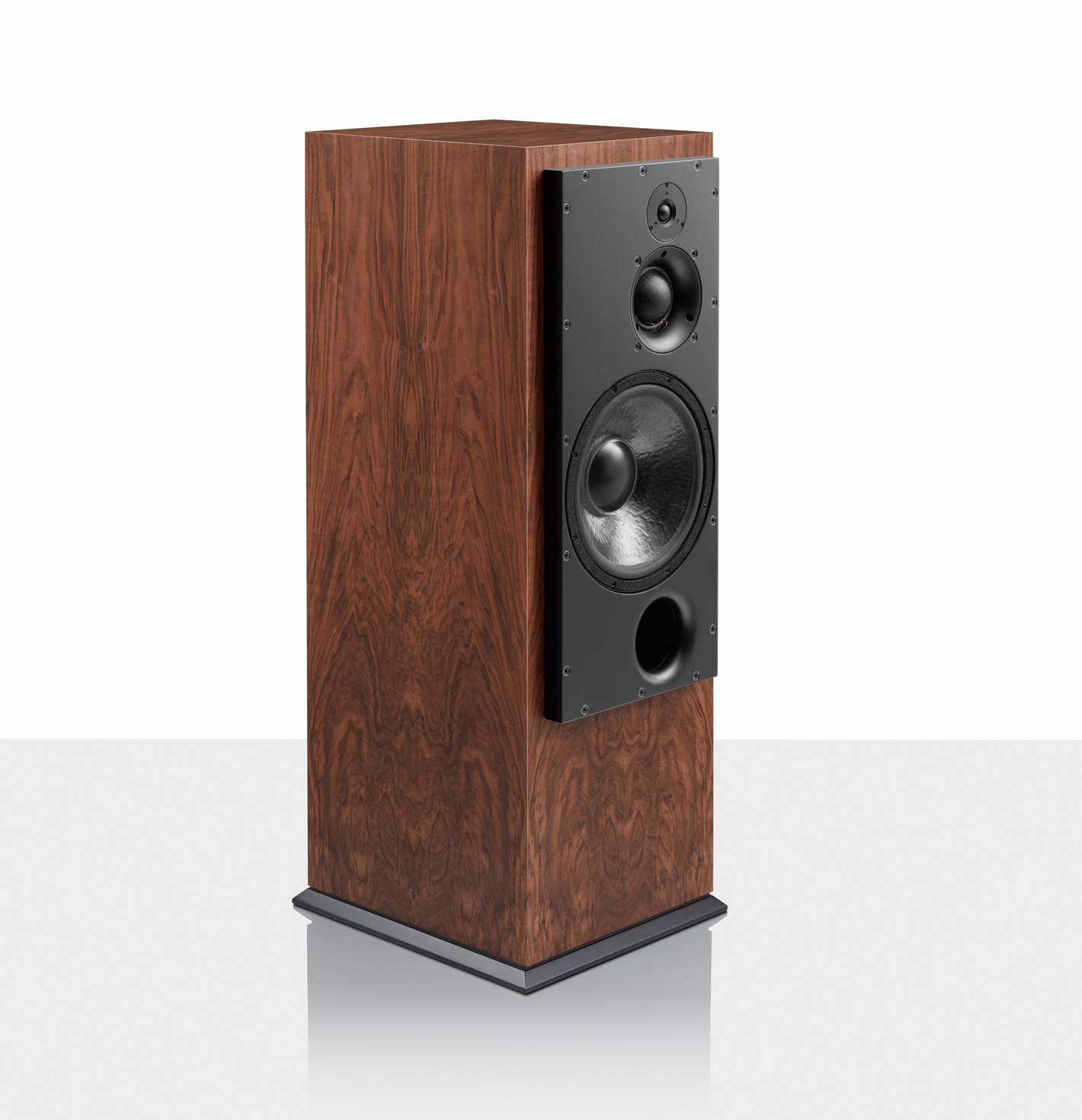

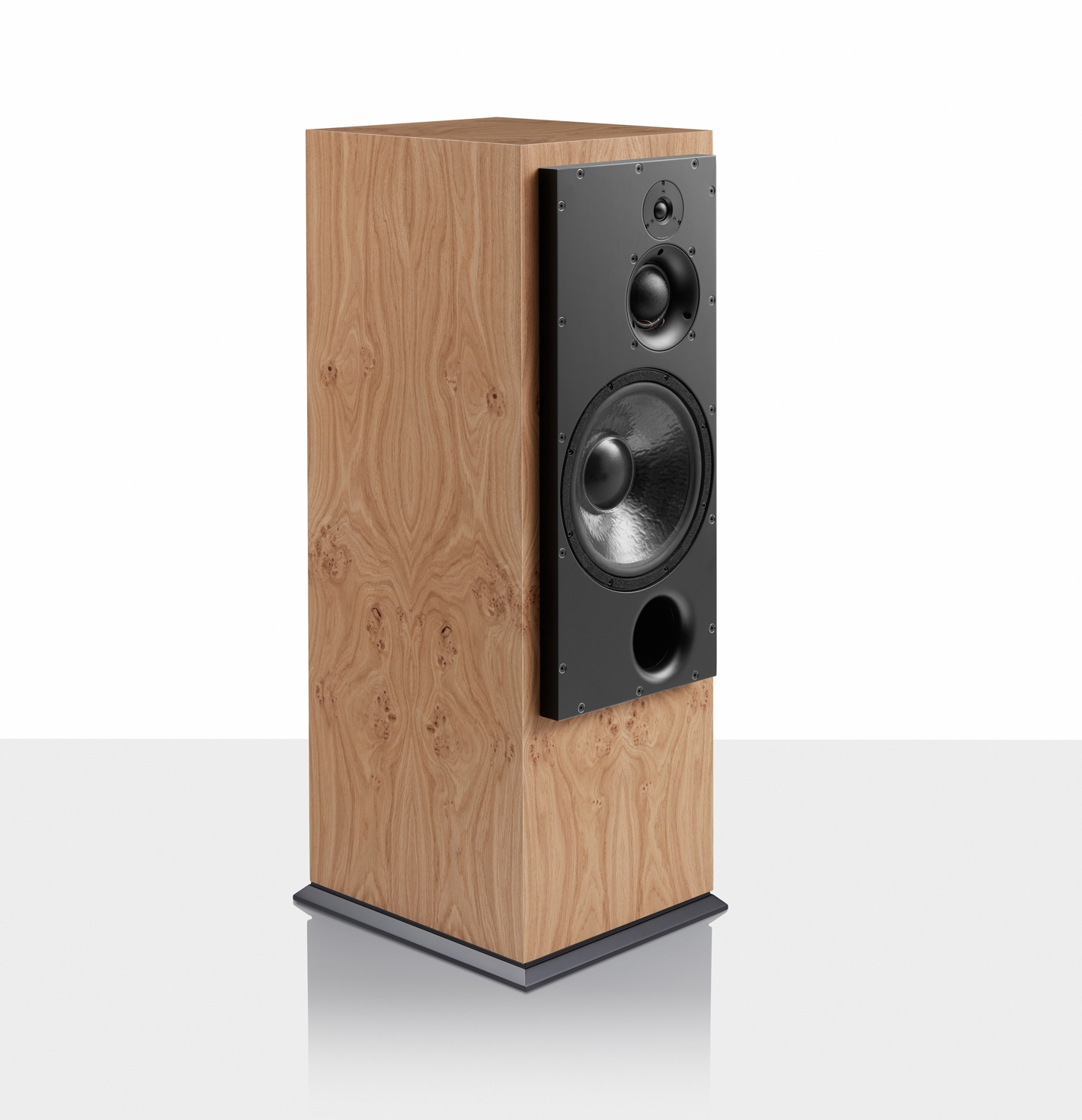

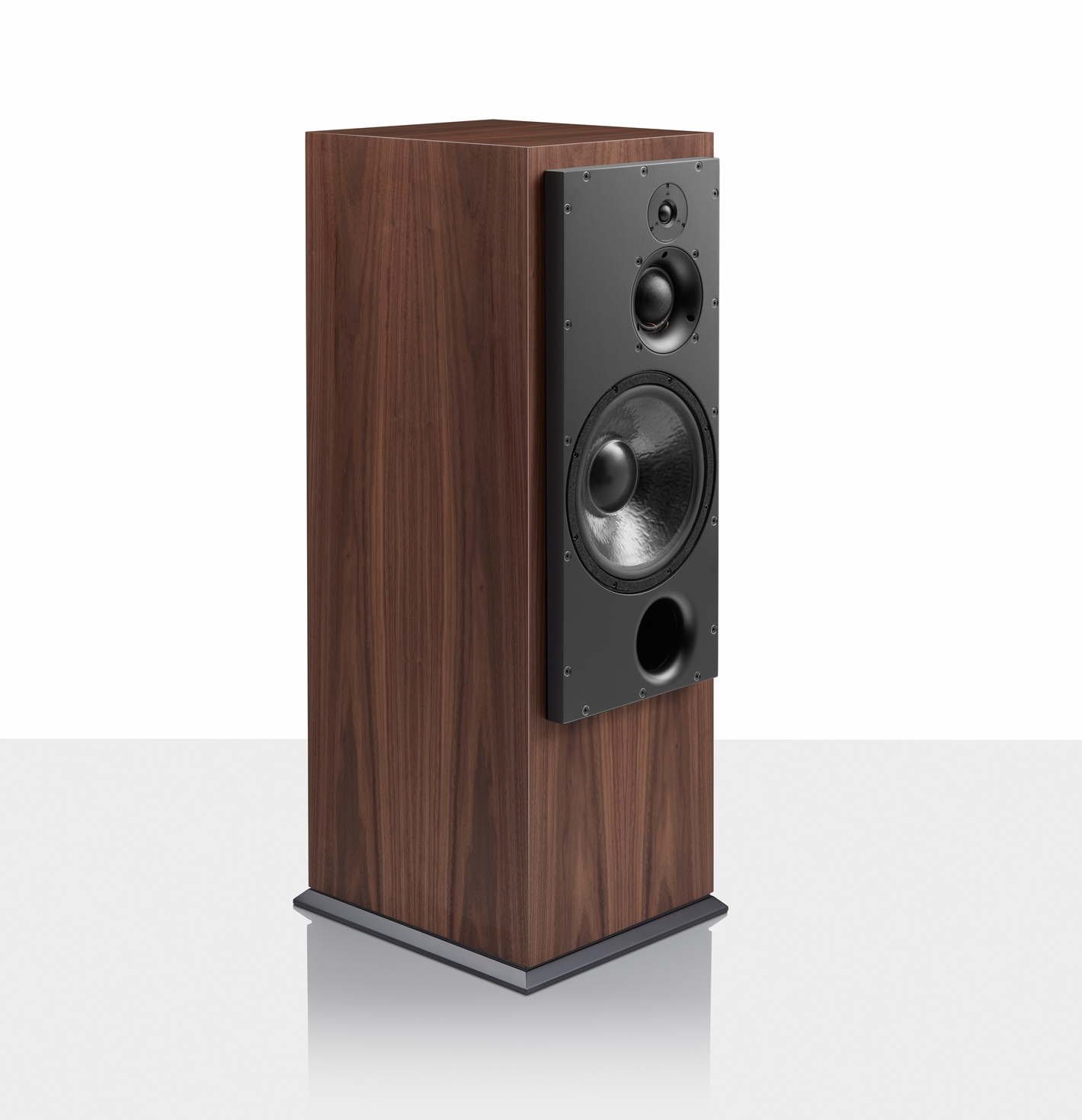

ATC SCM 100 SLT - Tower Series

£14750

ATC SCM 100 SLT Features:

  • New ATC designed and built dual suspension no ferrofluid 25mm Super Dome tweeter
  • ATC 75mm Super Dome midrange
  • Latest 314mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S Super Dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

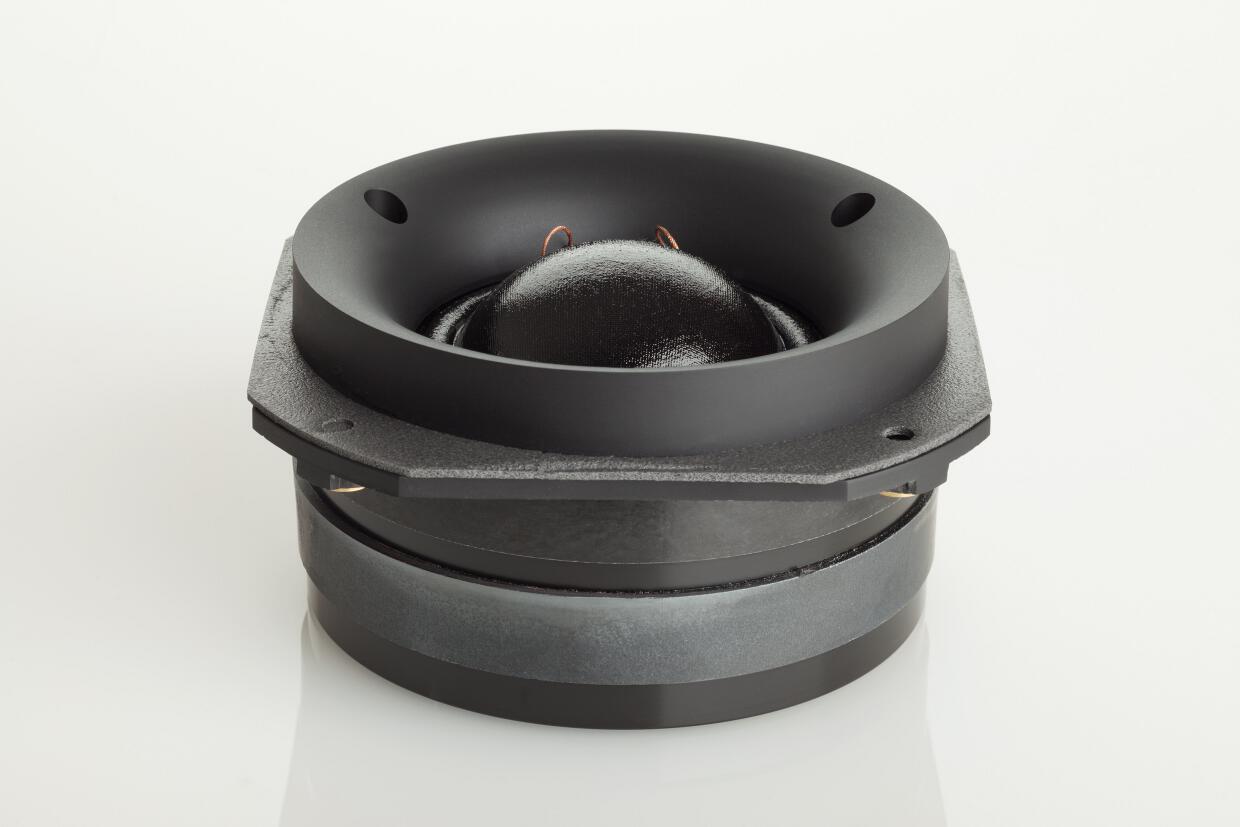

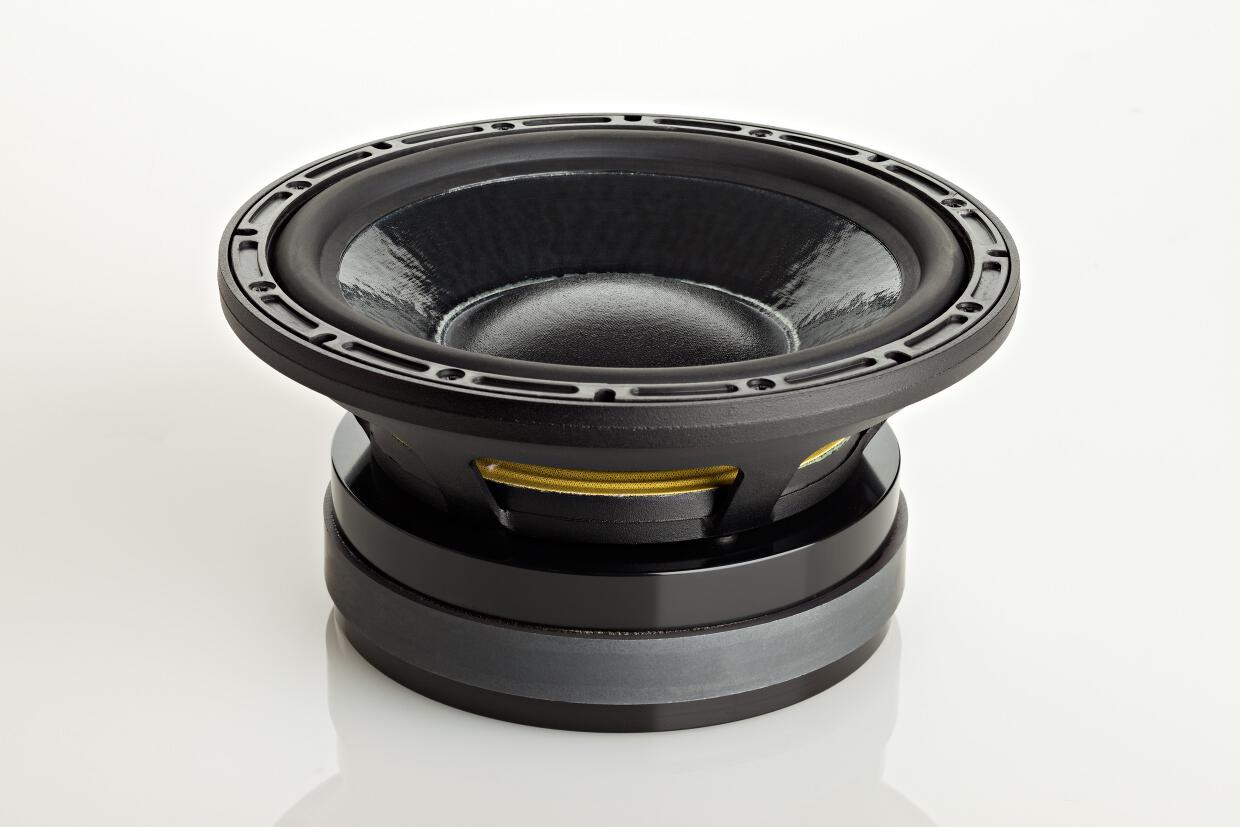

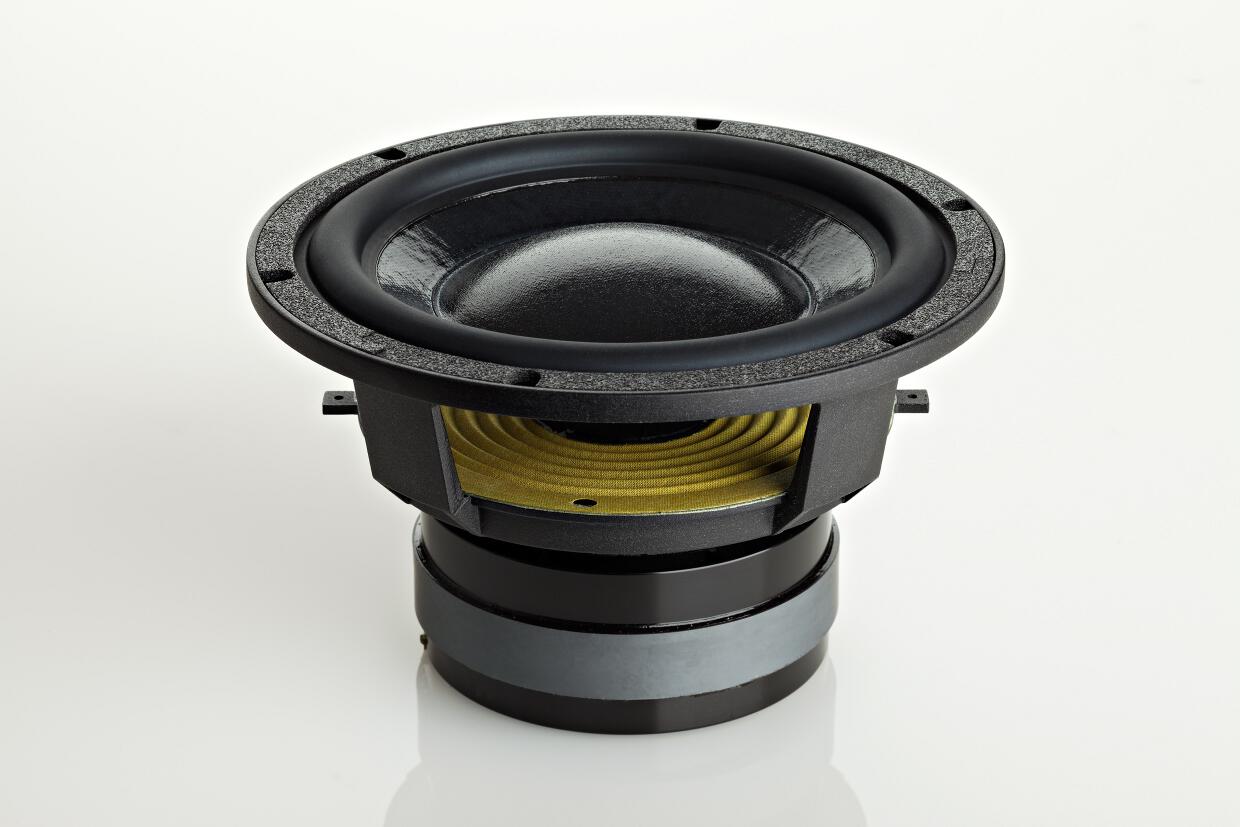

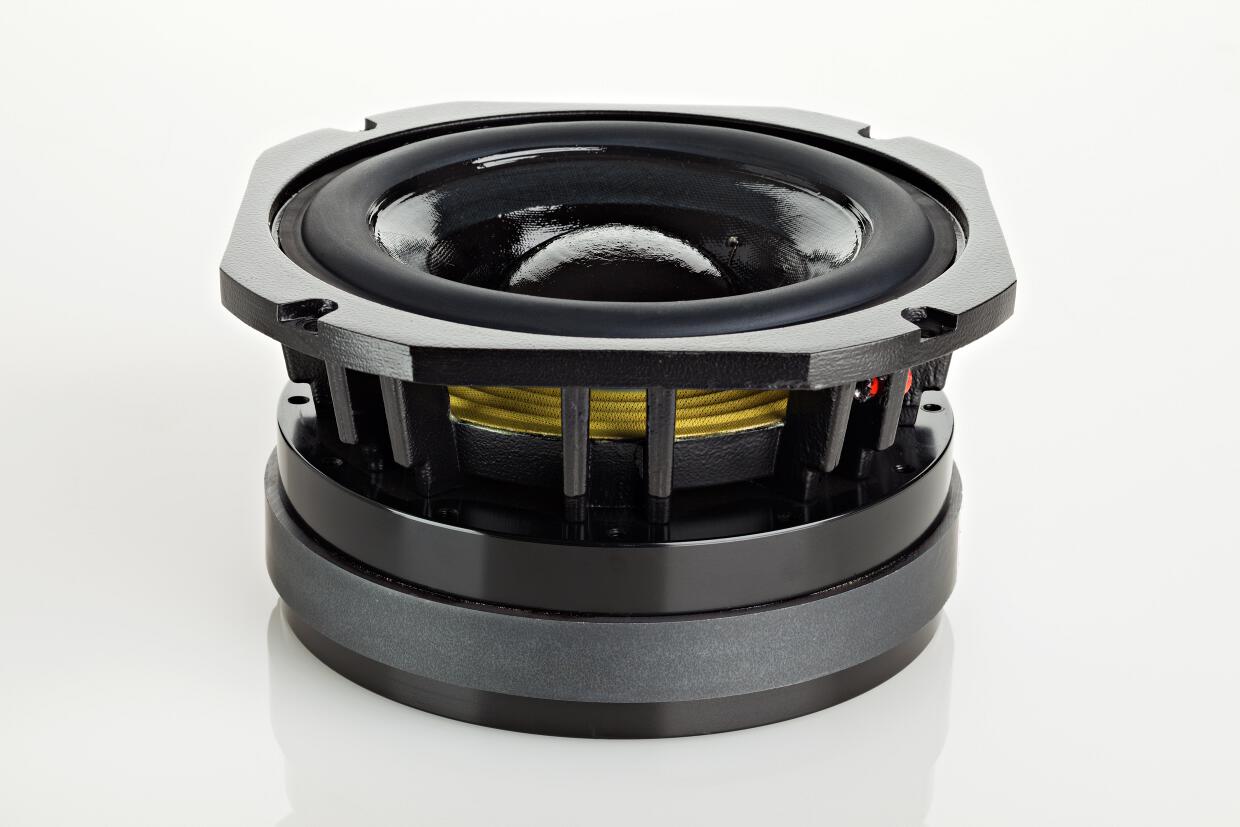

ATC SCM 100 Super Dome tweeter ATC SCM 100 Super Dome midrange driver ATC SCM 100 Super Linear bass
ATC SCM 100 SLT drivers

Specifications

Drivers: HF 25mm ATC Neodymium, Mid 75mm ATC Super Dome, LF 314mm ATC Super Linear
Frequency Response (±2dB): 65Hz–17kHz
Frequency Response (±6dB): 32Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max SPL: 115dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Binding Posts/ 4mm banana plugs, tri-wire capable
Recommended Amplifier Power100 to 1500 Watts (see ATC SPA2-150)
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1070 x 397 x 560 mm
Weight: 68kg
