ELAC BS 203 Anniversary Edition

AudioStereo logo

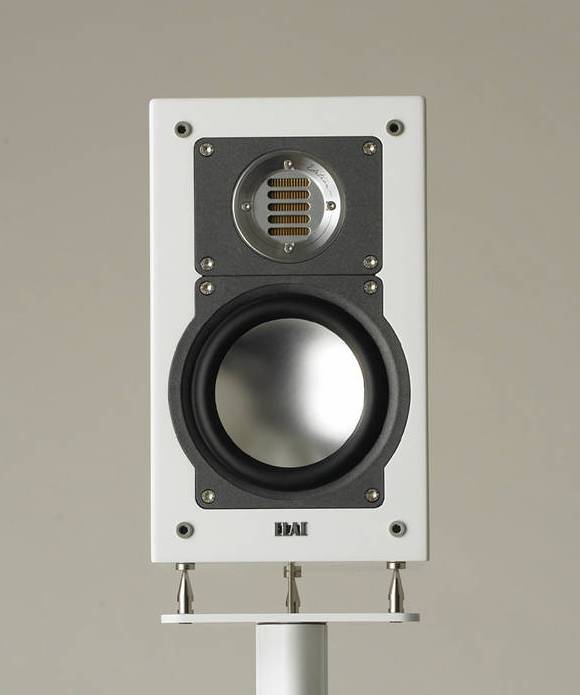

ELAC BS 203 Anniversary Edition white high gloss on stand>
780
940
  << variante >>
ELAC BS 243
ATC SCM 7 disponibile in Demo
XAVIAN NEOX1
BS 243 NEOX1
ELAC BS 203 Anniversary Edition - WHAT HI-FI (Russia) review ELAC BS 203 Anniversary Edition - REVUE DU SON (France) review
ELAC BS 203 Anniversary Edition - STEREO & VIDEO (Russia) review ELAC BS 203 Anniversary Edition - AVmagazin (Germany) review ELAC BS 203 Anniversary Edition - IVAN (Russia) review

" Good dynamic, clear sound, supertweeter" - these are just a few adjectives that this model was awarded by the French experts.

REVUE DU SON (France) review



"The compact speaker ELAC BS 203 Anniversary Edition are a delightful mix of precision and emotion"

AVmagazin (Germany) review


ELAC JET III Anniversary Edition tweeter
  • TT150AS: difuzor midbass cu membrana sandwich hartie-aluminiu
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil) Anniversary Edition

Frumusetea neagra

Aceasta frumusete nu este numai la nivel de aparenta; aceasta incinta acustica va reproduce muzica in cel mai frumos mod, folosind difuzoare de inalta calitate facute in Germania si incorporand tehnologia sandwich aluminiu si hartie si legendarul tweeter JET.

Comparat cu BS 203.2, incinta BS 203 A dispune de un nou filtru crossover care face aceasta incinta ideala pentru montarea libera, pe stand.
ELAC LS 70 & ELAC FS 70 II speaker stand Disponibil ca accesoriu: standul LS 70 este perfect adaptat pentru aceasta incinta acustica. Protectiile metalice inserate in baza incintei se potrivesc exact pe cele trei spike-uri ale placii superioare. In plus exista posibilitatea fixarii cu surub pentru stabilitate si siguranta sporita.
Specifications

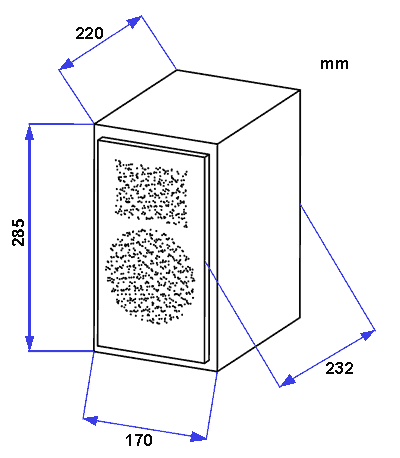

Dimensions H × W × D
285 × 170 × 220 (232) mm Details
Gross Volume
11.2 l
Weight
5.2 kg
Type
2-ways, bass reflex
Woofer
Bass Ports
1 × 150 mm AS cone
1 × 45 mm (with Bass Control Plug)
Tweeter
1 × JET III (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
50-150 W / channel
Crossover Frequency
2,600 Hz
Sensitivity
86 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.5 Ohm / 210 Hz
Frequency Range
42 ··· 50,000 Hz
Nominal / Peak Power Handling
60 / 80 W
Finishes
black high gloss
white high gloss
ELAC BS 203 Anniversary Edition brochure

Treble Unit

ELAC JET III tweeter used in all 200 Anniversary Series range

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of Hi-Res Audio music.

ELAC JET DC (Dispersion Control) ring

The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape).

The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet.

Note: The loudspeakers of the 200 Anniversary series are not supplied with the JET Dispersion Control - this is an optional accessory.



Midbass Unit

TT 150 AS used in : BS 203 A, FS 207 A.

The woofers of the 200 Series are designed in the ELAC proprietary aluminium sandwich technique. In a special glueing procedure, an aluminium foil of 0.2mm is joint to a pulp fibre cone to form a sandwich membrane. The result: reduced partial oscillations, no distortions and an optimised large signal behaviour.

ELAC AS cone - paper-aluminium sandwich
