ELAC Navis ARB-51

AudioStereo logo

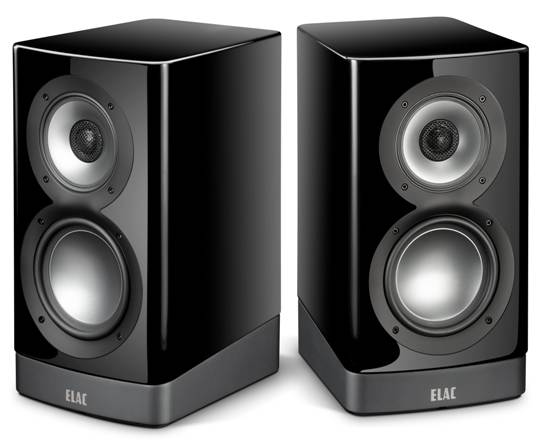

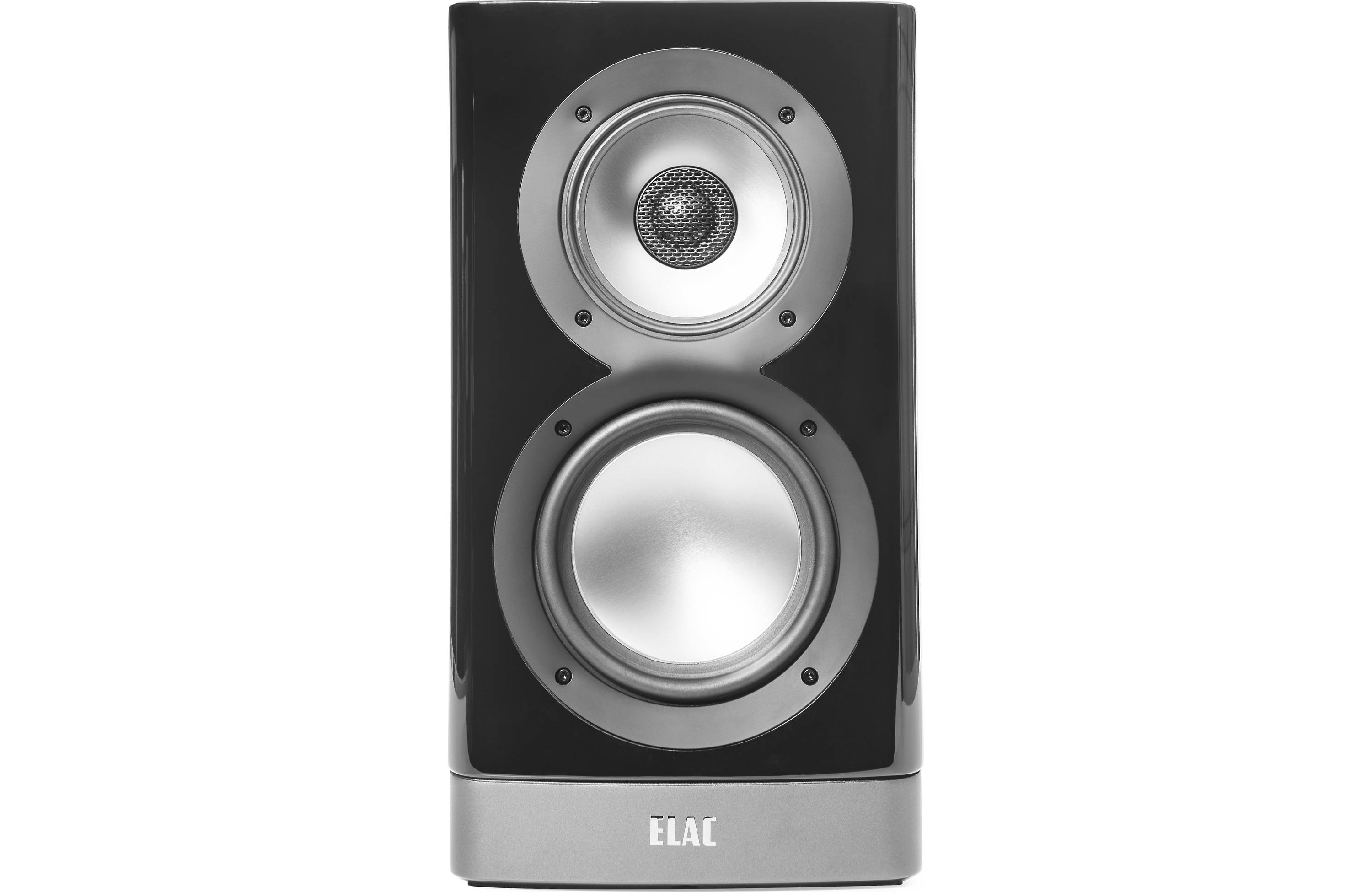

ELAC NAVIS ARB-51 black high gloss
ELAC NAVIS ARB-51 ebony emara high gloss ELAC NAVIS ARB-51 black high gloss ELAC NAVIS ARB-51 white high gloss

1998

ELAC NAVIS Series drivers

1" Tweeter: concentrically mounted 1-inch soft-dome tweeter

4" Midrange: aluminum midrange driver concentric-driver technology to deliver unsurpassed mid- and high-frequency performance

1x 5-1/4" Woofer: custom aluminum woofer for truly impressive bass

ELAC Navis ARB-51 powered bookshelf

ELAC’s new Navis Series answers every minimalist audiophile’s dream of a no-compromise powered speaker driven by best-inclass amplifiers that are truly deserving of the name “high end.” While most powered speakers rely on Class D digital designs, ELAC engineers build in 300 watts of pure analog amplification— for maximum power and exceptional sound. Add the Discovery Connect wireless transmitter to your system, and Navis becomes a wireless speaker that lets you enjoy streaming content without a cable in sight.

Sonic excellence with ELAC’s state-of-the-art drivers

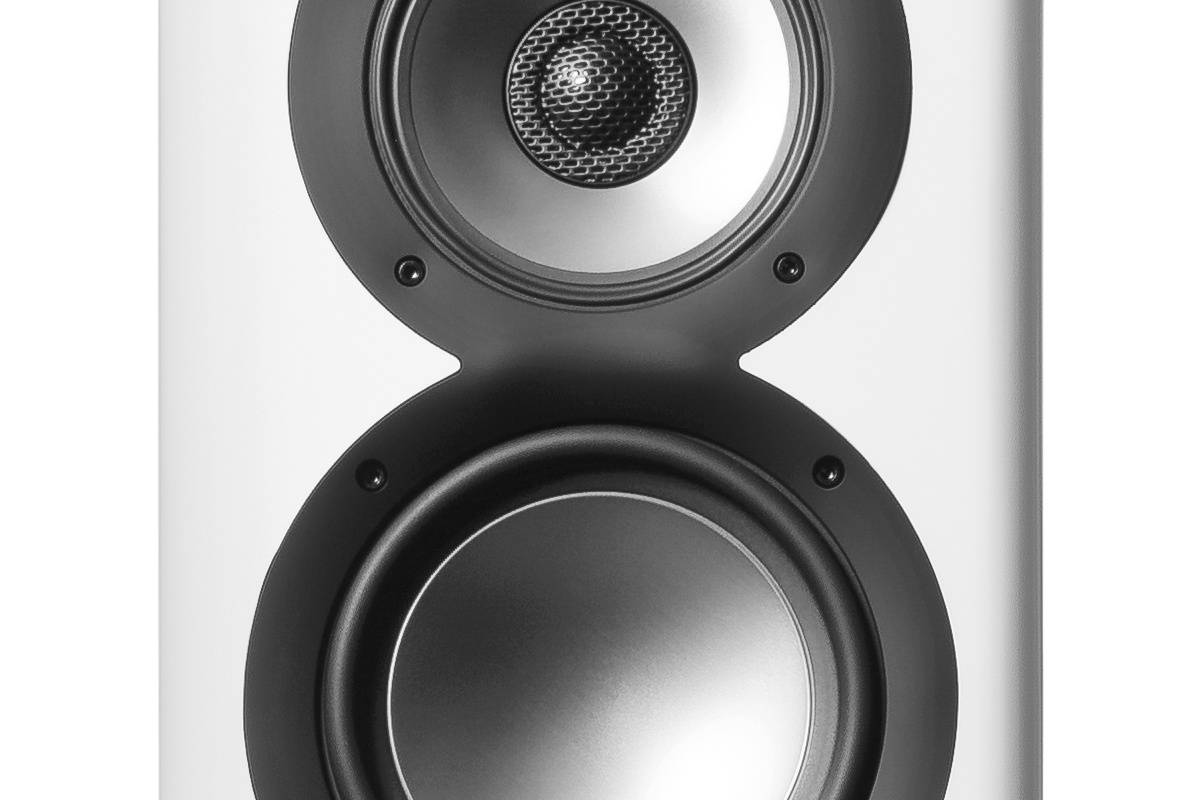

Designed from the ground up, the full-range, monitor-quality Navis Bookshelf features ELAC concentric-driver technology to deliver unsurpassed mid- and high-frequency performance, coupled with a custom aluminum woofer for truly impressive bass, all in one compact, elegant package. Each of the three transducers is powered by its own dedicated analog amplifier, with a selection of RCA or XLR balanced inputs.

EISA Award Best Active Stereo Loudspeaker 2019-2020

Part of a new, two-strong active speaker range from ELAC – there’s also the larger floorstanding ARF-51 – this bookshelf design combines custom drivers and an analogue crossover design all perfectly integrated with inbuilt amplification to give a sound of remarkable precision and clarity. By dedicating one amplifier to each driver – the tweeter and midrange are mounted concentrically for enhanced focus – ELAC ensures each is driven to the best of its capabilities. Connect the speakers to a preamplifier via RCA or XLR cables, and you have a complete, optimised system. You can even connect the speakers wirelessly using a choice of ELAC AirX2 hubs. Brilliant!

Specifications
Dimensions H × W × D
345 × 189 × 240 mm
Weight
8 kg
Principle
3-ways powered
Woofer
1 × 5-1/4″ Aluminum
Midrange
1 × 4″ Aluminum in-house developed
Tweeter
1 × 1″ Soft Dome Concentrically Mounted
Crossover Frequency
260 Hz, 2,200 Hz
Amplifier Power: 300 Watts Total
Bass Amplifier: 160 Watt Bash
Midrange Amplifier: 100 Watt Bash
Tweeter Amplifier: 40 Watt Class AB
Connections
RCA, XLR, AirX² Wireless
Frequency Range
44··· 28,000 Hz
 Power Output
300 W
Finishes
Gloss Black, Gloss White, Gloss Ebony Emara
ELAC Navis Series brochure ELAC Navis Series manual
Brochure Manual

ELAC NAVIS Series


NAVIS ARB-51 Features:

ELAC NAVIS Series Speakers - Powerful Trifecta

Powerful Trifecta

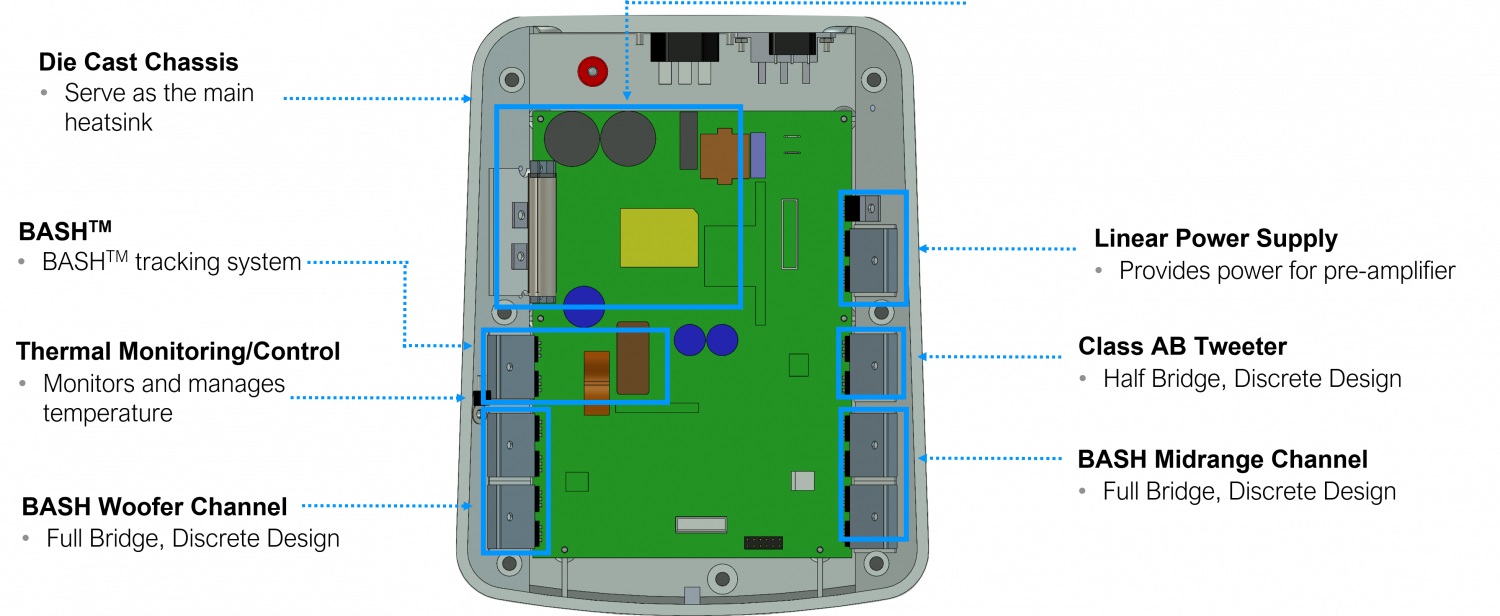

Inside each Navis Bookshelf Loudspeaker is a Tri-Amp Pure Analog Amplifier, employing three separate amps for each transducer: a 160-watt BASH AB amplifier for the woofer, a 100-watt BASH AB amplifier for the midrange, and a 40-watt Class AB amplifier for the tweeter. A total amplifier power of 300 watts ensures that each transducer is optimally—and amply—powered, eliminating clipping and crossover distortion, and driving each transducer with authority. Specs like a 110 dBA signal-to-noise ratio and 100 uV noise floor could only come from such audiophile-quality amps!

ELAC NAVIS Series Speakers - Flexible Connections

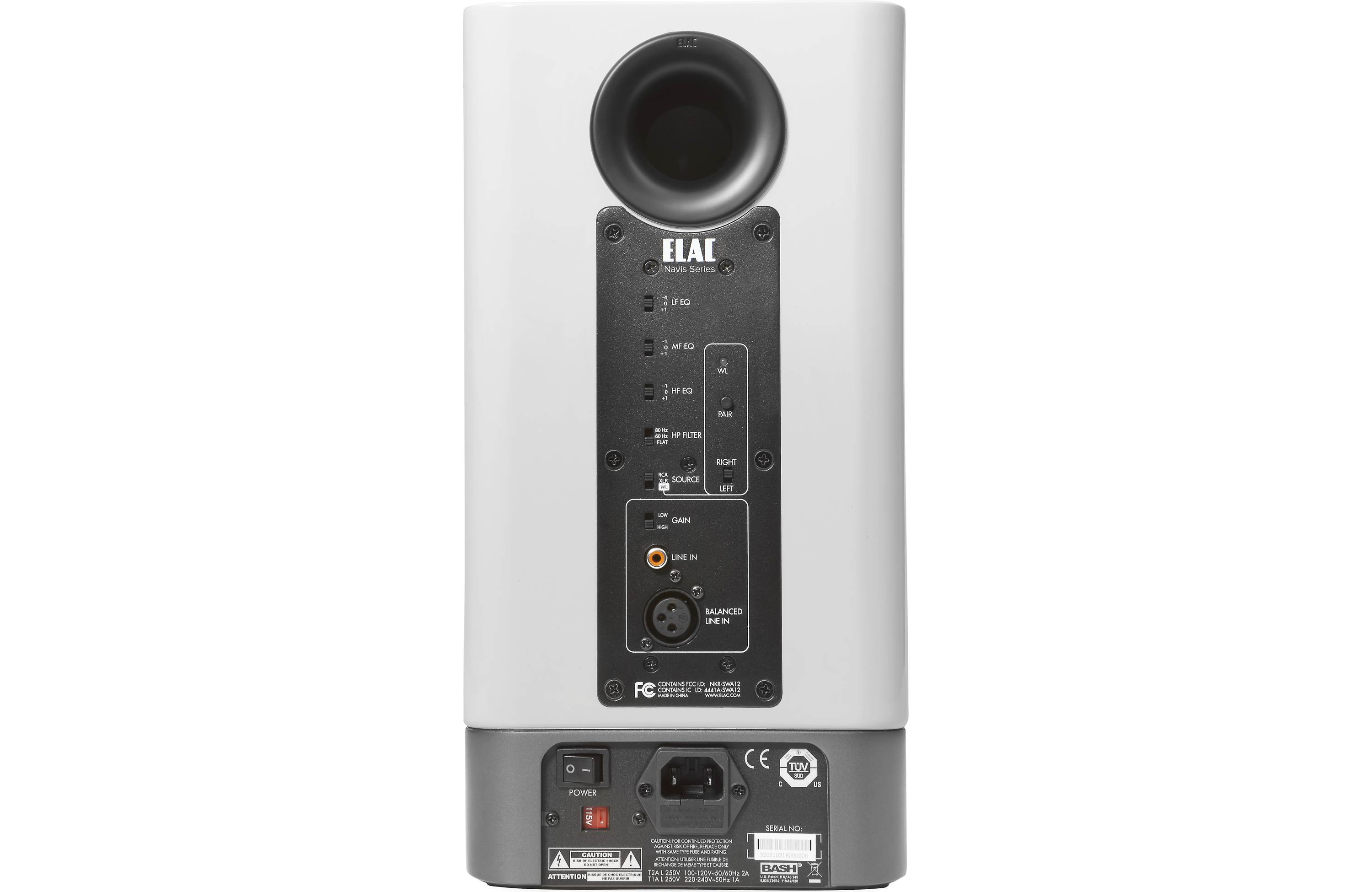

Flexible Connections

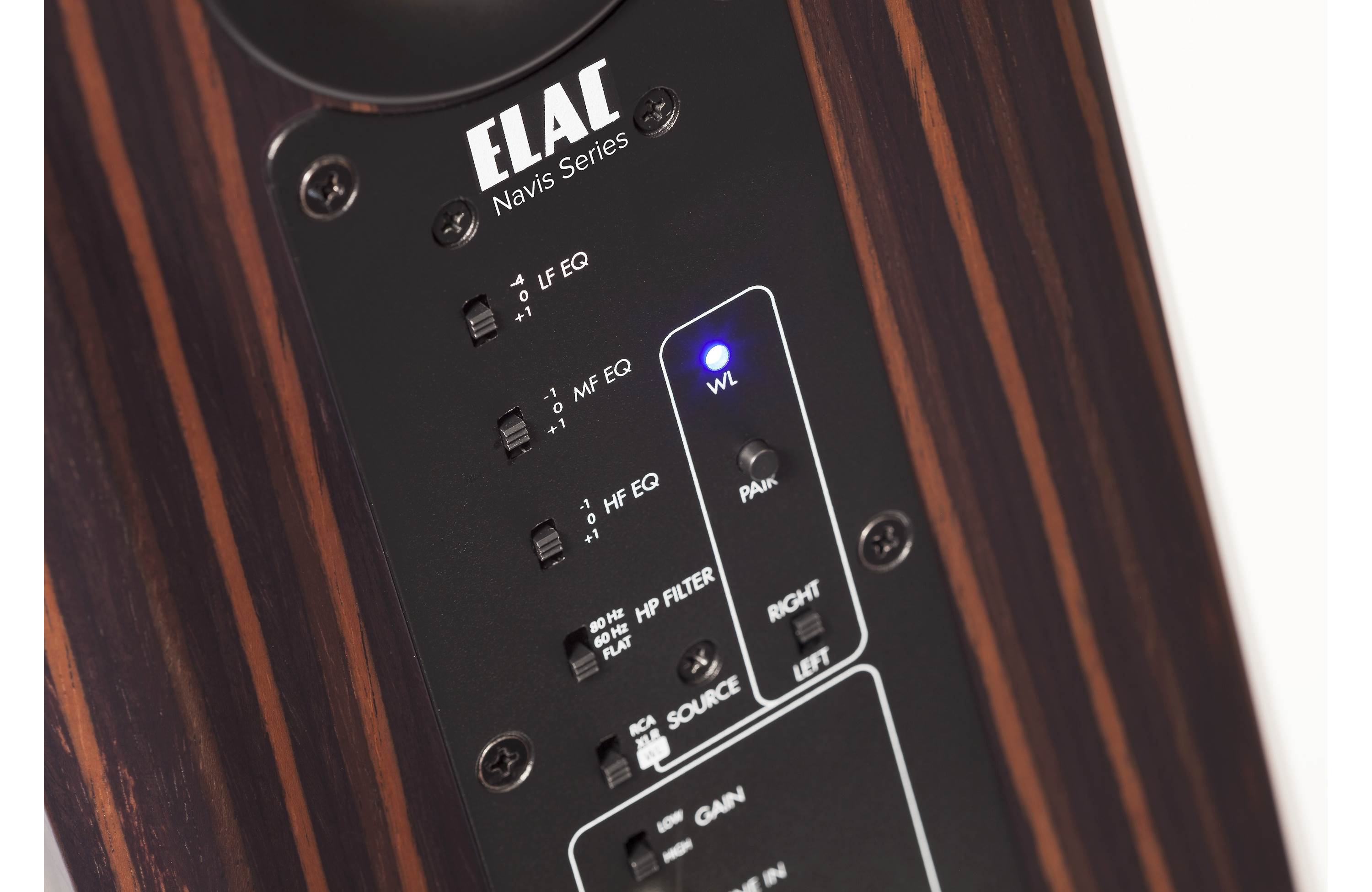

Local inputs include balanced XLR, RCA and Wireless, when used with ELAC’s Discovery Connect wireless transmitter to stream Discovery, Spotify Connect, Bluetooth, AirPlay and Roon. Just switch Wireless “Off” for a no-compromise analog input and output.

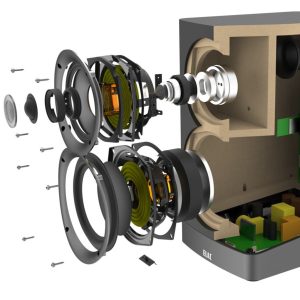

ELAC NAVIS Series Speakers - Beautiful Cabinets

Beautiful Cabinets

Navis’s elegant design integrates perfectly with any interior. Its enclosure has a fine-furniture finish, available in Gloss Black, Gloss White and Wood Veneer. A dedicated floor stand completes the installation, and is recommended for optimum
performance.

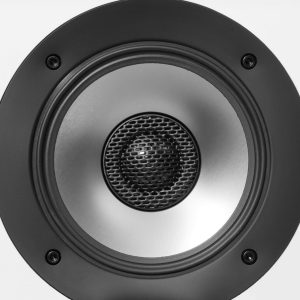

ELAC NAVIS Series Speakers - Midrange/Tweeter

Midrange/Tweeter

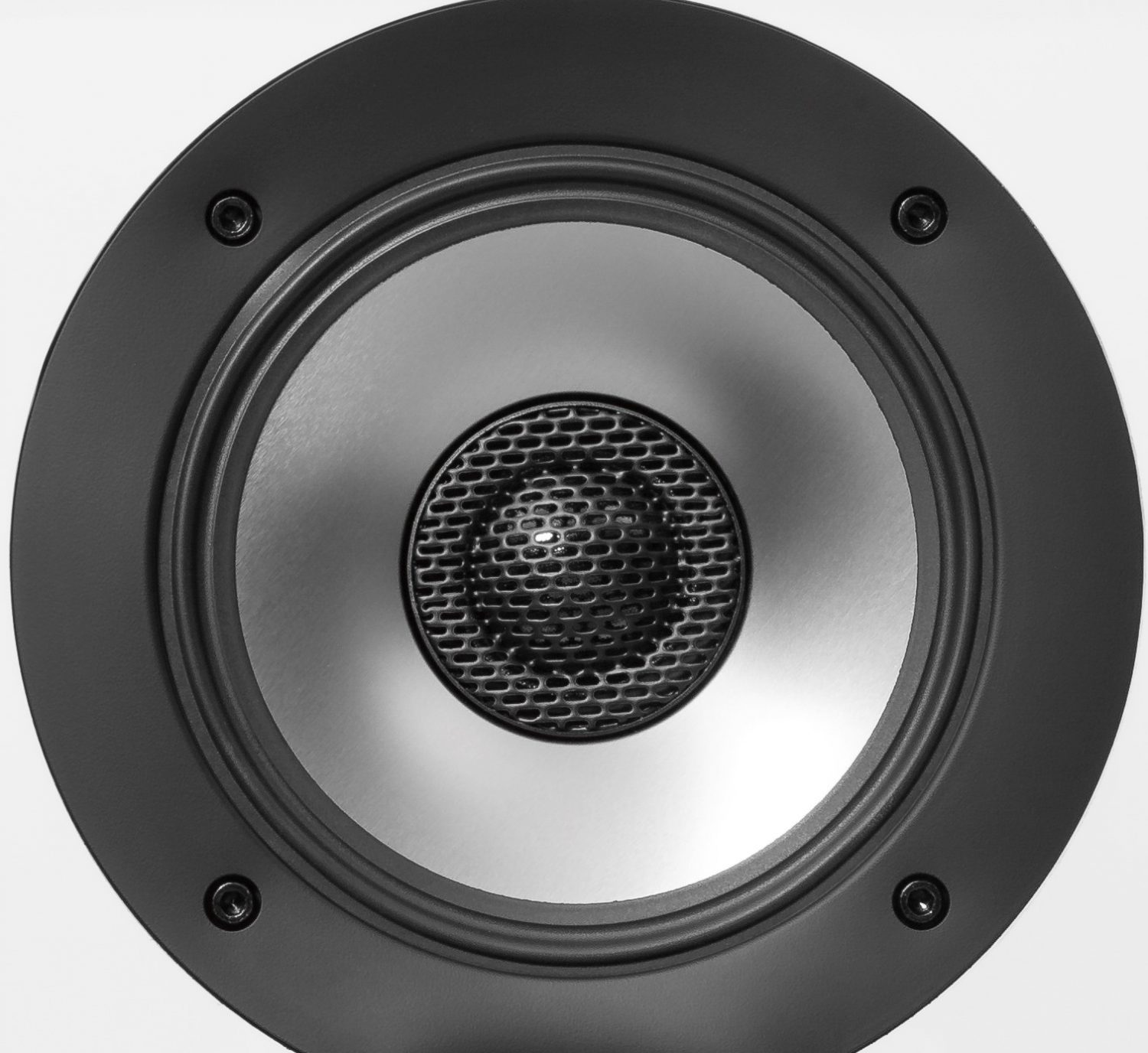

One reason the Navis sounds so natural is because of its in-house developed transducer, a 4-inch aluminum midrange driver with a concentrically mounted 1-inch soft-dome tweeter. Combined, this signature configuration lets Navis set the performance standard for its class.
