Miracord 60 – MRC-601

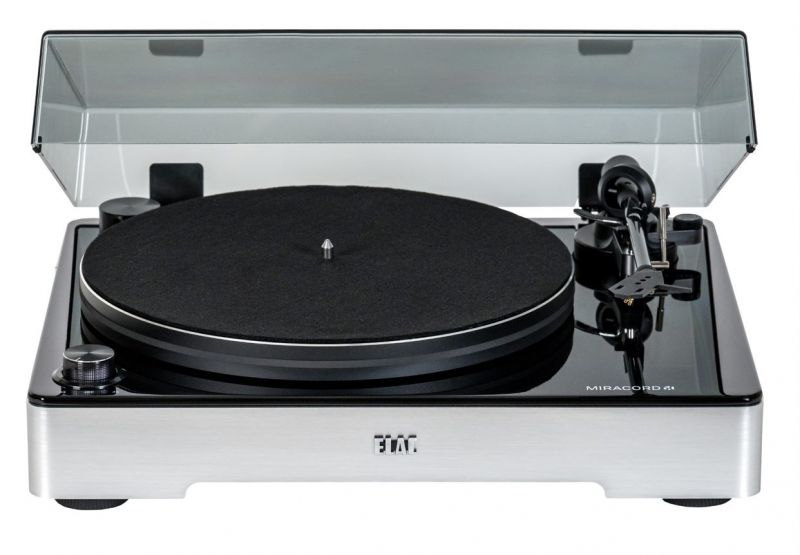

ELAC Miracord 60 - MRC-601 turntable
ELAC Miracord 60 - MRC-601 pic2 ELAC Miracord 60 - MRC-601  pic4 ELAC Miracord 60 - MRC-601  pic3
949

  • Tonearm: Carbon Fibre Tone Arm: A light-weight carbon fi bre tone arm with gimbal bearing and a removable headshell offers fl exibility in the choice of cartridge
  • Platter: The Miracord 60 is equipped with a massive diamond chamfered piece of engineering art made of 22 mm die-cast aluminium
  • Servo controlled DC motor: A built-in optical sensor, that sends its signal to a PID algorithm in the microcontroller which will then tune the speed of the DC motor

In 2016 the name Miracord was re-established in the high-end audio community.

3 years and 3 product launches later, the Miracord 60 is ready to continue the unique ELAC Audiophile Turntable Saga.

The Miracord 60 was designed to bring the world-renowned and eye-catching design of the successful Miracord 90 to a new class of ELAC turntables. The result is a turntable that does not deny its lineage while emphasizing its individuality. The new Miracord 60 embodies the meaning of smooth vinyl precision to perfection and timeless, elegant design.

Specifications
Principle
Belt-drive turntable
Tonearm type
Carbon fiber tube
Effective tonearm length
appr. 10“
Speed accuracy
+/- 0.33 % @ 3 kHz
Wow & flutter
< 0.12 %
Crosstalk damping
> 25 dB
Connectivity
Gold plated RCA jacks, ground terminal
Speed 33.3 and 45 rpm
Platter 22 mm die-cast aluminum
Drive optically controlled platter rotation speed, PID-controlled DC motor, belt drive
Power consumption 1.5 W (less than 0.5 W in standby)
Power Supply
12 V / 0.5 A using supplied DC-adaptor or 18 V / 0.5 A via Lumberg connector
Finishes
silver chassis and gloss-black plinth
ELAC Miracord 60 brochure ELAC Miracord 60 manual
Brochure Manual


Miracord 60 – MRC-601 Features:

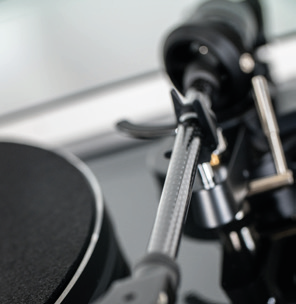

ELAC Miracord 60 - MRC-601 - Carbon Fibre Tonearm

Carbon Fibre Tone Arm

A light-weight carbon fi bre tone arm with gimbal bearing and a removable headshell offers fl exibility in the choice of cartridge.

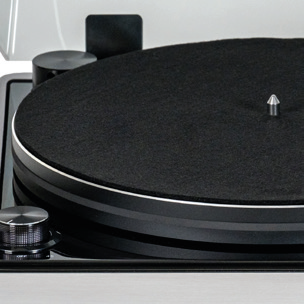

ELAC Miracord 60 - MRC-601 - Aluminium Platter

Aluminium Platter

The Miracord 60 is equipped with a massive diamond chamfered piece of engineering art made of 22 mm die-cast aluminium.

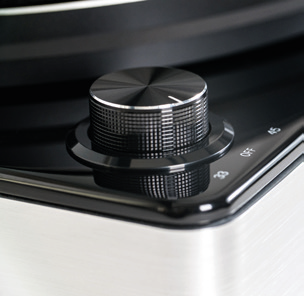

ELAC Miracord 60 - MRC-601 - Servo controlled DC motor

Servo controlled DC motor

A built-in optical sensor, that sends its signal to a PID algorithm in the microcontroller which will then tune the speed of the DC motor.
