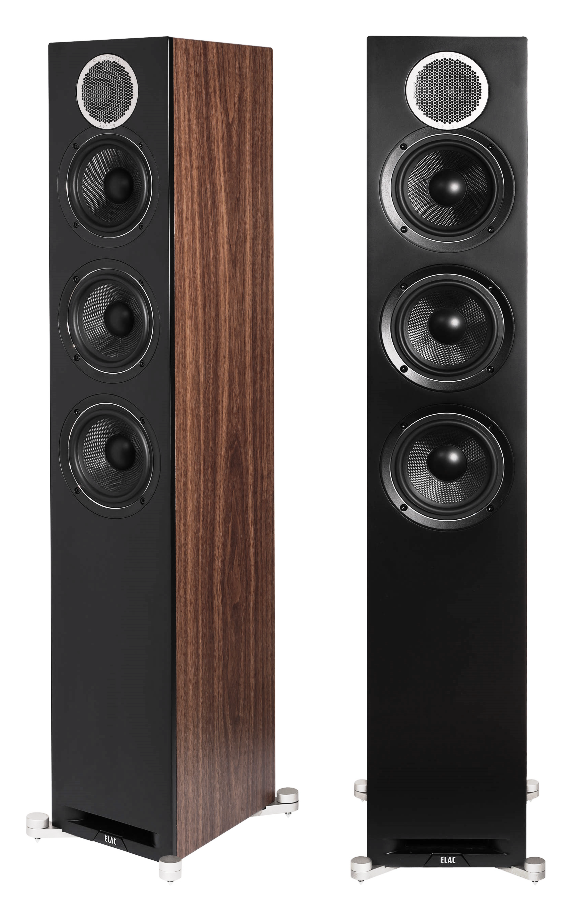

ELAC Debut Reference DBF52

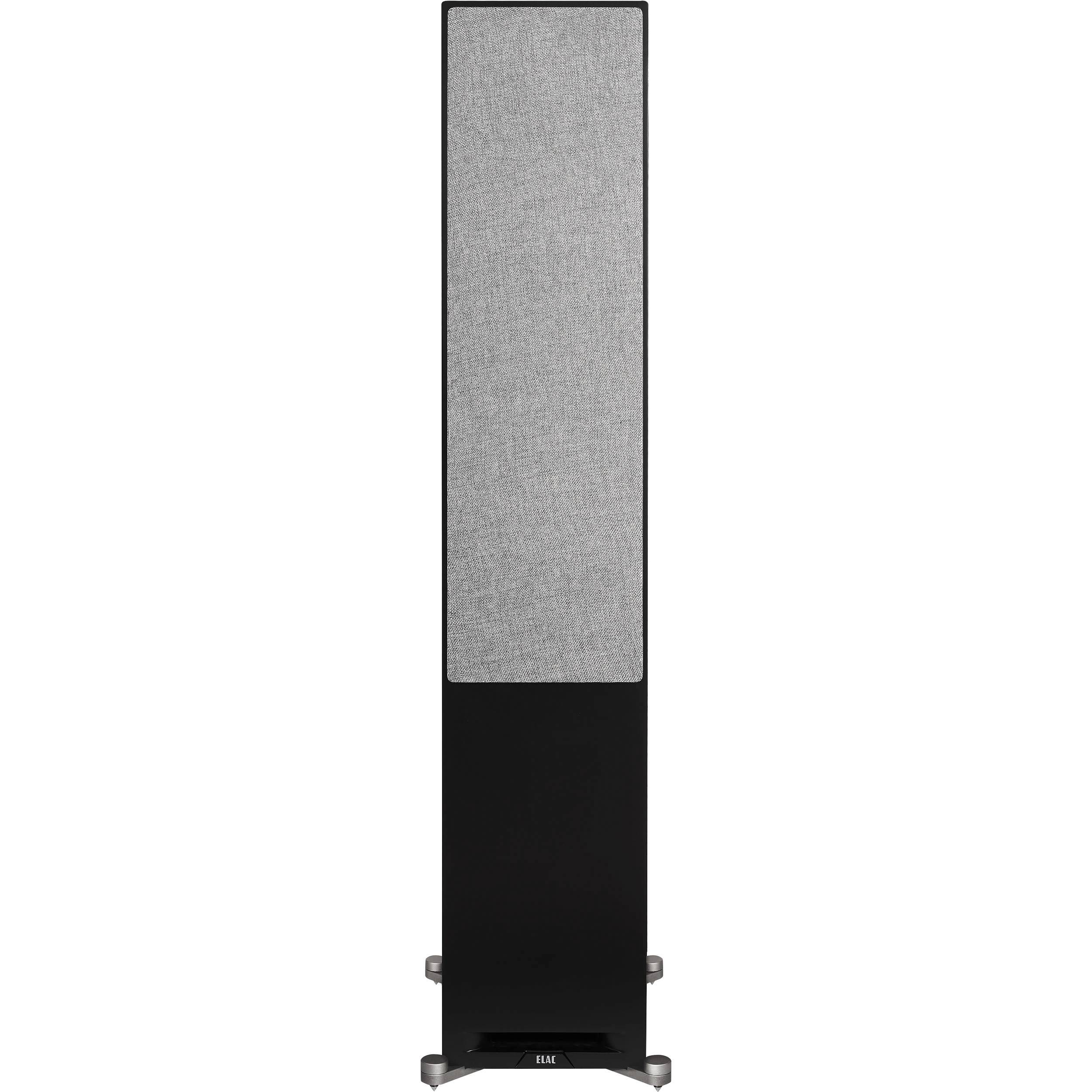

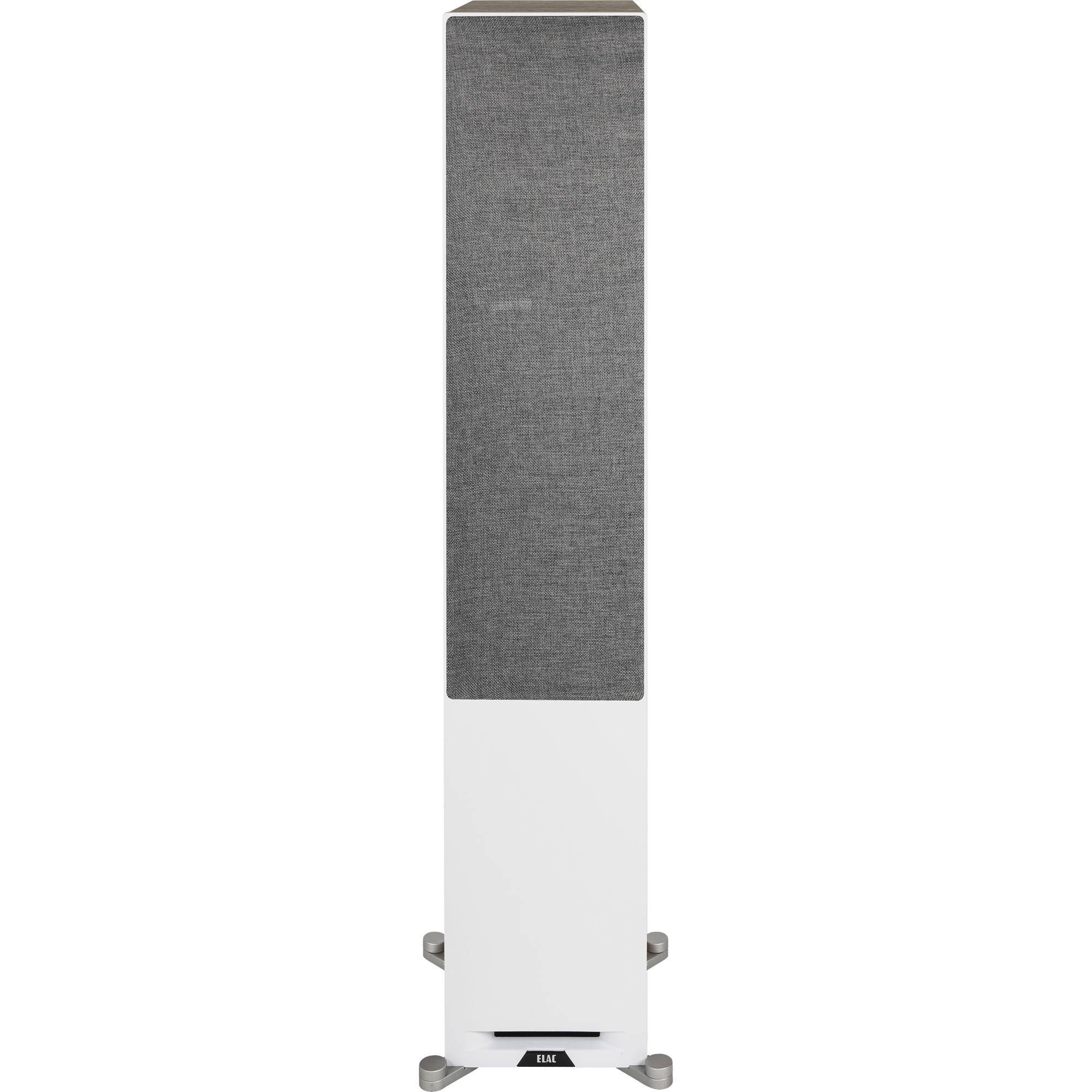

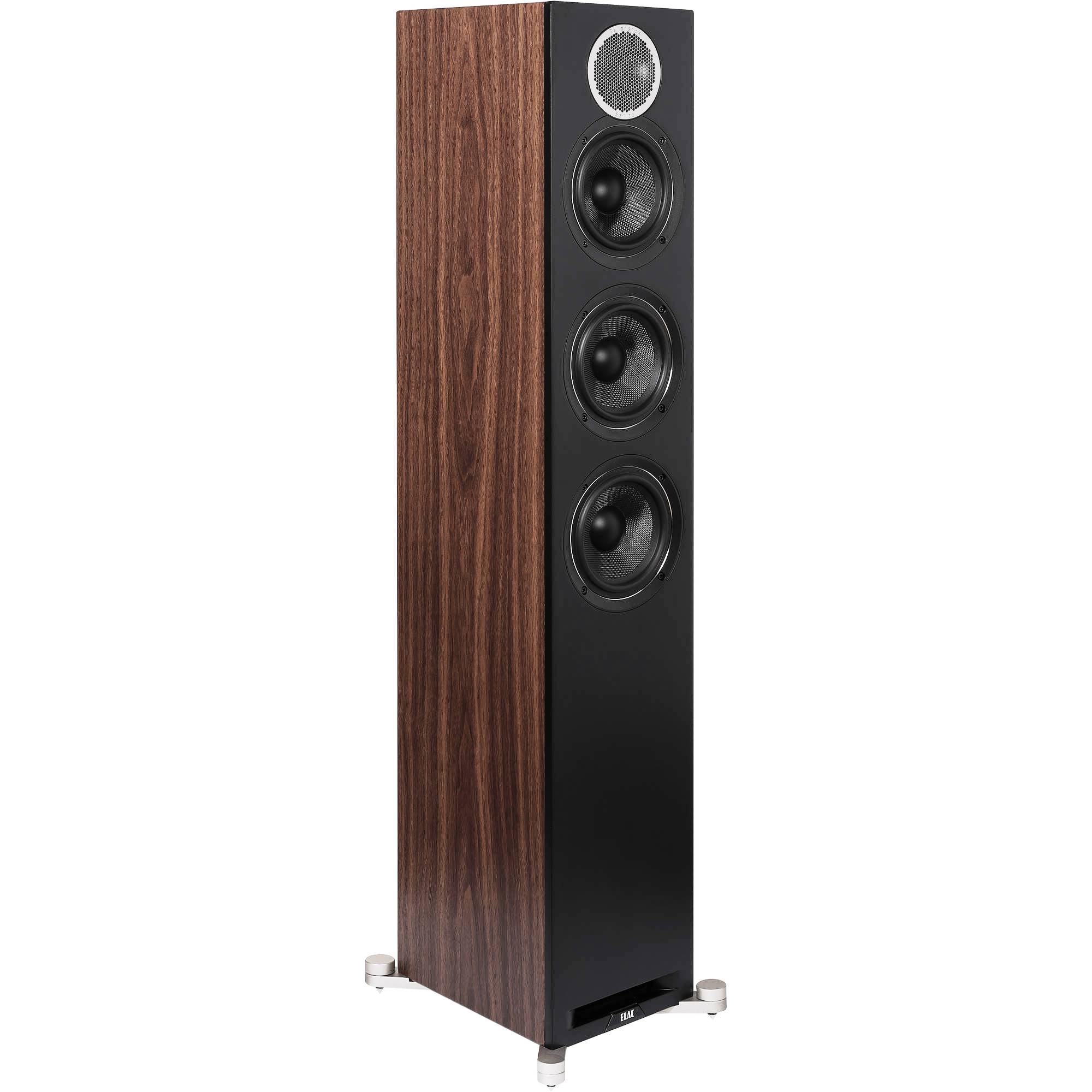

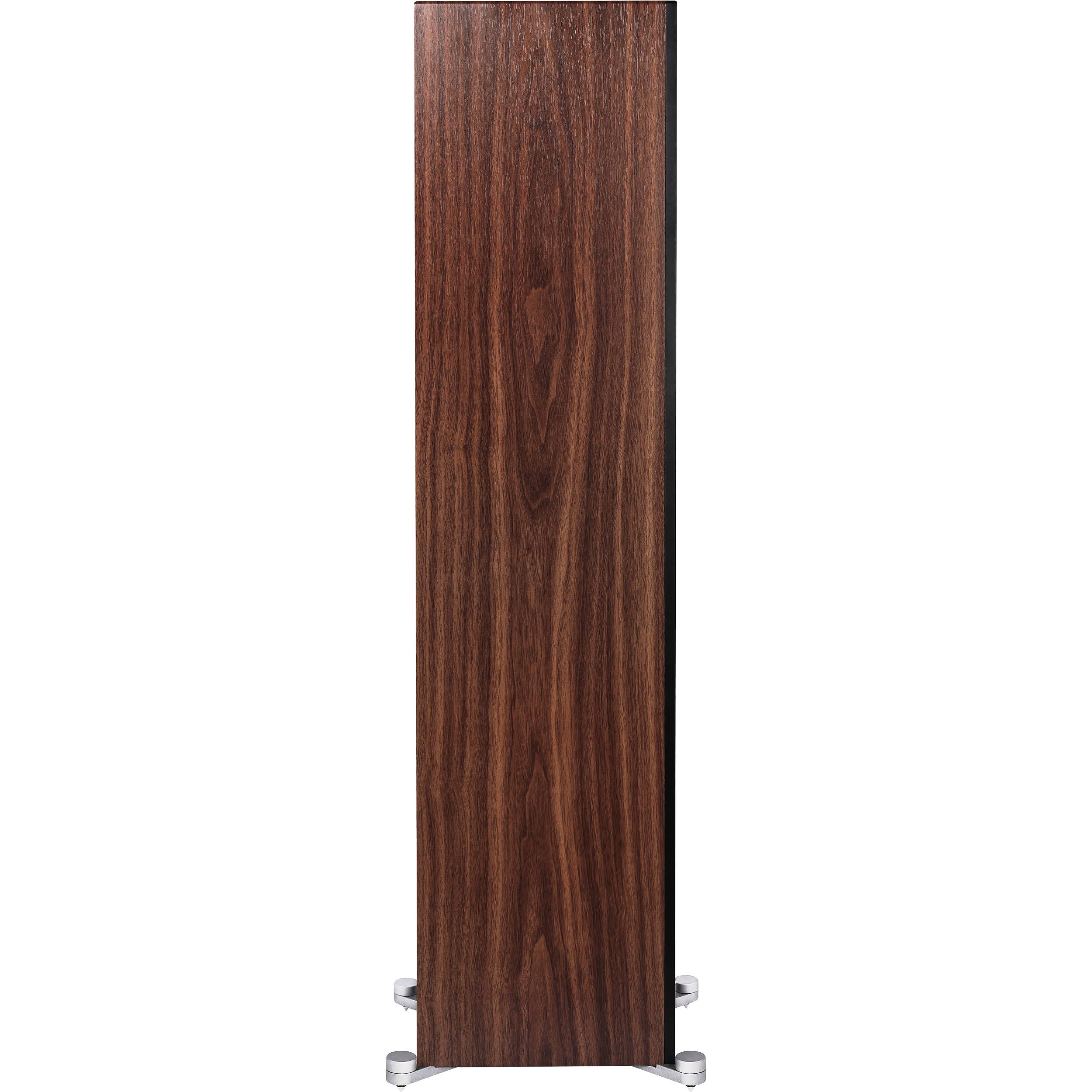

elac debut reference dbf52 black baffle walnut cabinet pic1 elac debut reference dbf52 black baffle walnut cabinet pic5 elac debut reference dbf52 black baffle walnut cabinet pic6 elac debut reference dbf52 white baffle walnut cabinet pic2 elac debut reference dbf52 white baffle walnut cabinet pic5 elac debut reference dbf52 white baffle walnut cabinet pic6

1198

Area DVD magazin
Magazine 02/2020

ELAC Debut Reference DBF52: Price range: "reference"

Advantages: very good workmanship; great material quality; simple design; excellent sound; strong bass; good spatial representation; low price for what is offered.
Disadvantages: Bi-wiring is missing; installation critical.

Strengths: price / performance ratio; strong bass; very good resolution; nice look

  • 5.25 Inch Aramid Fiber Cast Chassis Bass and Midrange drivers: Our new cast chassis woofer provides improved stiffness for both strengthening the front baffle and minimizing chassis resonances
  • 1″ Cloth Dome Tweeter: Improved High Frequency Reponse from our newly developed waveguide combined with a more open grill design enhances upper high frequency response

The Debut Reference Floorstanding Speakers

Building on the iconic status of ELAC’s Debut Series, a new Reference line emerges for our exclusive dealers. The Debut Reference brings significant acoustical and visual advancements. Designed to blend with traditional or contemporary styles. Debut Reference sounds as great as it looks!

Specifications
Dimensions H × W × D
1016 ×185 × 242 mm
Weight
16.7 kg
Principle
3-way, bass reflex
Woofers
2 × 140 mm Aramid Fiber Cone, Cast Chassis
Midrange
1 × 140 mm Aramid Fiber Cone, Cast Chassis
Tweeter
1 × 25 mm Cloth Dome Tweeter
Maximum Power Input
140 W
Crossover Frequencies
900/2,200 Hz
Sensitivity
87 dB / 2.83 V / 1 m
Nominal Impedance
6 Ω
Frequency Range
acc. to IEC 268-5
42··· 35,000 Hz
Cabinet Finish

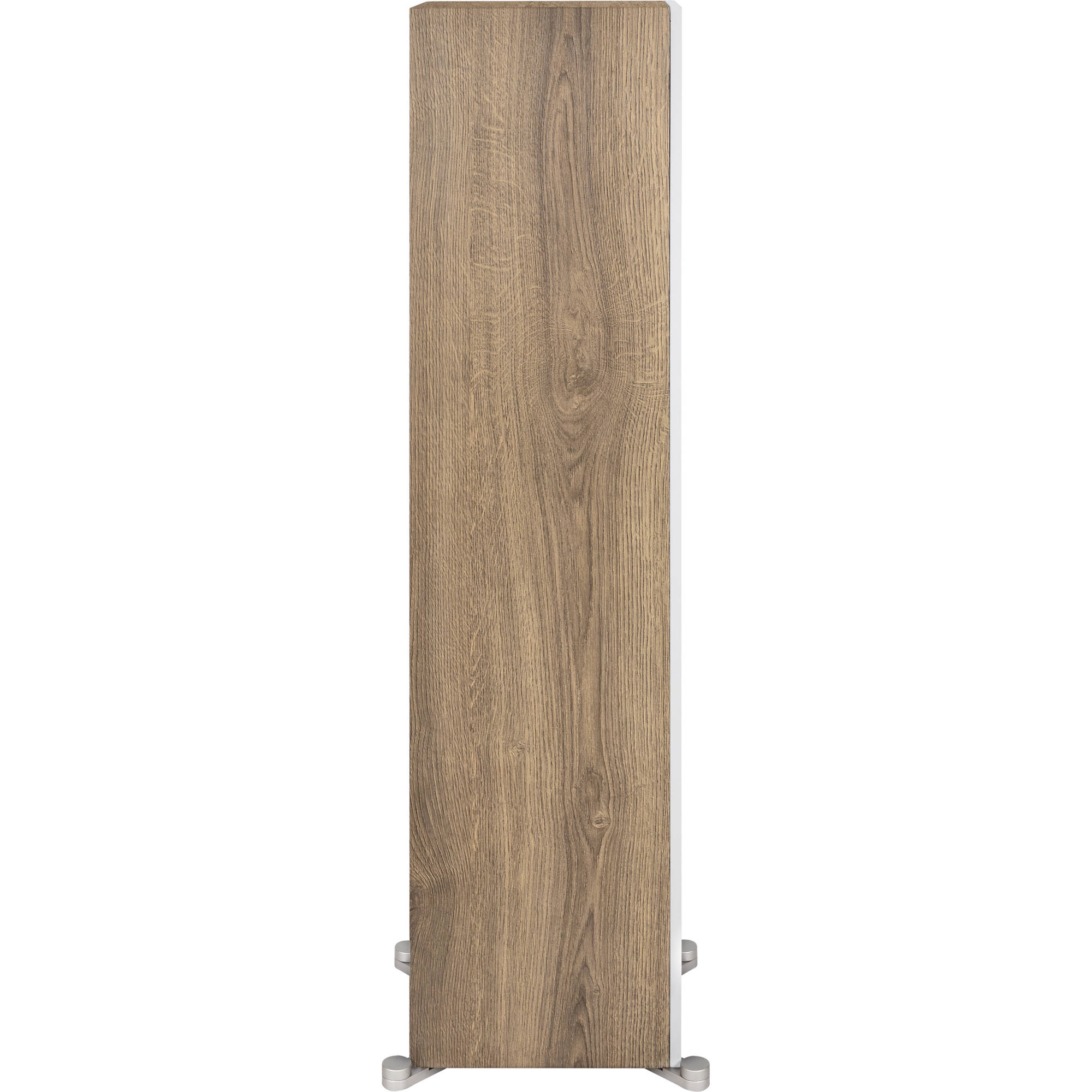

White Baffle/Oak Cabinet, Black Baffle/Walnut Cabinet
ELAC Debut Reference Series brochure

ELAC Debut Reference Series by Andrew Jones

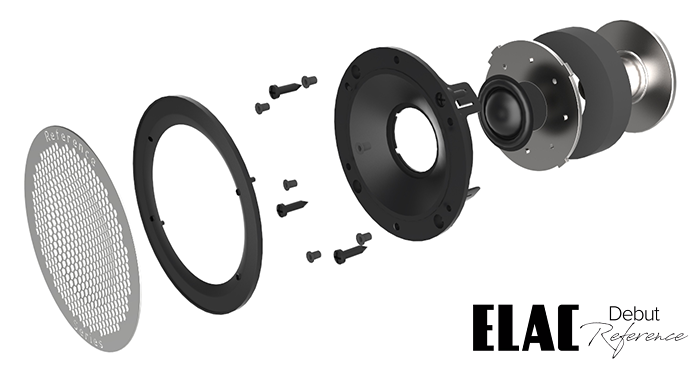

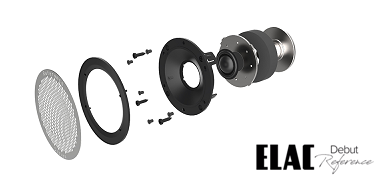

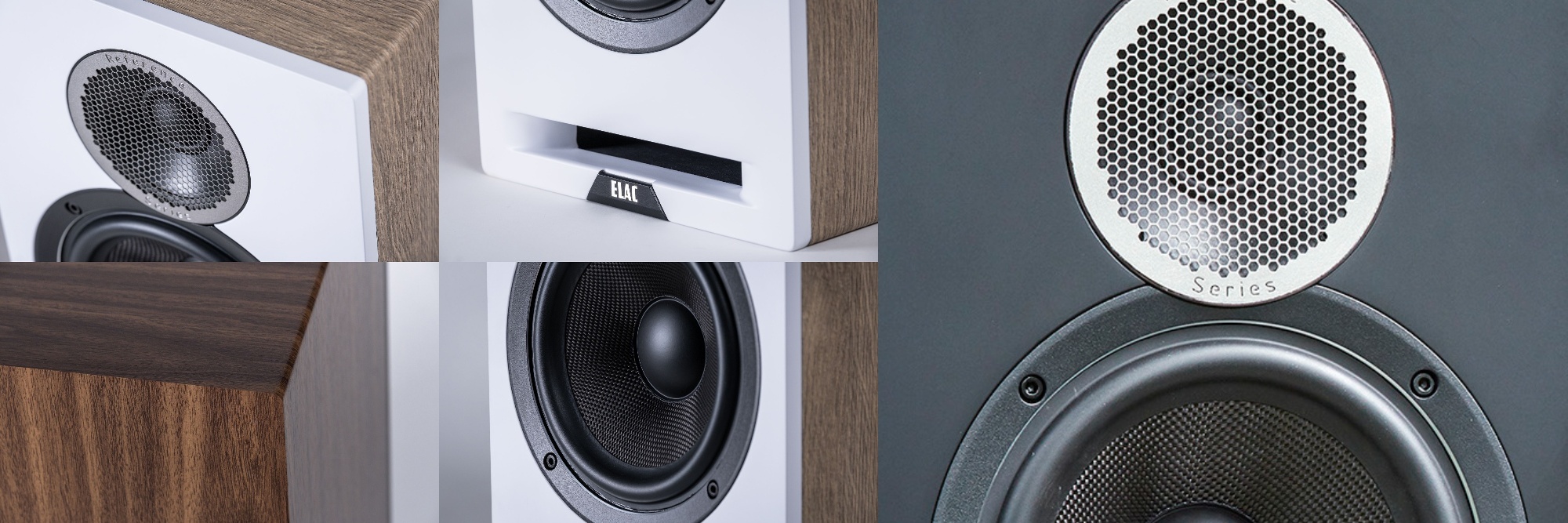

ELAC Debut Reference Series tweeter

1″ Cloth Dome Tweeter:

Improved High Frequency Reponse from our newly developed waveguide combined with a more open grill design enhances upper high frequency response

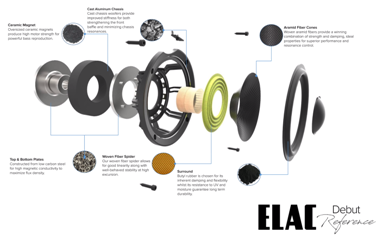

ELAC Debut Reference Series midbass

5.25 Inch Aramid Fiber Cast Chassis Bass and Midrange drivers:

Our new cast chassis woofer provides improved stiffness for both strengthening the front baffle and minimizing chassis resonances
