ELAC Debut Reference DBR62

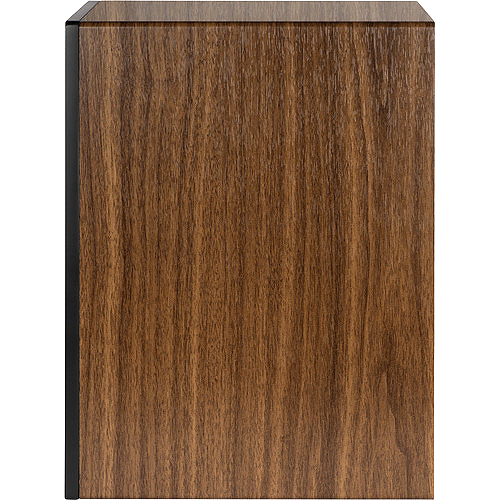

ELAC Debut Reference DBR62 black baffle walnut cabinet pic1 ELAC Debut Reference DBR62 black baffle walnut cabinet pic2 ELAC Debut Reference DBR62 black baffle walnut cabinet pic3 ELAC Debut Reference DBR62 black baffle walnut cabinet pic4 ELAC Debut Reference DBR62 black baffle walnut cabinet pic5 ELAC Debut Reference DBR62 black baffle walnut cabinet pic7 ELAC Debut Reference DBR62 black baffle walnut cabinet pic6
ELAC Debut Reference DBR62 white baffle walnut cabinet pic1 ELAC Debut Reference DBR62 white baffle walnut cabinet pic2 ELAC Debut Reference DBR62 white baffle walnut cabinet pic3 ELAC Debut Reference DBR62 white baffle walnut cabinet pic4 ELAC Debut Reference DBR62 white baffle walnut cabinet pic5 ELAC Debut Reference DBR62 white baffle walnut cabinet pic6 ELAC Debut Reference DBR62 white baffle walnut cabinet pic7

498

Lite magazin
Magazine 02/2020

ELAC Debut Refefrence DBR62: Price / performance: "Very good"

Advantages: very good workmanship; great material quality; simple design; excellent sound; strong bass; good spatial representation; low price for what is offered.

Strengths: clean sound with rich bass foundation, pleasant high-frequency reproduction, Bass reflex port on the front, neatly fitted chassis

  • 6.5 Inch Aramid Fiber Cast Chassis Midbass: Our new cast chassis woofer provides improved stiffness for both strengthening the front baffle and minimizing chassis resonances
  • 1″ Cloth Dome Tweeter: Improved High Frequency Reponse from our newly developed waveguide combined with a more open grill design enhances upper high frequency response

The Debut Reference Bookshelf Speakers

Building on the iconic status of ELAC’s Debut Series, a new Reference line emerges for our exclusive dealers. The Debut Reference brings significant acoustical and visual advancements. Designed to blend with traditional or contemporary styles. Debut Reference sounds as great as it looks!

Specifications
Dimensions H × W × D
359 × 208 × 275 mm
Weight
8.2 kg
Principle
2-way, bass reflex
Woofers
1 × 165 mm Aramid Fiber Cone, Cast Chassis
Tweeter
1 × 25 mm Cloth Dome Tweeter
Maximum Power Input
120 W
Crossover Frequencies
2,200 Hz
Sensitivity
86 dB / 2.83 V / 1 m
Nominal Impedance
6 Ω
Frequency Range
acc. to IEC 268-5
44··· 35,000 Hz
Cabinet Finish
White Baffle/Oak Cabinet, Black Baffle/Walnut Cabinet
ELAC Debut Reference Series brochure

ELAC Debut Reference Series tweeter

1″ Cloth Dome Tweeter:

Improved High Frequency Reponse from our newly developed waveguide combined with a more open grill design enhances upper high frequency response

ELAC Debut Reference Series midbass

6.5 Inch Aramid Fiber Cast Chassis Midbass:

Our new cast chassis woofer provides improved stiffness for both strengthening the front baffle and minimizing chassis resonances
