ELAC FS 207 Anniversary Edition

AudioStereo logo

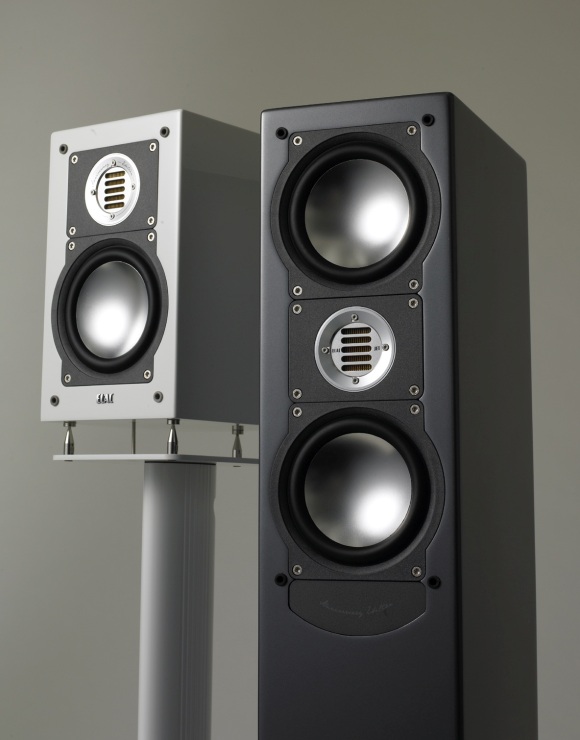

ELAC FS 207 Anniversary Edition & ELAC BS 203 Anniversary Edition


  << variante >>
ELAC FS 247 ATC SCM 19 XAVIAN XN Carisma Stereo Setup
FS 247 XN Carisma
ELAC FS 207 Anniversary Edition - LYD & BILDE (Norway) review
ELAC FS 207.2 - Australian Hi-Fi (Australia) review
ELAC JET III Anniversary Edition tweeter
  • TT150AS: doua difuzoare midbass cu membrane sandwich hartie-aluminiu
  • JET III: tweeter cu tehnologie Air-Motion-Transformer (folded foil) Anniversary Edition

Hi-tech optic si acustic

Pentru a celebra aniversarea a 80 de ani de existenta, am introdus incinta acustica FS 207 intr-un nou design. Acesata incinta gratioasa de podea nu impresioneaza doar prin optica sa, fiind un produs perfectionat ca tehnologie si design. Acustica si filtrul crossover au fost optimizate cu ajutorul computerului si permit un patern acustic optim de directionalitate constanta. Acest lucru se aplica in intreaga banda de frecvente si are un efect pozitiv asupra redarii difuzoarelor midbass.

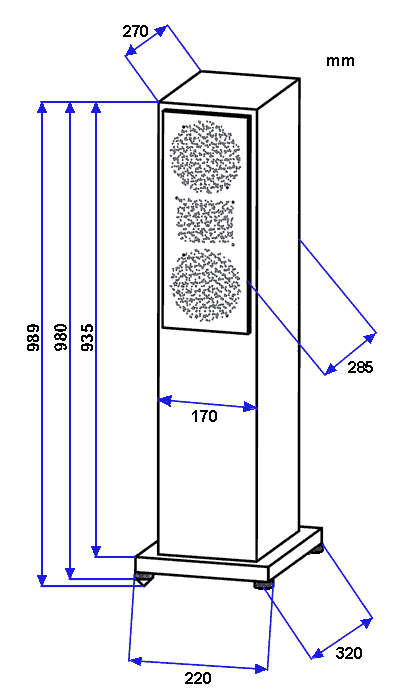

Dimensions H × W × D
989 × 170 × 270 mm Details
220 × 320 mm base plate
Gross Volume
43 l
15 kg
2½-ways, bass reflex
Bass Ports
2 × 150 mm AS cone (mag. shielded)
2 × 60 mm (with Bass Control Plug)
1 × JET III (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
30-250 W / channel
Crossover Frequency
350 / 2,700 Hz
89 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.4 Ohm / 220 Hz
Frequency Range
36 ··· 50,000 Hz
Nominal / Peak Power Handling
120 / 160 W
black high gloss
white high gloss
ELAC FS 207 Anniversary Edition brochure

Treble Unit

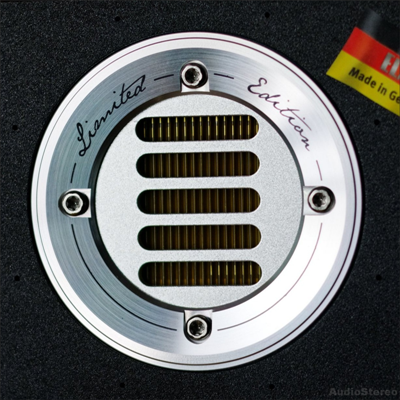

ELAC JET III tweeter used in all 200 Anniversary Series range

The ELAC JET tweeter is one of the most legendary tweeters in the hi-fi trade and has won international renown with its unusual transparent and effortless sound image.

The JET tweeter was delveloped to perfection on the basis of the famous 'Air Motion Transformer' by loudpseaker pioneer Dr Oskar Heil. Its principle: a concertinaed foil membrane is driven by a strong magnet system of neodymium rods.

This 'motor' drives the air considerably faster than the conventional pistonic technique. High sensitivity and extraordiary dynamics are the result. Due to continuous improvement, the JET III tweeter creates an effortless and airy resonance-free image up to 50,000 Hz, and with its linear frequency response is ideally suited for the reproduction of Hi-Res Audio music.

ELAC JET DC (Dispersion Control) ring

The ELAC "JET Dispersion Control DC" is a flat ring made of open-cell rubber foam which is mounted around the JET orifice with four clasps (or with adhesive tape).

The JET DC results in a broadband reduction of about 0.5 dB of the radiated sound level nearly independent of frequency. The JET DC is best suited for rooms with little sound absorption at high frequencies, especially for rooms with large windows without curtains or with a smooth floor without a carpet.

Note: The loudspeakers of the 200 Anniversary series are not supplied with the JET Dispersion Control - this is an optional accessory.

Midbass Unit

TT 150 AS used in : BS 203 A, FS 207 A.

The woofers of the 200 Series are designed in the ELAC proprietary aluminium sandwich technique. In a special glueing procedure, an aluminium foil of 0.2mm is joint to a pulp fibre cone to form a sandwich membrane. The result: reduced partial oscillations, no distortions and an optimised large signal behaviour.

ELAC AS cone - paper-aluminium sandwich
