ELAC Debut B6

na

  << variante >>
ELAC BS 203 Anniversary Edition XAVIAN Bonbonus disponibile in Demo
ATC SCM 7 disponibile in Demo
BS 203 A Bonbonus

  • Midbass: 6.5-inch woven aramid-fiber cone with oversized magnet and vented pole piece
  • Tweeter: 1-inch cloth  dome with custom deep-spheroid waveguide

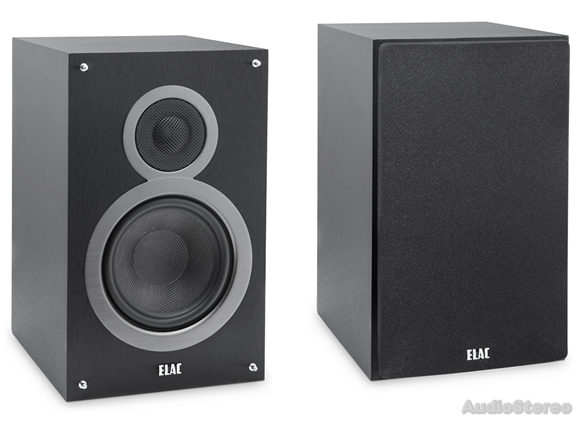

ELAC Debut B6

One step up yet still compact: The B6 matches the sound profile of the B5, but adds an extra dollop of bass and dynamic range thanks to its larger woofer and cabinet volume – making it a stand-out choice for larger rooms.

Custom-Designed by Andrew Jones: ELAC Debut B6 Bookshelf Loudspeaker Plays With Serious Punch, Genuine Bass, Standout Dynamics

Acclaimed audio designer Andrew Jones doesn't just raise the bar on price-to-performance bookshelf loudspeaker value with the ELAC Debut B6. He makes it almost unreachable. Jones, who established an enviable pedigree at TAD/Pioneer, brings to the ELAC Debut line the same brand of technical smarts and stellar sonics at a price that practically anyone can afford. The high-quality parts, engineering expertise, and customized arrays in the two-way Debut B6 cannot be found anywhere else for this cost. It's that simple. Once you hear Debut B6 used either as a main in a small system or a surround in a multichannel setup, you'll know exactly why this speaker is so special. It hits with serious punch, genuine bass, and standout dynamics. Jones custom-designed the tweeter and bass drivers in Debut B6, which also boasts a 6.5-inch woven aramid-fiber woofer with oversized magnets and vented pole pieces. A cloth-dome tweeter, deep-spheroid waveguide, customized seven-element crossover, and handsome looks seal the deal.

“The rare achievement of true audiophile quality at a low price. Speaker shoppers always want bargains -- speakers that blow away the competition at a rock bottom price without sacrificing quality. The ELAC Debut B6 is that speaker. It's a stunning achievement.”
- Steve Guttenberg, CNET, 5-star rating

Andrew Jones-Designed Drivers Match Intricate Crossover, Spheroid Waveguide
Andrew Jones custom-designed both the tweeter and bass driver to deliver an exceptional audio experience that can't be delivered with typical off-the-shelf parts. A custom crossover with audio-grade components ensures smooth transition between drivers. In addition, a custom-designed tweeter waveguide with a deep spheroid profile improves directivity control and shields the tweeter wavefront from cabinet diffraction.

Aramid-Fiber Cones Add Strength and Smoothness
Woven aramid fiber offers a superior stiffness-to-weight ratio and damping over common polypropylene or paper cones. The added strength allows more flexibility in design to achieve a smoother, extended frequency response.

Specifications
Dimensions H × W × D
356 × 216 × 254 mm
Weight
6.5 kg
Principle
2-way, bass reflex
Woofers
1 × 165 mm cone, (mag. shielded)
Tweeter
1 × 25 mm silk dome, (mag. shielded)
Maximum Power Input
120 W
Crossover Frequencies
3,000 Hz
Sensitivity
87 dB / 2.83 V / 1 m
Nominal Impedance
6 Ω (minimum 6 Ω)
Frequency Range
acc. to IEC 268-5
44··· 20,000 Hz
Cabinet Finish
Black Brushed vinyl
ELAC Debut series brochure

Treble Unit

ELAC Debut Tweeter: 1-inch cloth dome with custom deep-spheroid waveguide
ELAC Debut Tweeter: 1-inch cloth dome with custom deep-spheroid waveguide

1-inch cloth-dome deep-spheroid waveguide tweeter with oversized magnet

A custom-designed tweeter waveguide with a deep spheroid profile improves directivity control and shields the tweeter wavefront from cabinet diffraction.



Midbass Unit

ELAC Debut Midbass: 6.5-inch woven aramid-fiber cone with oversized magnet and vented pole piece
ELAC Debut Midbass: 6.5-inch woven aramid-fiber cone with oversized magnet and vented pole piece

6.5-inch woven aramid-fiber woofer with oversized magnet and vented pole piece

Woven aramid fiber offers a superior stiffness-to-weight ratio and damping over common polypropylene or paper cones. The added strength allows more flexibility in design to achieve a smoother, extended frequency response.
