ATC CD2 Features:

• High performance TEAC CD Transport
• Premium AKM 32-bit DAC
• ATC Discrete class-A output buffers
• Balanced XLR and Un-balanced RCA outputs
• Coaxial & TOSLINK Digital Outputs
• 6 year warranty (TWO years on CD mechanism)
• Hand built in the UK

Overview

This compact high-performance CD digital audio source has been designed to offer exceptional performance and compatibility with a very wide range of partnering electronics both from ATC and other high-quality manufactures.  Styling compliments ATC’s full range of audio electronics, but its small form factor (2/3 width) makes it the perfect partner to the equally compact SIA2-100 integrated amplifier whilst occupying very little space in the home.

Specifications

Maximum Output Level: Phono 9.2V r.m.s, XLR 18.4V r.m.s.
Output Impedance: 10 Ohms
S+N/N Ratio: IEC“A” >112dB, DIN <108dB
Output XLR CMRR (100Hz – 10kHz): <60dB
Distortion: 1kHz < 0.0015% (-96dB) 10kHz < 0.003% (-90dB)
Frequency Response (20Hz–20kHz): +/- 0.2dB
S/PDIF Outputs: Toslink, Coaxial 2V pk-pk, source impedance 75Ohm
Dimensions (HxWxD): 77 x 315 x 315mm (dimensions exclude rear panel connectors)
Weight: 4.2kg

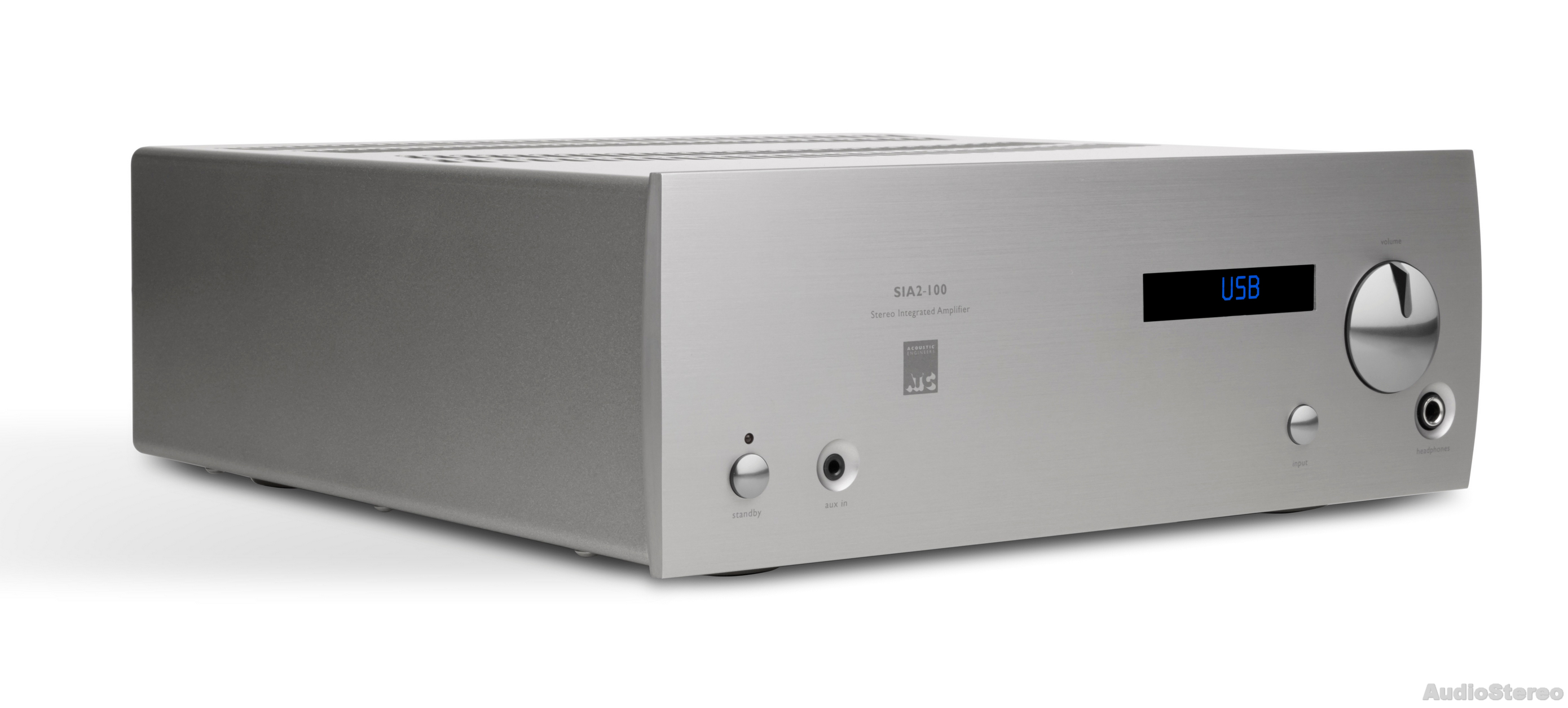

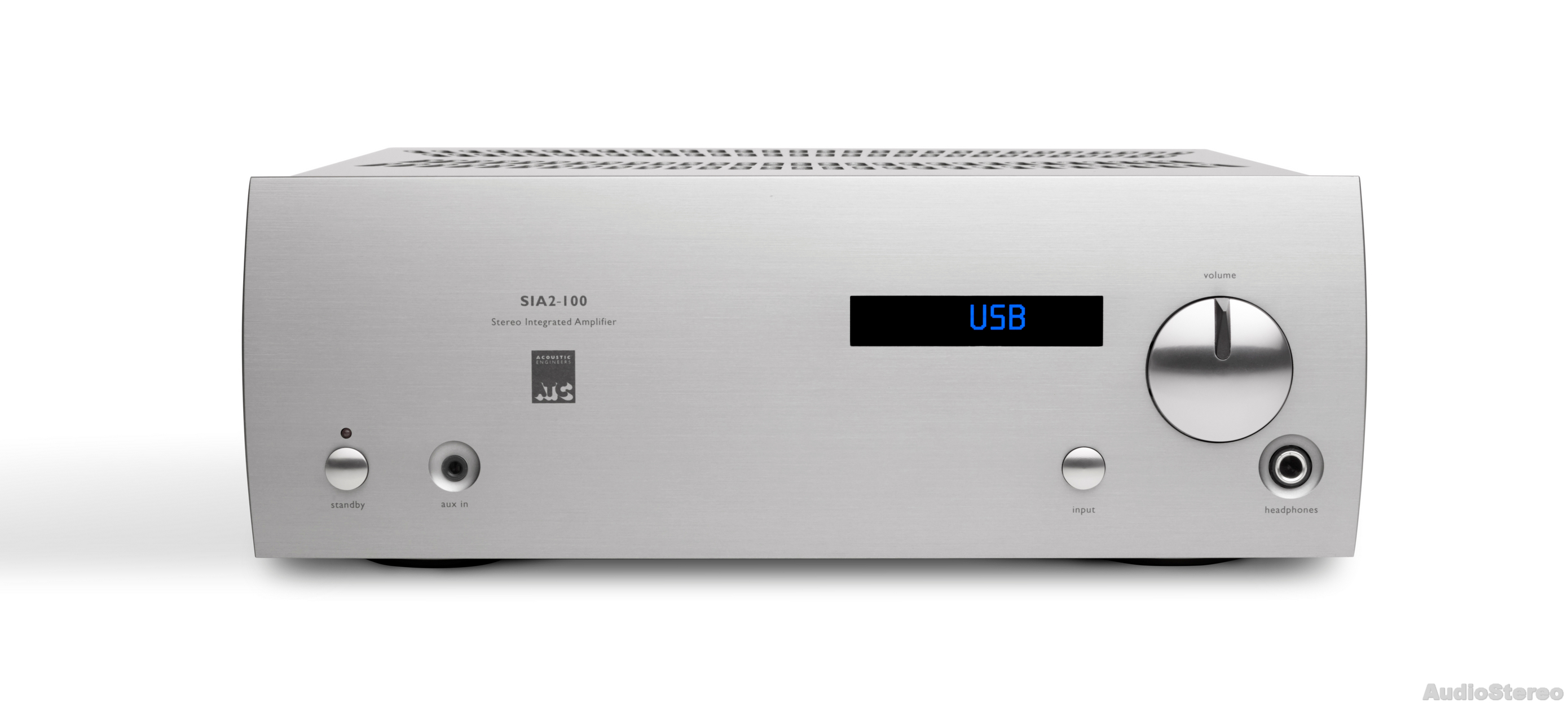

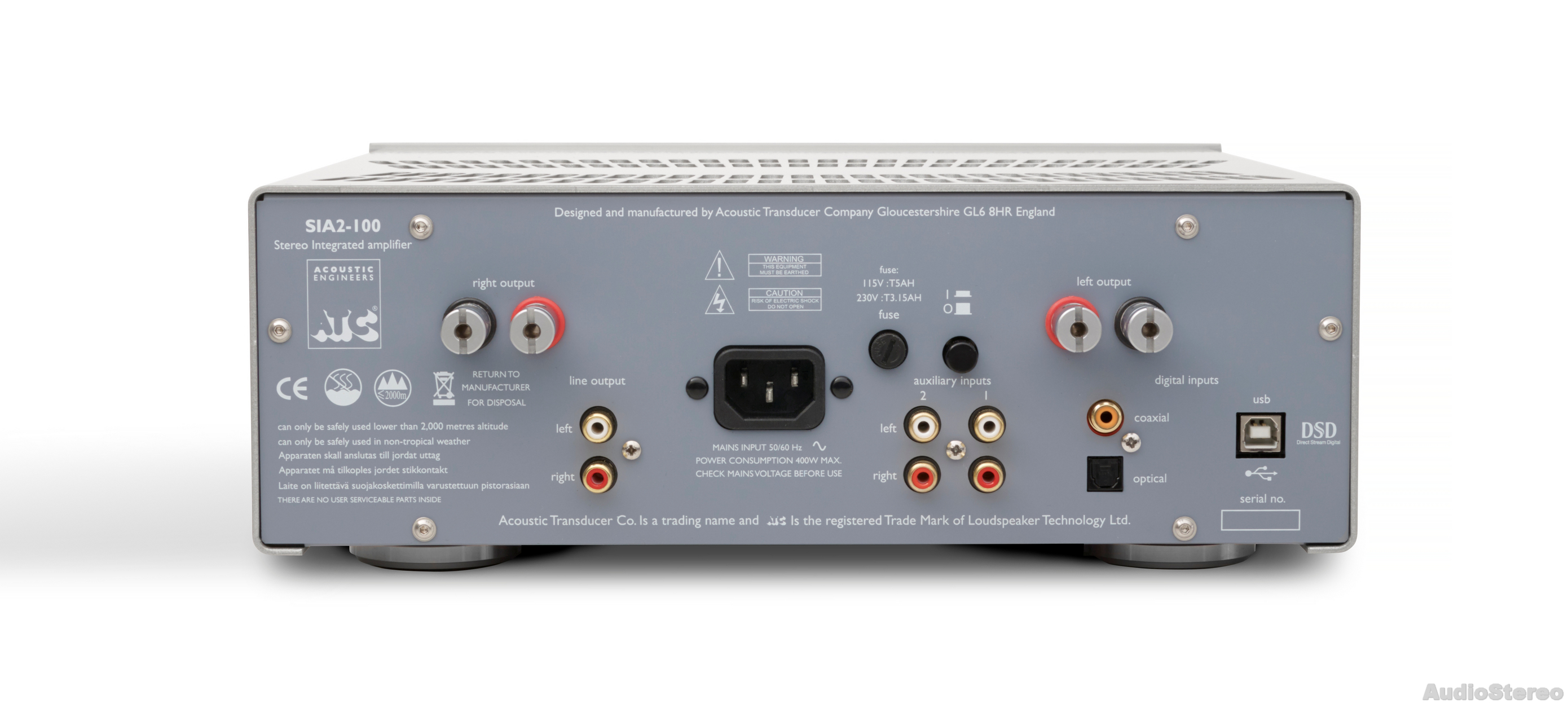

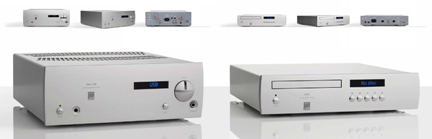

CD2 & SIA2-100
