ATC SIA2-100 Integrated NEW

AudioStereo logo


ATC SIA-2100 stereo integrated amplifier+ DAC

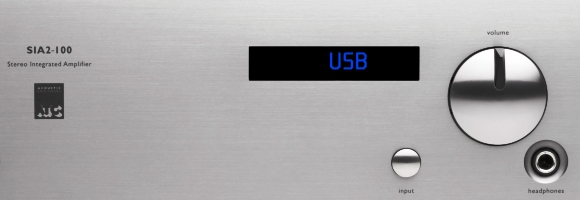

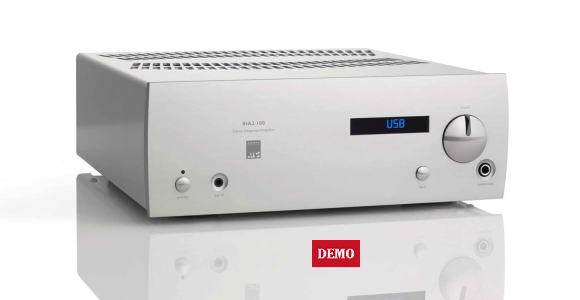

ATC SIA-2100 side ATC SIA-2100 front ATC SIA-2100 back

£2500

* * *

ATC SIA2-100 Integrated Features:

  • ATC Discrete MOSFET Output Stage with 100W/Ch. Max. Cont. Power
  • 3 x digital inputs: USB, Coaxial, TOSLINK
  • 2 x line level analogue inputs
  • 1 x analogue line outoput
  • Premium AKM 32-bit DAC
  • USB digital input supports up to 384kHz PCM data, native DSD256 support via PC and up to DSD128 via Mac
  • Headphone amp featuring discrete output stage
  • 6 year warranty
  • Hand built in the UK

Overview

Compact in size (2/3 width) yet offering high power output and exceptional resolution, this integrated amplifier with on-board DAC is ideally suited to driving ATC’s small & mid-size passive loudspeakers and a very wide range of loudspeakers from other manufacturers.  Understated styling makes it easy to integrate with partnering equipment whilst its small footprint occupies very little space in the home.

Specifications

Output Power into 8 Ω: 100W (continuous, 1kHz, both channels driven)
Line Inputs: Two, stereo (one with additional front panel 3.5mm jack)
Line Input Sensitivity: 500mV
Input Impedance: 13k8 Ohms
Line Outputs: One, stereo
Overload Capacity: 13dB
Line Output Impedance: 10 Ohms
Frequency Response (-3dB): < 2Hz – 250kHz
Total Harmonic Distortion: 1kHz <0.0015% (-96dB), 10kHz <0.002% (-90dB)
Crosstalk: >80dB (10Hz – 20kHz)
S+N/N Ratio: IEC “A” > 112dB, DIN > 108dB
Dimensions (HxWxD): 113 x 315 x 315mm (dimensions exclude rear panel connectors)
Weight: 9.70kg

DIGITAL INPUTS – COAXIAL & OPTICAL

Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response (+/- 0.1dB): 20Hz – 20kHz
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 24 Bit
Sample Rates Supported: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz (192kHz supported via coaxial input only)

DIGITAL INPUTS – USB (PCM)

Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response (+/- 0.1dB): 20Hz – 50kHz
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 32 Bit
Sample Rates Supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96.0kHz, 76.4kHz, 192.0kHz, 352.8kHz, 384.0kHz

DIGITAL INPUTS – USB (DSD)

Frequency Response (+/- 0.1dB): 10Hz – 50kHz
S+N/N Ratio: >100dB (IEC “A”)
DSD Rates Supported: Windows DSD64, DSD128, and DSD256, MAC OS DSD64 and DSD128

ATC SIA2-100 detail

ATC SIA2-100 and CD2 press release ATC SIA2-100 and CD2 brochure ATC SIA2-100 and CD2 user manual
CD2 & SIA2-100
Press release Brochure User manual
