XAVIAN XN 270 Evoluzione

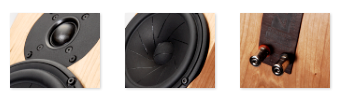

XAVIAN XN 270 Evoluzione pictures XAVIAN XN 270 Evoluzione binding posts detailXAVIAN XN 270 Evoluzione midbass detail XAVIAN XN 270 Evoluzione tweeter detail
2980 > €1980
mint condition open box
XAVIAN XN 270 Evoluzione - HiFi Test (Germany) review XAVIAN XN 270 Evoluzione - hifi.nl (Netherlands) review
XAVIAN XN 270 Evoluzione - Stereo & Video (Czech) review XAVIAN XN 270 Evoluzione - LP (Germany) review
XAVIAN XN 270 Evoluzione - Positive Feedback (USA) review XAVIAN XN 270 Evoluzione - Hi-Fi y Hi End (Spain) review
  • Tweeter: 29 mm Scan-Speak Classic that uses the low-distortion motor system of the Revelator tweeters, impregnated fabric soft dome, no ferrofluid
  • Midbass: 180 mm Scan-Speak Revelator, sliced paper membrane, low-distortion "motor"
  • Crossover: first order - audiophile passive components; the impedance is linear for a stable resistive load
  • Cabinet: 30 mm MDF, handcrafted; the whole cabinet structure is braced with a shaped 22 mm thick panel

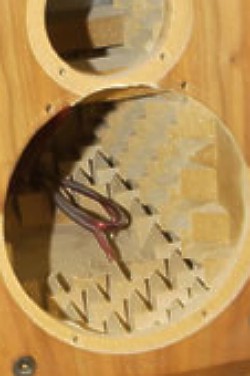

  • Cabinet damping: (1)foam + (2)bituminous boards + (3)pyramids to break up internal standing waves
  • Terminals: WBT 0730.12 Signature Platinum

XN 270 Evoluzione

With a decade of experience building the well known XN270, we have developed an enviable mastery about how a top-class closed cabinet can perform. We are proud to introduce the new Evoluzione version, based on the original conception. XN 270 Evoluzione uses only Scan-Speak Revelator drivers matched together by a real first order crossover. Each detail has been treated with the highest possible care: the cabinet is hand-made using 30 mm thick MDF and the whole cabinet structure is braced with a shaped 22 mm thick panel. The internal walls are damped with foam, bituminous boards and pyramids to break up internal standing waves, terminals are the well known WBT 0730.12 Signature Platinum, the crossover uses only audiophile passive components and the impedance is linear for a stable resistive load. The new XN 270 Evoluzione represents the pure fulfillment of Roberto Barletta´s dream about how a fine audiophile speaker should sound.

Dedicated stands:

XAVIAN New Metallico stand XAVIAN New Classico stand
New Metallico Stand New Classico Stand
Specifications
Mid-bass frequency unit
150 mm Scan-Speak Revelator, paper membrane, low-distortion "motor", 38 mm voice coil
High frequency unit
29 mm Scan-Speak impregnated fabric soft dome, low-distortion "motor", no ferrofluid
System type
damped closed cabinet
Bass-reflex type
solid aluminium, 4 mm thick
Internal damping
foam + composite bituminous "sandwich" + foam pyramids
Loading volume of air
15 litres
System resonance
57 Hz
Cabinet
30 mm MDF, handcrafted
Binding posts
WBT 0730.12 Signature Platinum
Internal connections
handmade soldering
Cable for mid-woofer
XAVIAN Super Lineare
Cable for tweeter
XAVIAN Super Lineare
Inductors
air-wounded on all sections, tollerance 3%
Capacitors
metallized hi-current polypropylene on all sections, tollerance 5%
Drivers mounting
thread mounted on front panel, high grade Xavian metric screws
Frequency response
( -3 dB on reference axis ): 42 - 32000 Hz
Nominal impedance
6 ohms (compensated and linearized from 200 Hz to 10 kHz)
Minimal impedance
5,5 ohms at 150 Hz
Maximal impedance
26 ohms at 1800 Hz
Maximal electrical phase
+ 7 degrees ( 200 - 20000 Hz )
Total harmonic distortion
< 0,9% ( 100 - 20000 Hz )
Crossover frequency
2200 Hz
Low-pass filter
first order
High-pass filter
first order
Sensitivity ( 2,83V / 1m )
87 dB
Recommended power amplification
40 - 150 W
Dimensions (HxWxD)
345 x 210 x 360 mm
Net weight (1 unit)
13 kg
Finishes
cherry, maple, walnut, nero, bianco real wood

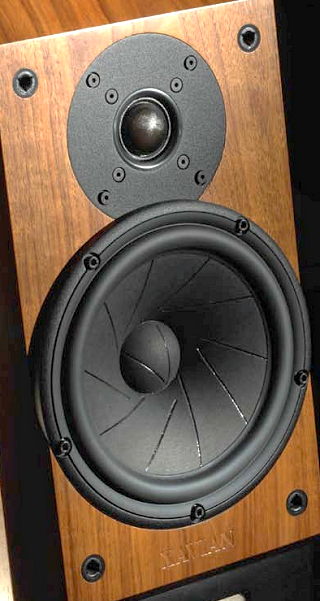

XAVIAN XN 270 Evoluzione drivers



Treble Unit

29 mm Scan-Speak Classic, impregnated fabric soft dome, low-distortion "motor" from the Revelator tweeters:

- 1" Textile Dome Diaphragm
- Patented Symmetrical Drive (SD-2) "motor"
- Frequency Extension to above 30KHz
- Low Resonance Rear Chamber
- Black Painted Alu Face Plate
- No ferrofluid



Midbass Unit

180 mm Scan-Speak Revelator, sliced paper membrane, low-distortion "motor":

- Sliced paper cone technology, for dramatically reduced breakup modes in the diaphragm
- Patented Symmetrical Drive (SD-1) "motor"
- Scan-Speaks Low-loss Linear Suspension
- Die-cast Alu chassis, vented below spider
- Clear midrange and overall smooth frequency response characteristics

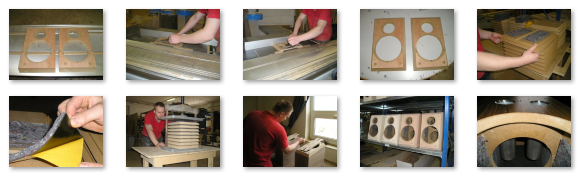

Cabinet technology
XAVIAN Cabinet technology mix
XAVIAN Cabinet technology mix 3
