ELAC Carina FS 247.4

AudioStereo logo
ELAC Carina FS 247.4 satin black finish

1996

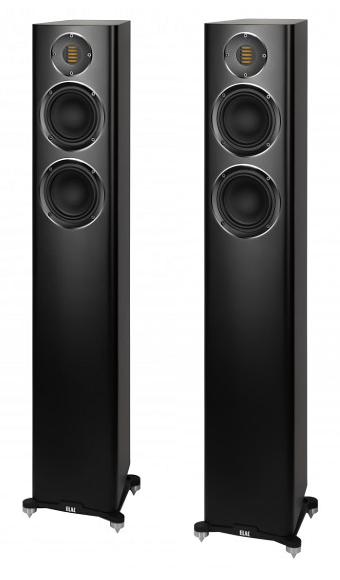

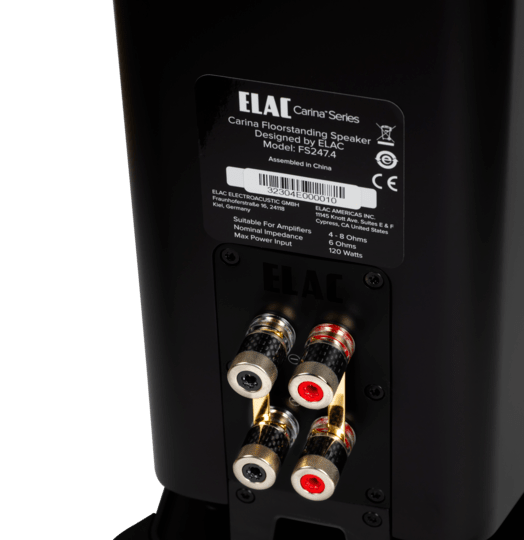

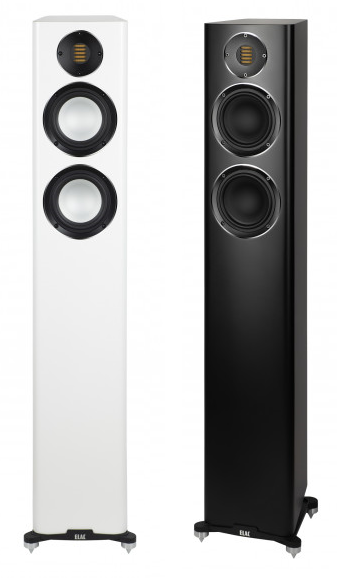

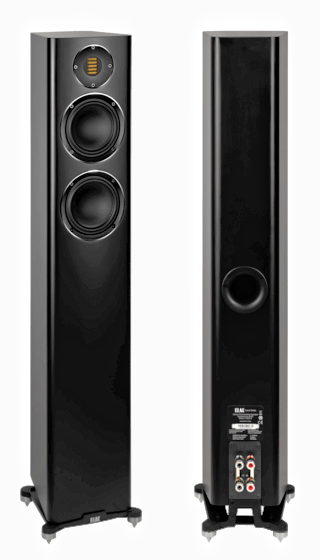

ELAC CARINA fS 247.4 satin black pair ELAC CARINA fS 247.4 satin white & satin black ELAC CARINA fS 247.4 satin black pair ELAC CARINA fS 247.4 satin black back
  • Compound Curvature Aluminum Woofer : two woofers with large diameter voice coil and over-sized vented pole piece magnet for remarkable bass dynamics and a rich powerful performance
  • JET : Folded Air-Motion-Transformer Tweeter

The Carina Floorstand Speaker

Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated multi-element xover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class-leading reputation.

Specifications
Dimensions H × W × D
1070 × 216 × 245 mm
Weight
16,4 kg
Principle
2½-ways, bass reflex
Woofer
2 × 150 mm Aluminum cone
Tweeter
1 × JET folded ribbon
Recom. Amplifier Power
at Nominal Impedance
30-200 W / channel
Crossover Frequency
1,000 / 3,000 Hz
Sensitivity
87 dB / 2.83 V / 1 m
Nominal Impedance
6 Ohm
Minimum Impedance
4.8 Ohm
Frequency Range
acc. to IEC 268-5
34 ··· 30,000 Hz
Peak Power Handling
120 W
Finishes
Satin Black, Satin White
ELAC Carina Series brochure ELAC Carina Series manual
Brochure Manual


CARINA Series Features:

ELAC CARINA Series Speakers - JET Folded Air-Motion-Transformer
JET Folded Air-Motion-Transformer

Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.



ELAC CARINA Series Speakers - Compound Curvature Aluminum Woofer
Compound Curvature Aluminum Woofer

To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.



ELAC VELA Series Speakers - Downward Firing Port
Downward Firing Port

For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.
