ELAC Carina BS 243.4

AudioStereo logo

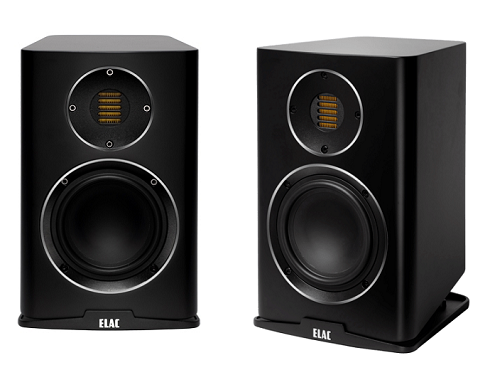

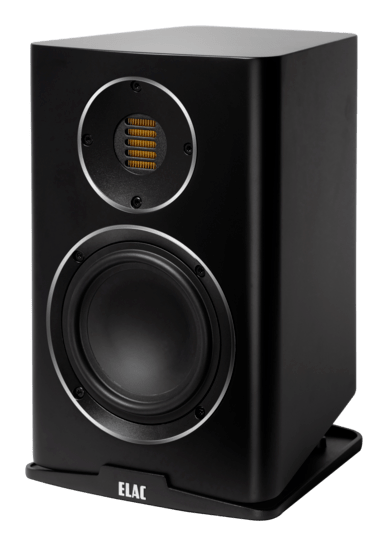

ELAC Carina BS 243.4 satin black finish

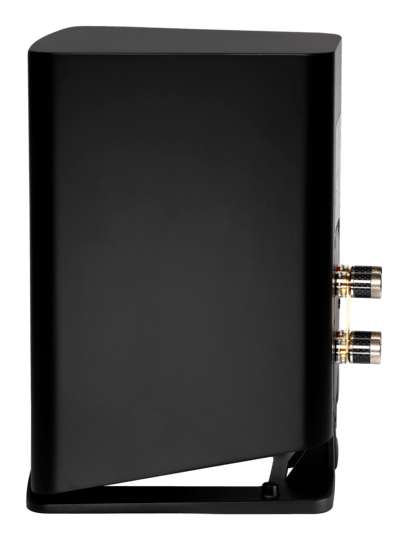

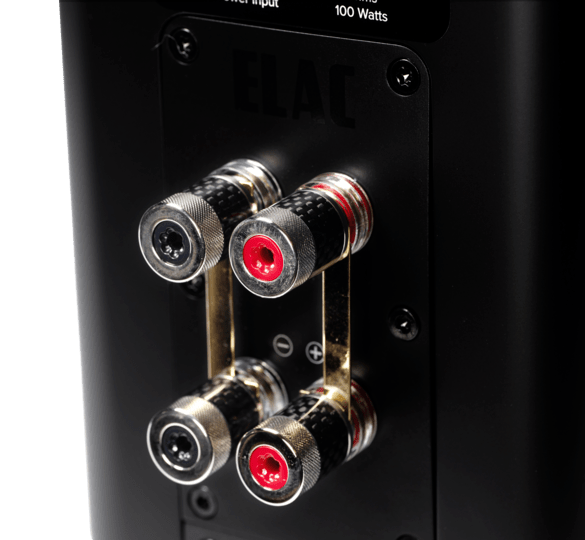

ELAC CARINA BS 243.4 satin black side left ELAC CARINA BS 243.4 satin black side right ELAC CARINA BS 243.4 satin black side ELAC CARINA BS 243.4 satin black back

996

HiFi Journal magazin
Magazine 02/2020

ELAC Carina BS 243.4: Price / performance: "Top product"

Plus: chic design; very good workmanship; good spatial representation; strong mids; excellent bass.


  • Compound Curvature Aluminum Woofer : large diameter voice coil and over-sized vented pole piece magnet woofer for remarkable bass dynamics and a rich powerful performance
  • JET : Folded Air-Motion-Transformer Tweeter

The Carina Bookshelf Speakers

Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated multi-element xover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.

Specifications
Dimensions H × W × D
319 × 216 × 245 mm
Weight
6,7 kg
Principle
2-ways, bass reflex
Woofer
1 × 150 mm Aluminum cone
Tweeter
1 × JET folded ribbon
Recom. Amplifier Power
at Nominal Impedance
30-150 W / channel
Crossover Frequency
2,700 Hz
Sensitivity
85 dB / 2.83 V / 1 m
Nominal Impedance
6 Ohm
Minimum Impedance
4.8 Ohm
Frequency Range
acc. to IEC 268-5
46··· 30,000 Hz
Peak Power Handling
100 W
Finishes
Satin Black, Satin White
ELAC Carina Series brochure ELAC Carina Series manual
Brochure Manual


CARINA Series Features:

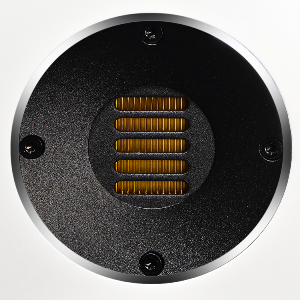

ELAC CARINA Series Speakers - JET Folded Air-Motion-Transformer
JET Folded Air-Motion-Transformer

Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

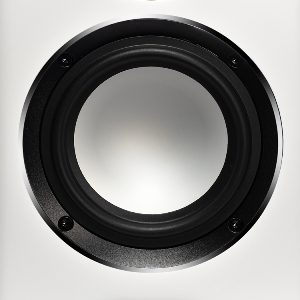

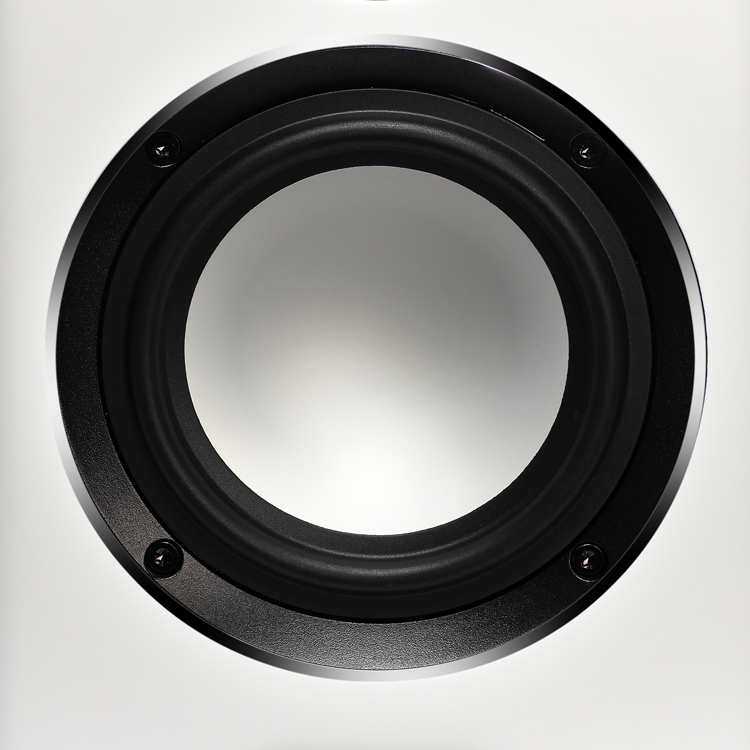

ELAC CARINA Series Speakers - Compound Curvature Aluminum Woofer
Compound Curvature Aluminum Woofer

To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.

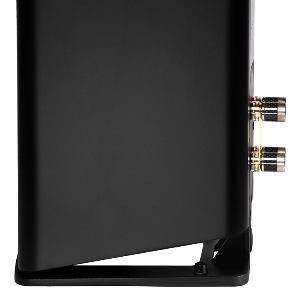

ELAC VELA Series Speakers - Downward Firing Port
Downward Firing Port

For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.




ELAC CARINA BS 243.4 Stereo Setup ELAC BS 403 Stereo Setup
ELAC Element EA101EQ-G Cyrus 6a DAYENS Menuetto Integrated Amplifier DAYENS Ecstasy III Integrated Amplifier
EA101EQ-G Cyrus 6a
