ELAC Concentro S 509

AudioStereo logo

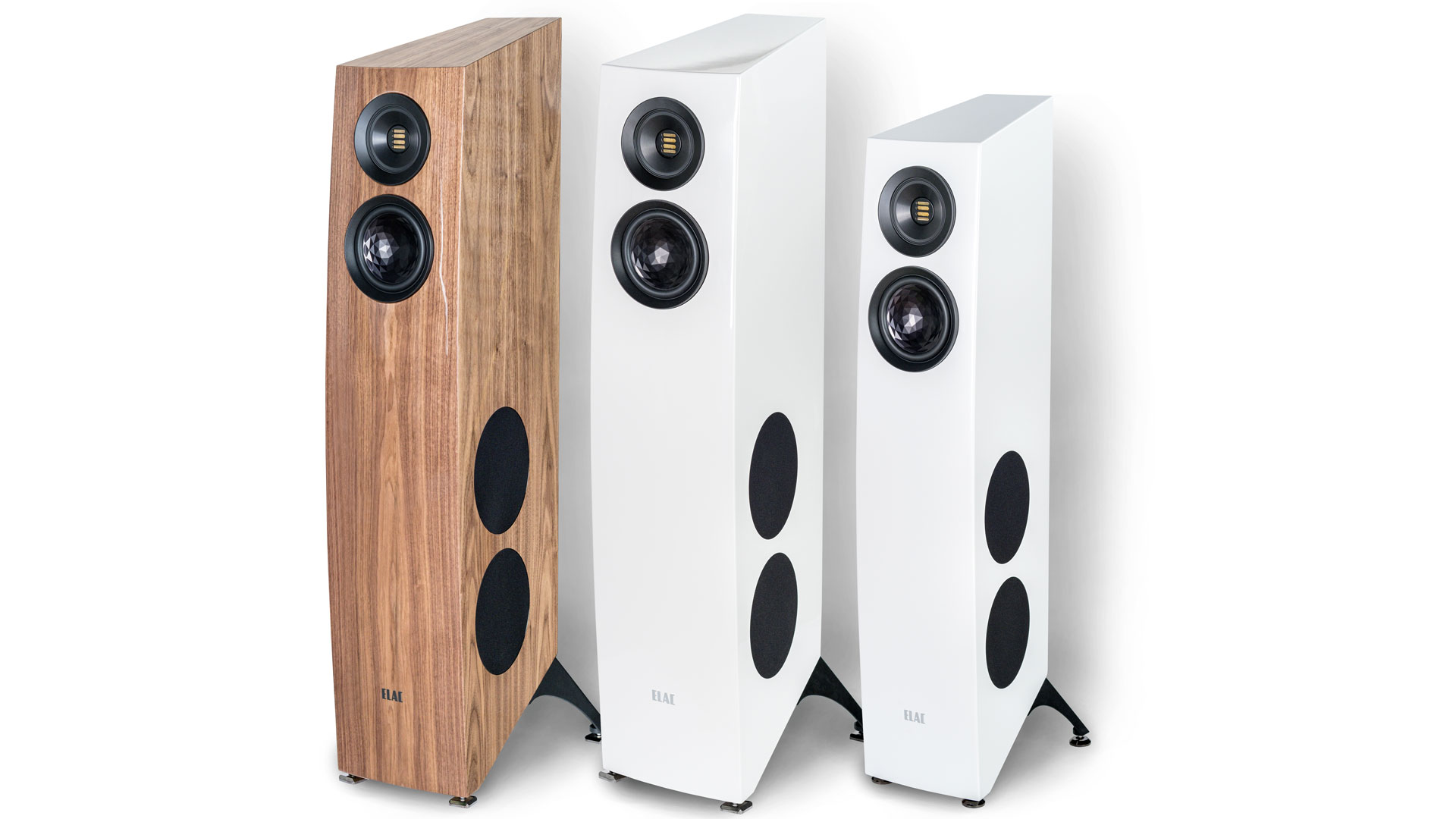

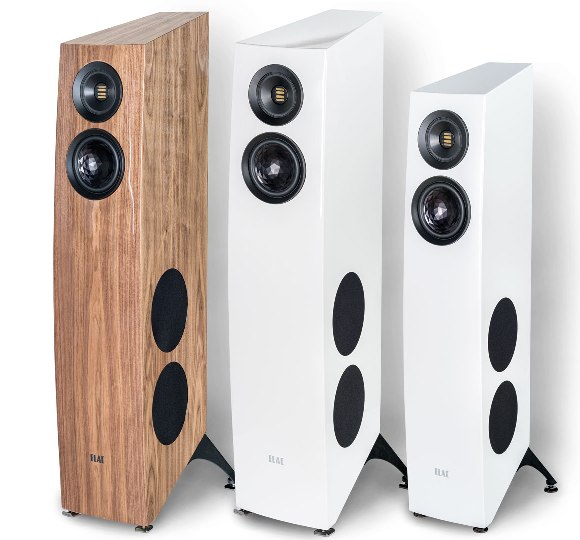

ELAC Concentro S 509 and S 507 black and white high gloss finish
ELAC Concentro S 509 detail 1 ELAC Concentro S 509 detail 5
ELAC Concentro S 509 detail 1

16000

  • Four powerful side-firing long-throw woofers: ensure effortless performance. The special ICD confi guration (Impluse Compensated Design) guarantees contoured bass reproduction free of any coloration due to unwanted mechanical vibrations.
  • stepX-JET: Innovative concentric chassis built around a new JET 5c tweeter and a midrange driver with an aluminum membrane. Exchangeable DCRs (Directivity Control Ring) to tailor the directional characteristics in the mid-frequency range to conditions in the listening area (three aluminum DCRs are included as standard)
  • JET 5c Tweeter: lightning-fast response and wide dynamic range

Concentro S 509: High-End on High Heels

The dream that inspires. The idea that turns it into reality. The passion for detail that creates something truly special: the ELAC Concentro S 509 is a piece of master craftsmanship, conceived to celebrate music with all senses.

Specifications
Dimensions H × W × D
1320 × 325 × 460 mm
with spikes and base plinth
Weight
42.8 kg
Principle
4 ways, bass reflex
Woofers
4 × 180 mm Ø AS cone
Midrange
1 × 50 mm / 130 mm Ø AL cone ring radiator
Tweeter
1 × JET 5c
Crossover Frequency
120 / 400 / 2,600 Hz
Sensitivity
88 dB / 2.83 V / 1 m
Nominal Impedance
4 Ohm
Minimum Impedance:
3.2 Ohms @ 360 Hz
Crossover Frequency
120 / 400 / 2,700 Hz
Frequency Range acc. to IEC 268-5
22 ··· 50,000 Hz
Nominal / Peak Power Handling
280 / 340 W
Finishes
Black High Gloss, White High Gloss, Walnut High Gloss
ELAC Concentro S 509 brochure

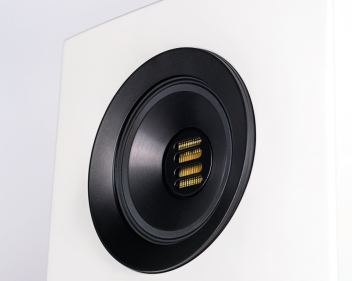

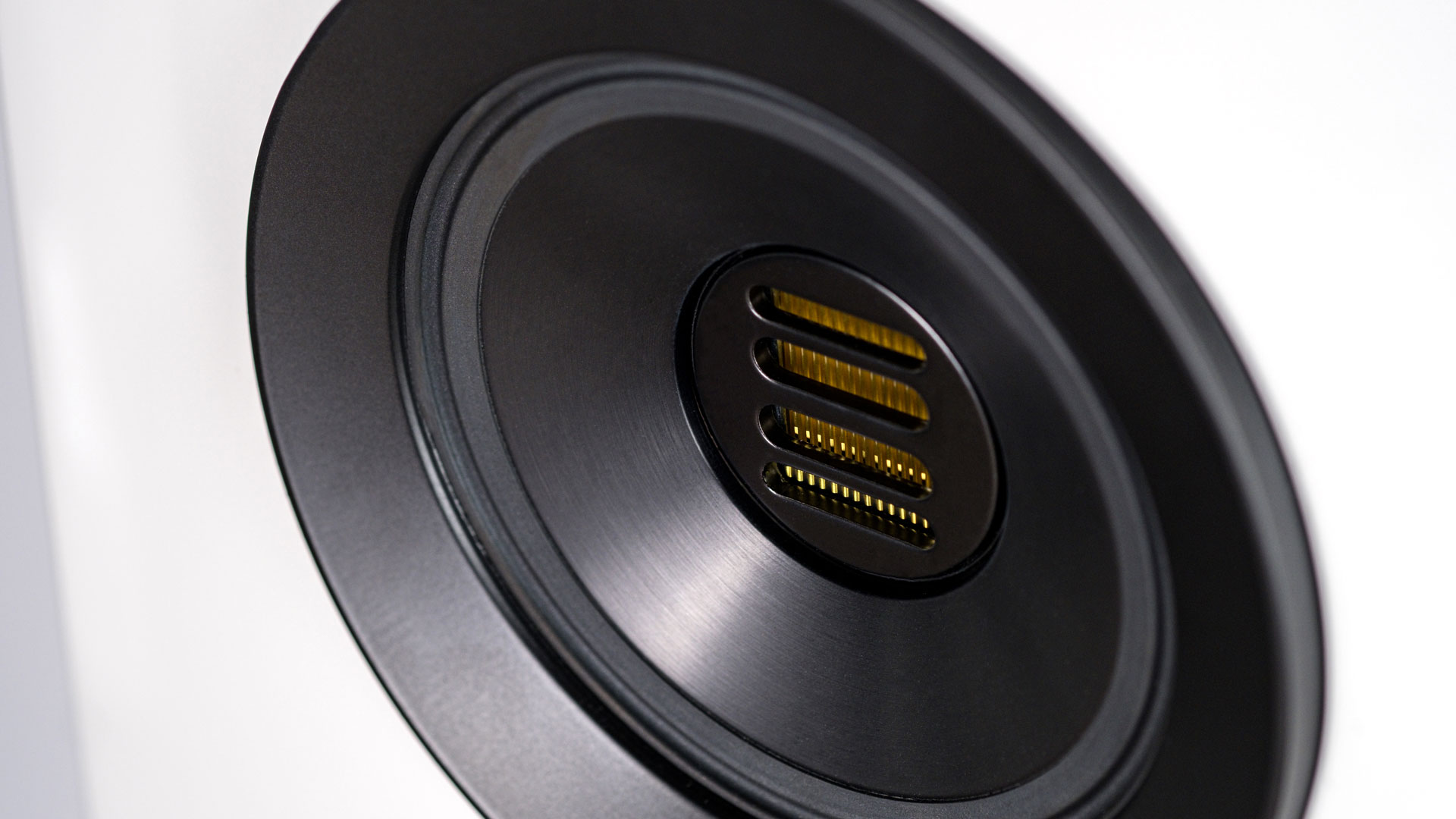

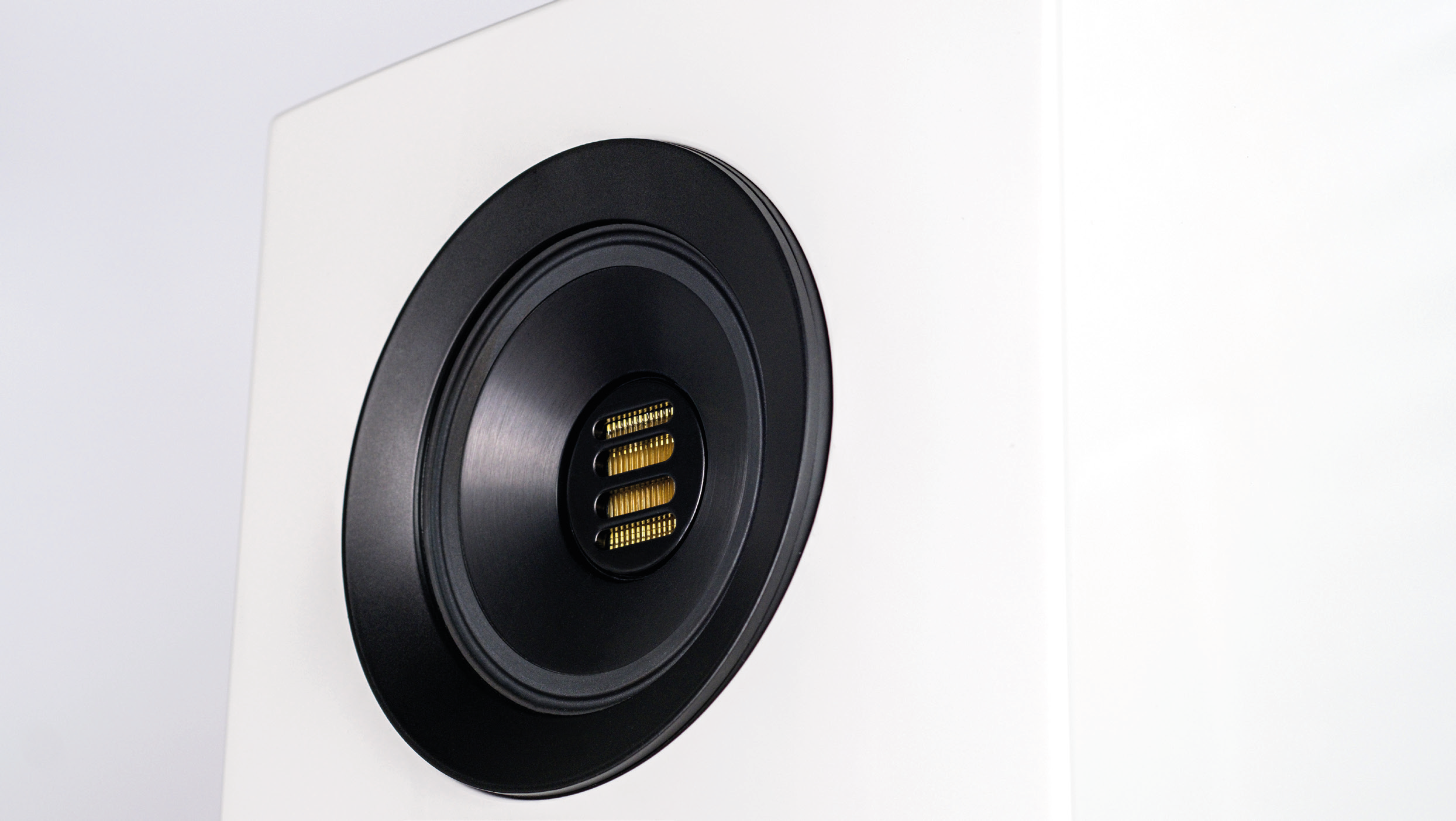

stepX-JET coaxial Midrange-Treble Driver System

The innovative stepX-JET features a concentric chassis built around a new JET 5c tweeter and a midrange driver with an aluminum membrane. A patented technology uses exchangeable DCRs (Directivity Control Ring) to tailor the directional
characteristics in the mid-frequency range to conditions in the listening area. The different DCRs (three aluminum DCRs are included as standard) are used to influence the relationship between direct and diffuse sound in the listening area.

  ELAC Concentro S 509 - stepX-JET coaxial Midrange-Treble Driver System

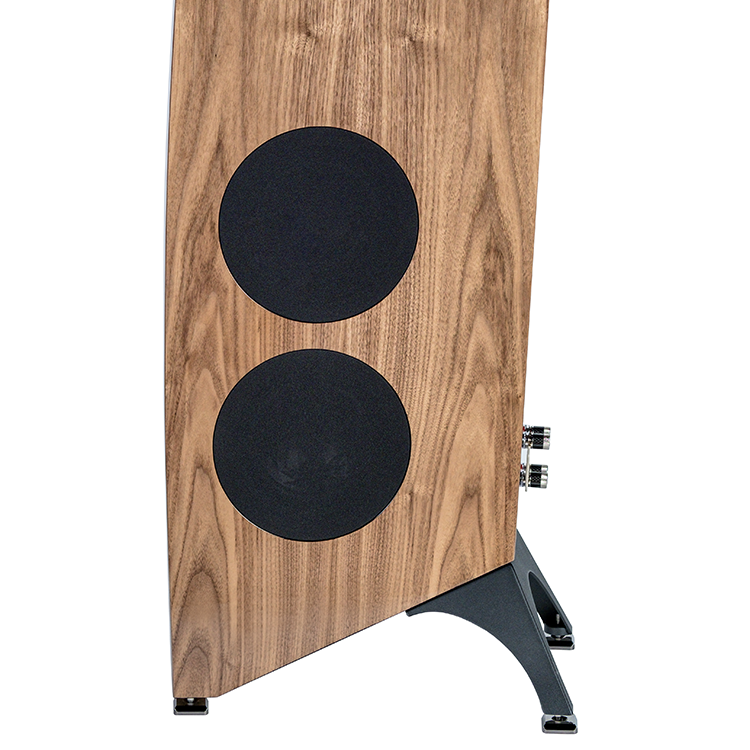

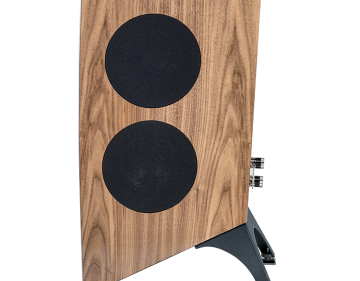

Side-firing long-throw woofers

Four powerful side-firing long-throw woofers ensure effortless performance. The special ICD configuration (Impluse Compensated Design) guarantees contoured bass reproduction free of any coloration due to unwanted mechanical vibrations. Put simply, the Concentro S 509 will satisfy the most discerning listeners by reproducing audio signals to perfection across the entire frequency spectrum and at all volumes.

  ELAC Concentro S 509  - Side-firing long-throw woofers

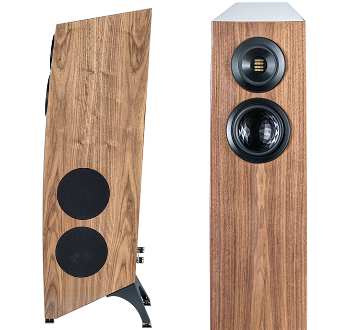

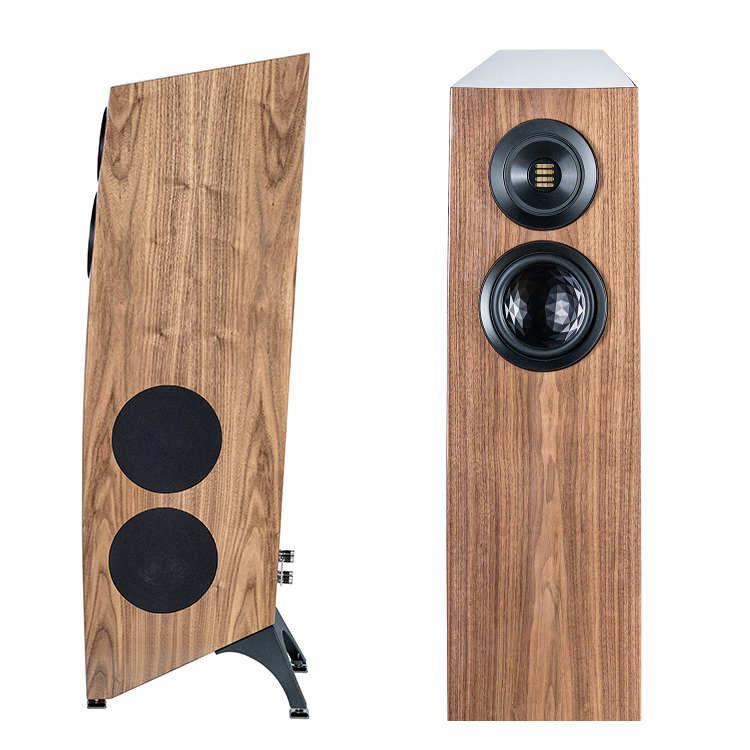

Striking exterior

Its exterior is a perfect symbiosis of the extravagant design of the Concentro and the clean lines of the VELA Series. The trapezoid basic shape, wraparound baffle, and gently angled cabinet combine to convey a natural, low-key appearance. The striking bottom assembly achieves a ‘high-heel’ effect, imparting a sense of elegance and stability. Incidentally, it also guarantees an exceptionally sound footing.

  ELAC Concentro S 509 - Striking exterior
