ELAC VELA FS 409

AudioStereo logo

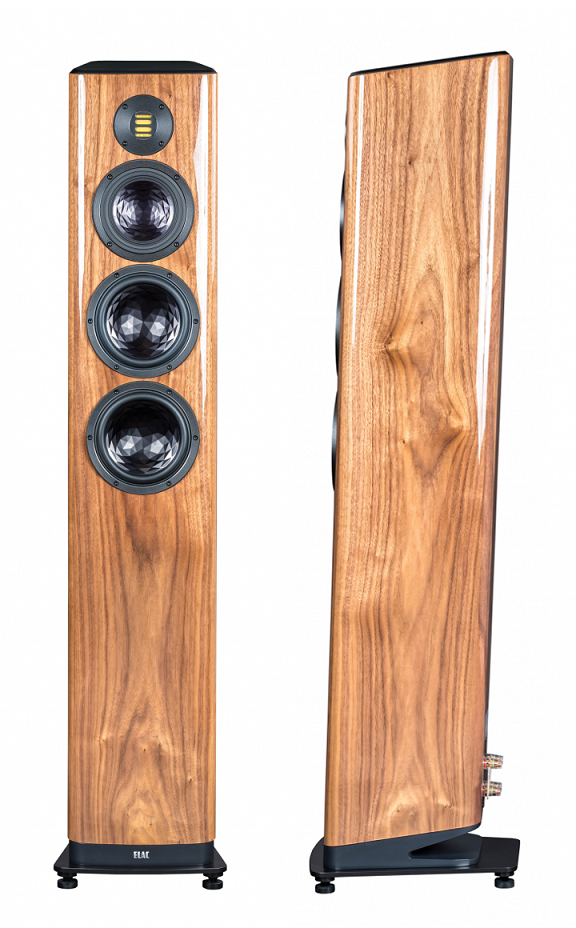

ELAC VELA FS 409 walnut high gloss finish

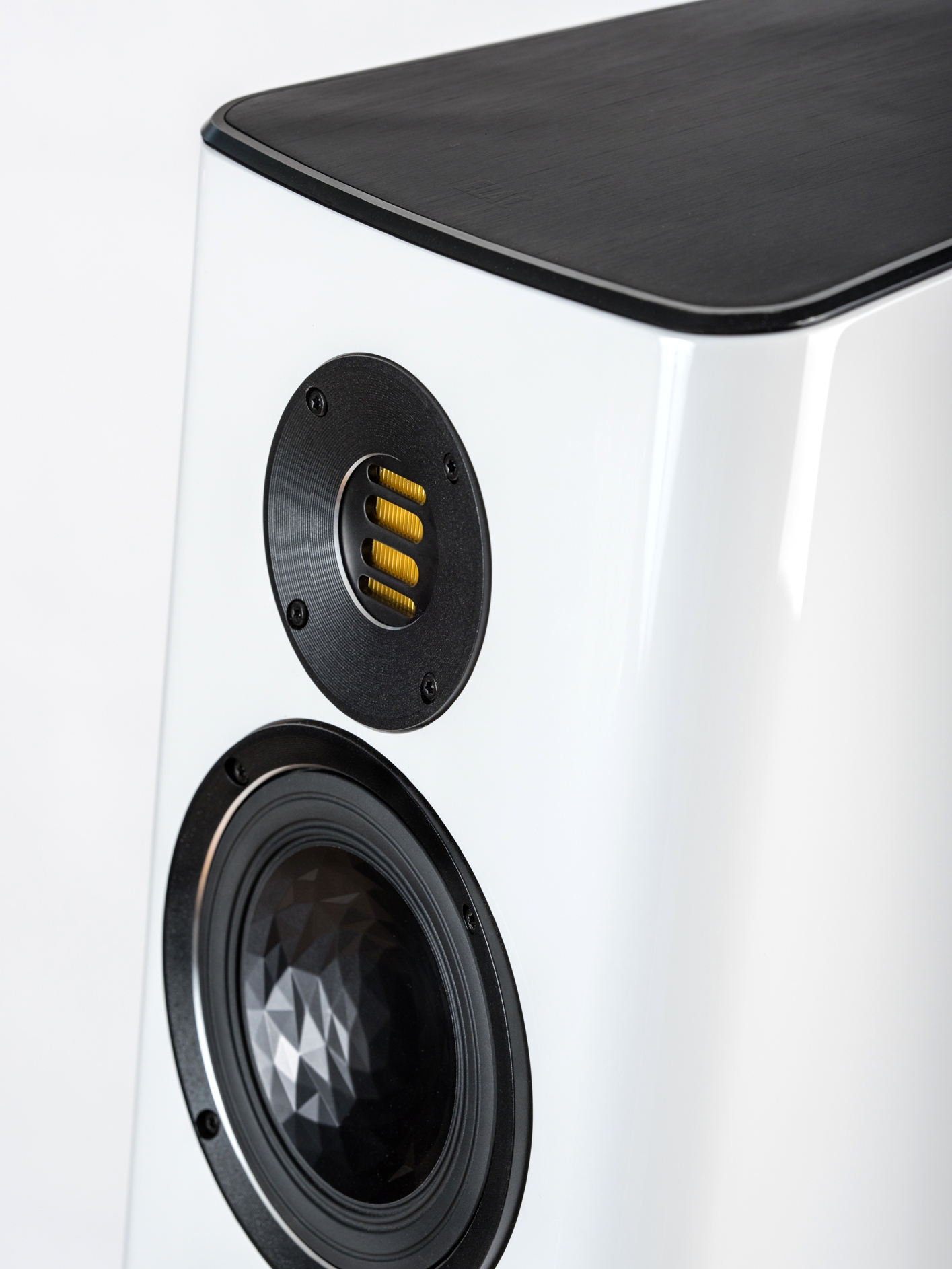

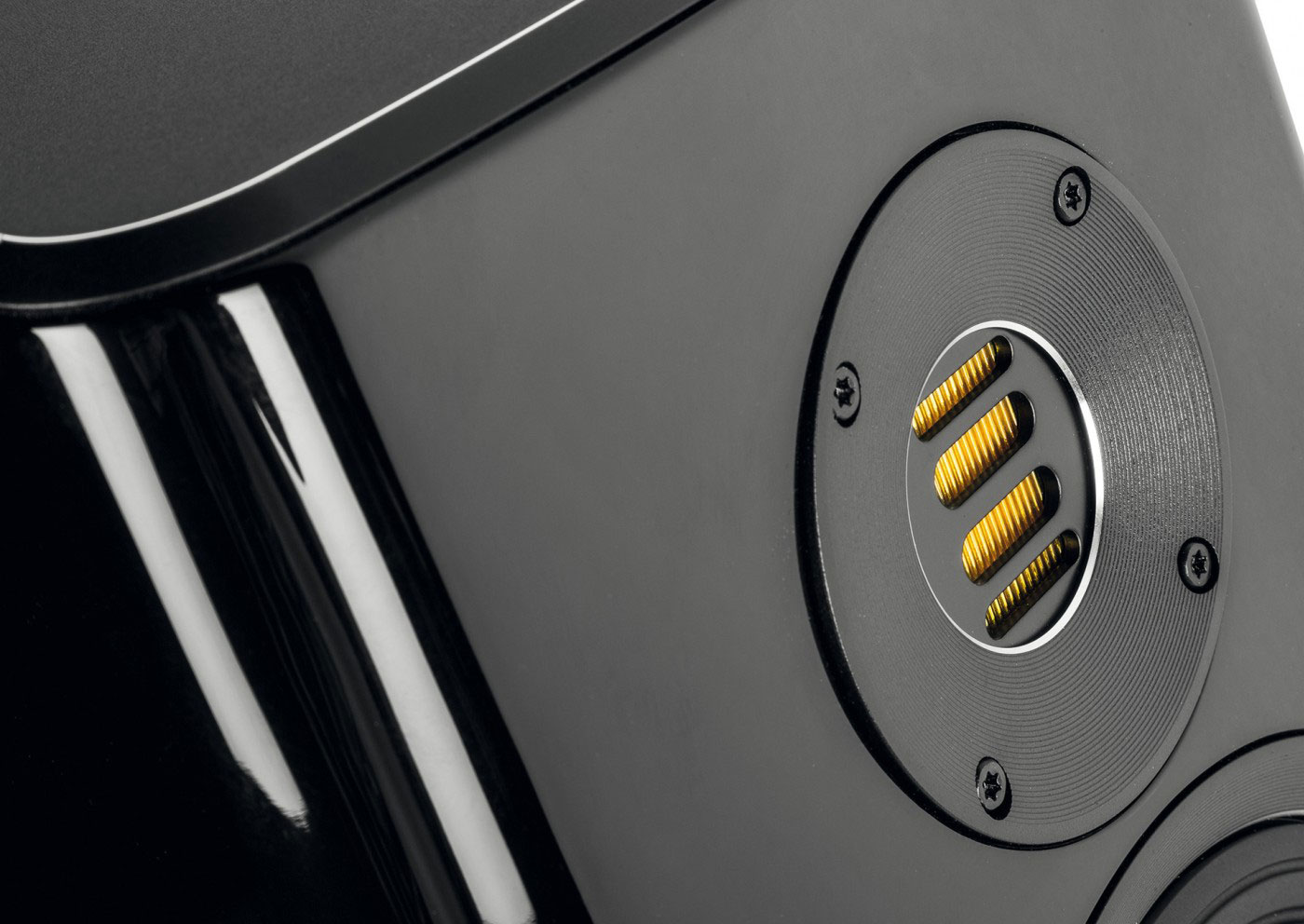

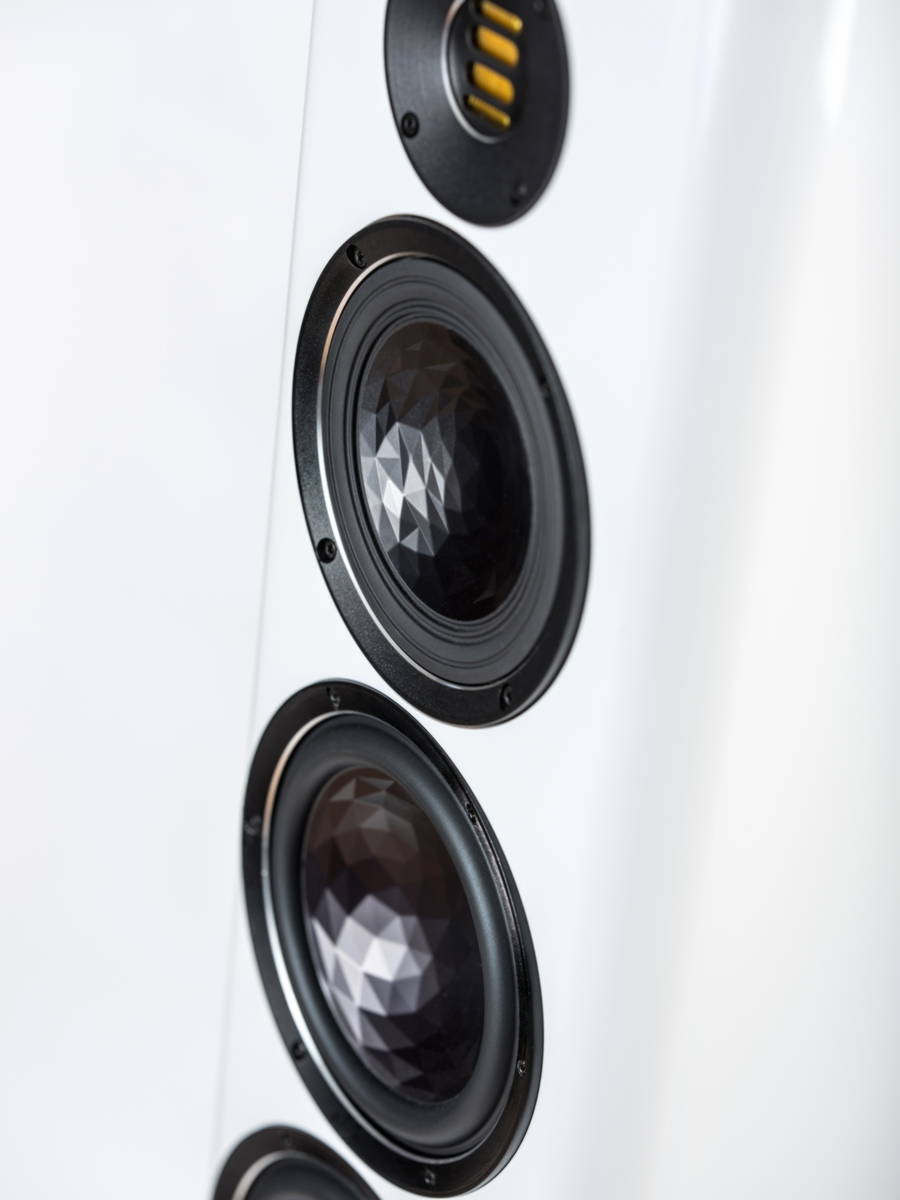

ELAC VELA FS 409 white high gloss drivers 1 ELAC VELA FS 409 white high gloss drivers 2 ELAC VELA FS 409 black high gloss jet v detail

6380

  • TT180AS-XR: difuzoare bass cu membrane sandwich hartie-aluminiu "Crystal"
  • MT150AS-XR: difuzor medii cu membrana sandwich hartie-aluminiu "Crystal"
  • JET V: tweeter cu tehnologie Air-Motion-Transformer (folded foil)



Specifications
Dimensions H × W × D
1307 × 276 × 332 mm
Weight
32,1 kg
Principle
3½-ways, bass reflex
Woofer
2 × 180 mm ØAS-XR cone (mag. shielded)
Midrange
1 × 140 mm Ø AS-XR cone
Tweeter
1 × JET V (mag. shielded)
Recom. Amplifier Power
at Nominal Impedance
40-450 W / channel
Crossover Frequency
140/ 360 / 2,700 Hz
Sensitivity
89 dB / 2.83 V / 1 m
Nominal Impedance
suitable for amplifiers (from ... to)
4 Ohm
4 ... 8 Ohm
Minimum Impedance
3.4 Ohm / 105 Hz
Frequency Range acc. to IEC 268-5
28··· 50,000 Hz
Nominal / Peak Power Handling
200 / 280 W
Finishes
Black High Gloss, White High Gloss, Walnut High Gloss
